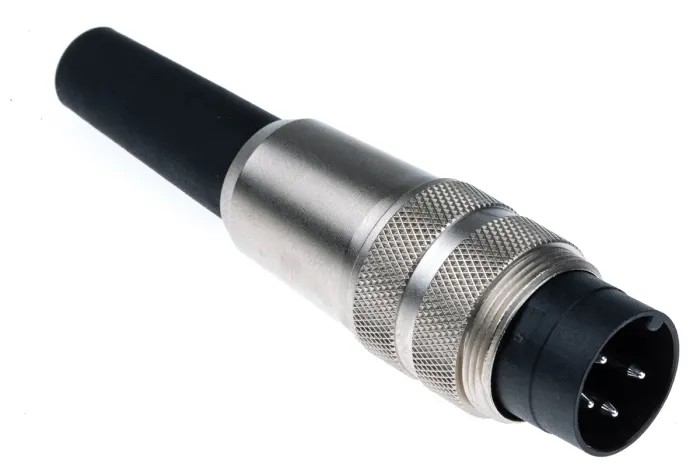

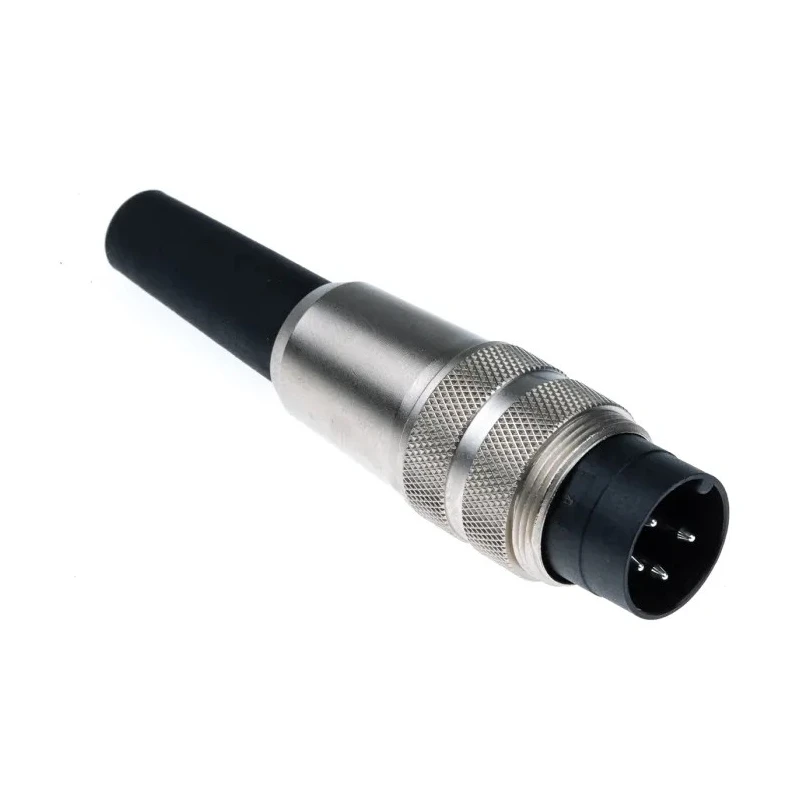

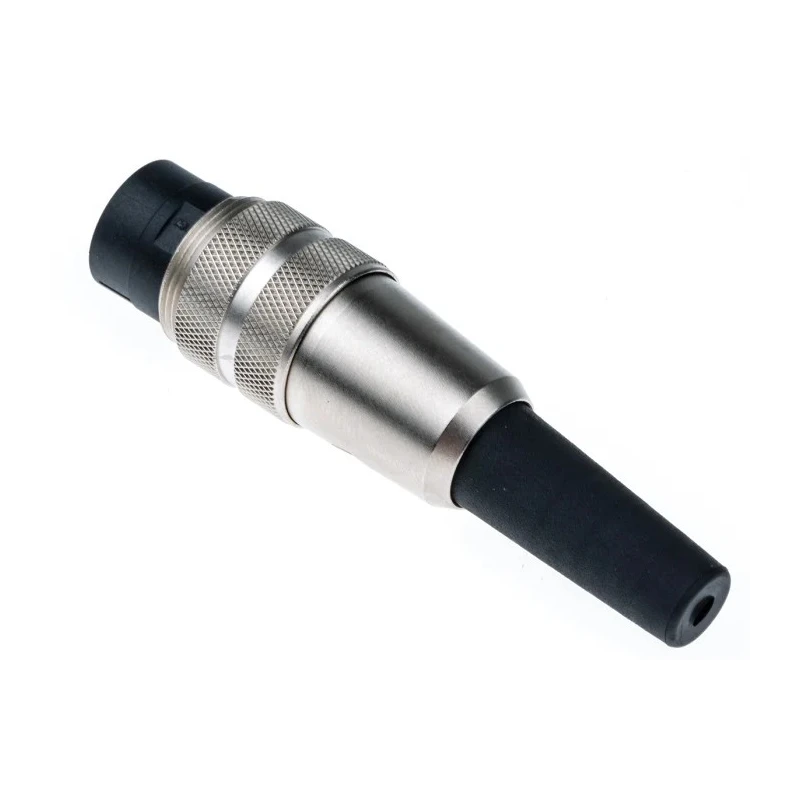

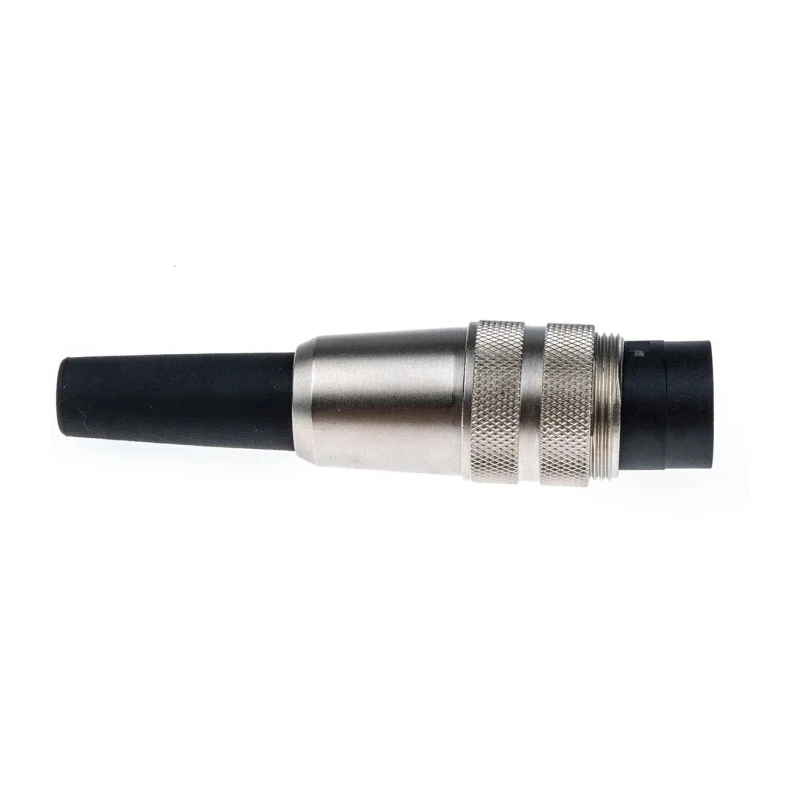

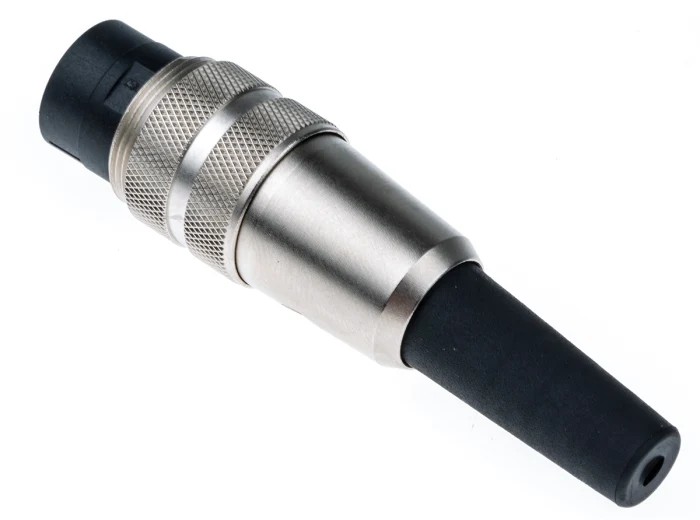

binder Circular Connector 4 Contacts Cable Mount M16 Plug Male IP40 680 Series 09-0309-00-04
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | binder |
| Orientation | Straight |
| Current | 6A |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | 680 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 4 |
| Contact Plating | Silver |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shell Size | 18.5 mm |
| Mating Type | Screw |
| Connector Size | M16 |
| Plug/Socket | Plug |
Key Features
- This connector has 4 solder-terminated contacts for reliable electrical connections.
- Constructed with brass contacts plated in silver for enhanced conductivity.
- Rated for 6 A current and 250 V voltage in control and signal circuits.
- Operating temperature ranges from -40°C to 85°C for varied environmental conditions.
- Features a screw mating type with a straight orientation for secure engagement.
- Housing made of durable polyamide provides mechanical strength and insulation.
- Shell diameter measures 18.5 mm, suitable for M16 panel cut-outs.
- Designed for sensor and actuator cabling in automation and industrial instrumentation.
Product Description
binder 09-0309-00-04 Circular Connector is a cable-mounted plug featuring 4 contacts with solder termination. It is engineered for industrial applications requiring a compact M16 size, 6 A current capability, and 250 V voltage rating, with IP40 protection.
The connector features a straight orientation and secure screw-type mating mechanism facilitating firm connections in industrial electrical and automation systems. Its housing is composed of robust polyamide material, offering insulation and resistance in demanding environments.
The silver-plated brass contacts ensure excellent electrical conductivity and stability, while the connector supports operating temperatures from -40°C to 85°C, enabling use in a variety of temperature conditions.
This Circular Connector is widely applicable in sensor and actuator cabling, control cabinet assemblies, and industrial instrumentation setups. It is particularly suited to automation systems and low-power control devices requiring reliable four-conductor connections.
4 solder-terminated contacts provide stable electrical joints. Brass contacts plated in silver for enhanced conductivity. Rated for 6 A current and 250 V voltage applications. Operating temperature range from -40°C to 85°C.
Screw mating type ensures tight, secure connections. Durable polyamide housing suitable for industrial environments. Shell size of 18.5 mm fits M16 panel cut-outs. Designed for sensor and actuator cabling in automation systems.
Suitable for control cabinet harness interconnects and low-power field wiring. This product supports industrial, automation, electronic component manufacturing, and instrumentation use cases.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 6 A and a voltage of 250 V, making it suitable for control and signal circuits.
The operating temperature range is from -40°C to 85°C, allowing for use in various environmental conditions.
It features 4 solder-terminated contacts, which provide reliable electrical connections.
This connector has an IP40 rating, indicating it is protected against solid objects larger than 1 mm but not against water.
The contacts are made of brass and are plated in silver to enhance conductivity.
The shell diameter measures 18.5 mm, which is suitable for M16 panel cut-outs.
It features a screw mating type, ensuring a tight and secure connection.
The housing is made of durable polyamide, providing mechanical strength and insulation.
It is designed for sensor and actuator cabling, control cabinet assemblies, and industrial instrumentation setups.
This model has a straight orientation, facilitating easy installation in various setups.
The country of origin for this connector is Germany.
This is a cable-mounted male plug connector from the 680 series.
