TDK 2.2 nF Multilayer Ceramic Capacitor 630V DC ±10 % Tolerance Surface Mount 1206 Package CGA5H4X7R2J222K115AA

Free Delivery in India | Lowest Global Shipping Charges

TDK 2.2 nF Multilayer Ceramic Capacitor 630V DC ±10 % Tolerance Surface Mount 1206 Package CGA5H4X7R2J222K115AA



Category Electronic Components Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	630V dc
Brand	TDK
Height	1.15mm
Length	3.2mm
Model	CGA5H4X7R2J222K115AA
Packaging	Tape & Reel
Width	1.6mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	2.2nF
Minimum Operating Temperature	-55°C
Package/Case	1206
Dielectric	X7R
Automotive Standard	AEC-Q200
Suppression Class	Class II

Key Features

Capacitance of 2.2 nanofarads with ±10% tolerance ensures precise electrical performance.
Rated for a maximum DC voltage of 630 volts with X7R dielectric class.

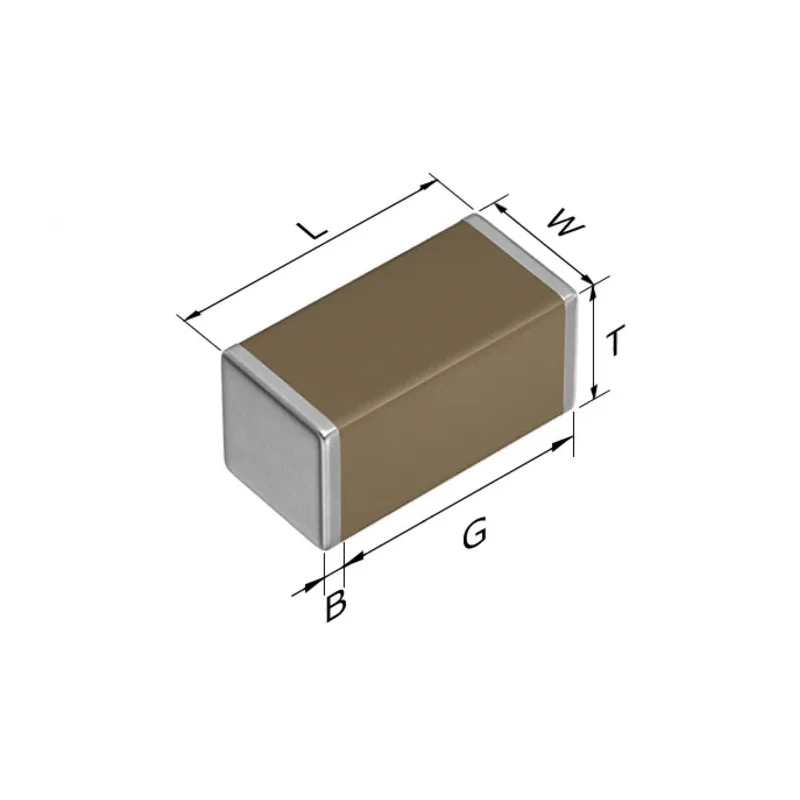

Compact 1206 package size with length 3.2 mm, width 1.6 mm, and height 1.15 mm.
Surface mount type with tape and reel packaging for automated assembly.
Automotive grade certified to AEC-Q200 standards.
Operating temperature range from -55°C to 125°C suited for harsh environments.
Low residual inductance for superior high frequency characteristics.
Applied in decoupling, smoothing, and snubber circuits especially in HEVs and EVs.

Product Description

TDK CGA5H4X7R2J222K115AA is a high-quality 2.2 nF multilayer ceramic capacitor designed for robust surface mount electronic applications. It features a voltage rating of 630V DC and operates reliably within a temperature range of -55°C to 125°C. The capacitor utilizes an X7R dielectric which provides excellent stability and capacitance retention over varying temperatures.

Compactly packaged in a 1206 case size, measuring 3.2 mm in length, 1.6 mm in width, and 1.15 mm in height, this capacitor is suitable for automated pick-and-place assembly lines with tape and reel packaging. Its surface mount termination type ensures compatibility with modern PCB manufacturing processes.

This automotive-grade component complies with AEC-Q200 standards, making it reliable for use in electric and hybrid vehicle power modules. Its low residual inductance supports superior frequency performance, essential for decoupling, smoothing, and snubber circuits in inverters and DC-DC converters.

The capacitor is effective in countering voltage surges and noise in connectors, improving system stability in demanding industrial and automotive electronic systems. Precision capacitance of 2.2 nF with ±10% tolerance. Voltage rating of 630V DC suitable for high voltage applications.

Utilizes stable X7R dielectric material. Standard 1206 package size for ease of mounting. Compliance with automotive AEC-Q200 standards. Wide operating temperature from -55°C to 125°C. Surface mount termination technology.

Low residual inductance for enhanced RF characteristics. Applications include HEVs, EVs, and power electronics circuits.

This capacitor is ideal for industrial, automotive, and advanced electronic manufacturing that demands precision multilayer ceramic capacitors. For more products like this, explore the extensive TDK capacitor range and other Electronic Components on EnvMart.
