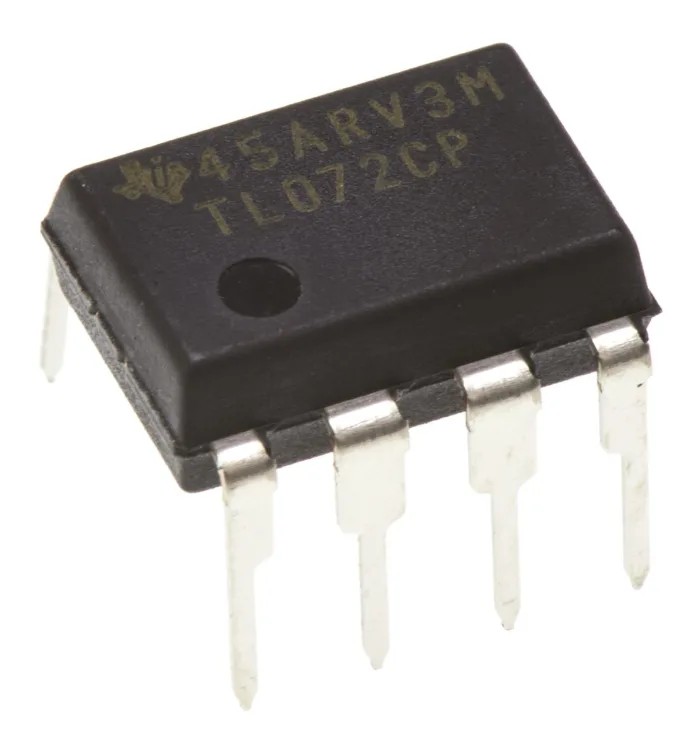

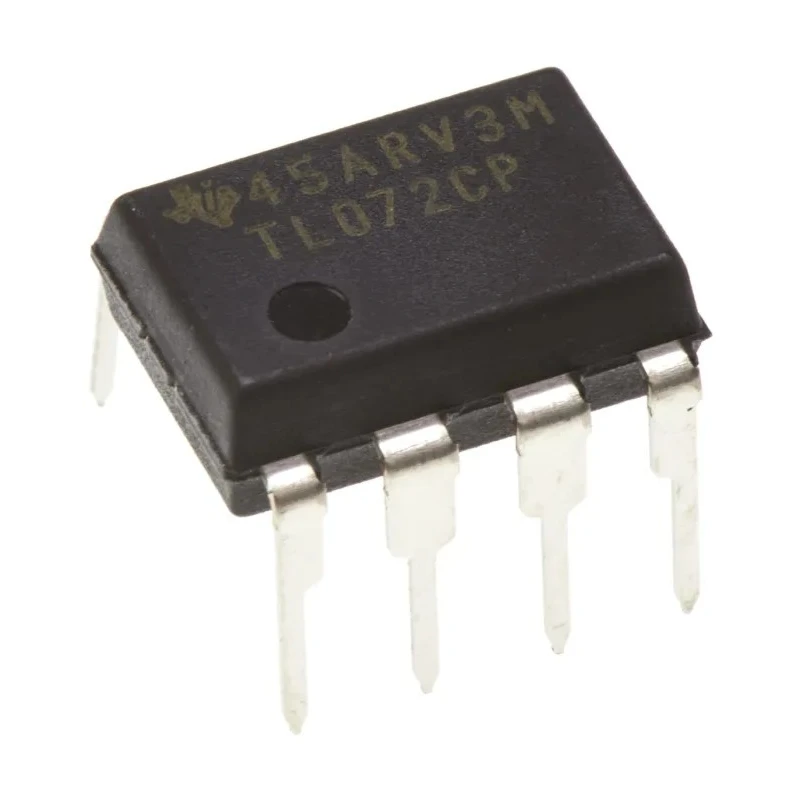

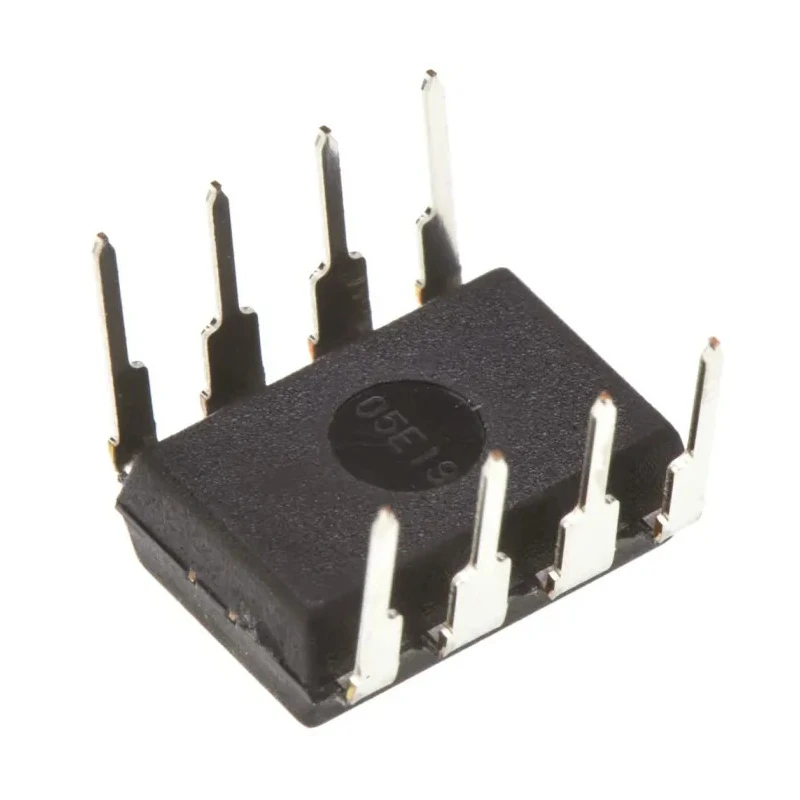

Texas Instruments Operational Amplifier TL072CP, 3 MHz Gain Bandwidth, 15V Max Supply, 8-Pin PDIP Through Hole TL072CP
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | TL072CP |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Low Noise | 18nV/√Hz typical at 1 kHz |
| Series | TL072 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 7 nA |
| Vos - Input Offset Voltage | 13 mV |
| Slew Rate | 13V/μs |
| Input Offset Current | 10 nA |
| Wide supply voltage range | ±5 to ±15V |
| High Slew Rate | 13 V/μs typical |
| Low Total Harmonic Distortion | 0.003% typical |
Key Features
- Operates with a supply voltage range from 5V to 15V.
- Features low input bias current of 7 nA and low input offset current of 10 nA.
- Offers a high slew rate typical of 13 V/μs ensuring fast response.
- Designed to operate in temperatures ranging from 0°C to 70°C.
- Compact package dimensions with length 9.81 mm, width 6.35 mm, and height 4.57 mm.
- Low total harmonic distortion of 0.003% typical at 1 kHz frequency.
- Suitable for audio, signal processing, and general amplifying applications.
- Manufactured in Mexico ensuring quality and reliability.
Product Description
Texas Instruments TL072CP is a dual operational amplifier with JFET inputs, providing low noise and low distortion performance ideal for audio, signal processing, and instrumentation applications. This 3 MHz bandwidth device supports a voltage supply range from 5V to 15V and comes in a through-hole 8-Pin PDIP package.
The device features a low input bias current of 7 nA and a low input offset current of 10 nA, which help in minimizing signal distortion and improving accuracy during amplification tasks. Its high slew rate of 13 V/μs allows for rapid signal changes, making it well-suited for high-fidelity audio and transient-intensive signals.
With a total harmonic distortion of just 0.003%, it supports applications demanding low signal distortion. The operational amplifier operates reliably between 0°C and 70°C, with standard package dimensions facilitating easy integration into circuit boards using through-hole mounting techniques.
Manufactured in Mexico, it meets the quality standards expected of Texas Instruments products. The TL072CP belongs to the TL072 series, known for high performance in JFET input operational amplifiers and broad versatility across many industrial and laboratory electronics projects.
Dual-channel JFET input operational amplifier for precision tasks. Wide voltage supply range from 5V to 15V. Low noise and harmonic distortion ensure signal clarity. High slew rate suitable for rapid signal processing. Compact PDIP package perfect for through-hole mounting.
Operational temperature range ensures reliable use in diverse environments. Manufactured with high-quality standards in Mexico. Explore the Texas Instruments product range and Operational Amplifiers in the Electronics & Electricals category at EnvMart for your project and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TL072CP has a gain bandwidth product of 3 MHz.
This model operates with a supply voltage range from 5V to 15V.
The operational amplifier has dimensions of 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height.
It features a low input bias current of 7 nA.
The maximum operating temperature for the TL072CP is 70°C.
This operational amplifier has a typical slew rate of 13 V/μs.
The TL072CP has a low total harmonic distortion of 0.003% typical at 1 kHz frequency.
This model is a dual-channel operational amplifier.
The input offset voltage for this operational amplifier is 13 mV.
It comes in an 8-Pin PDIP package suitable for through-hole mounting.
This operational amplifier is suitable for audio, signal processing, and general amplifying applications.
The input offset current for this model is 10 nA.
