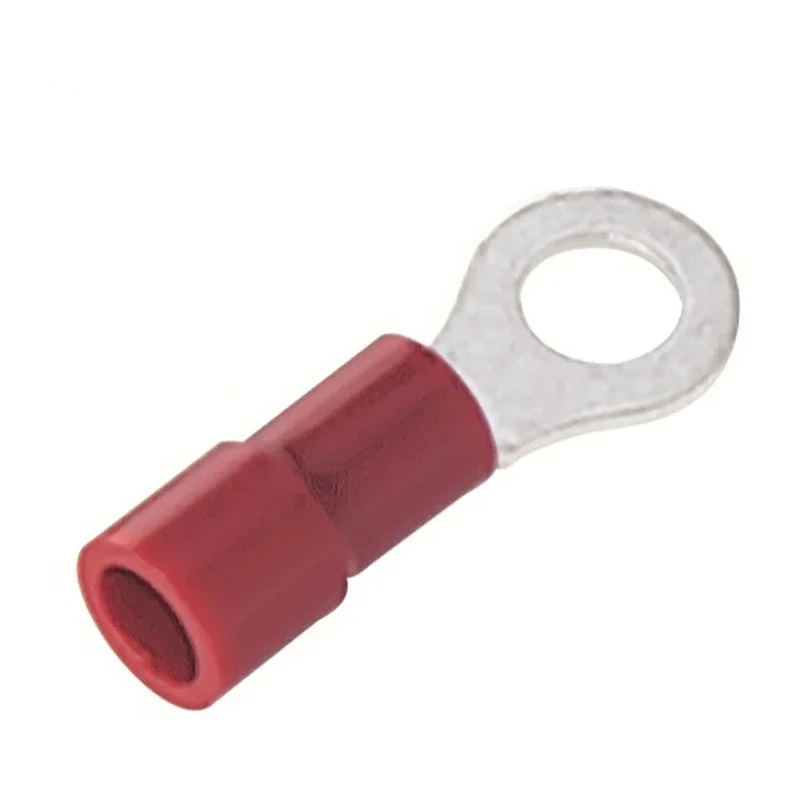

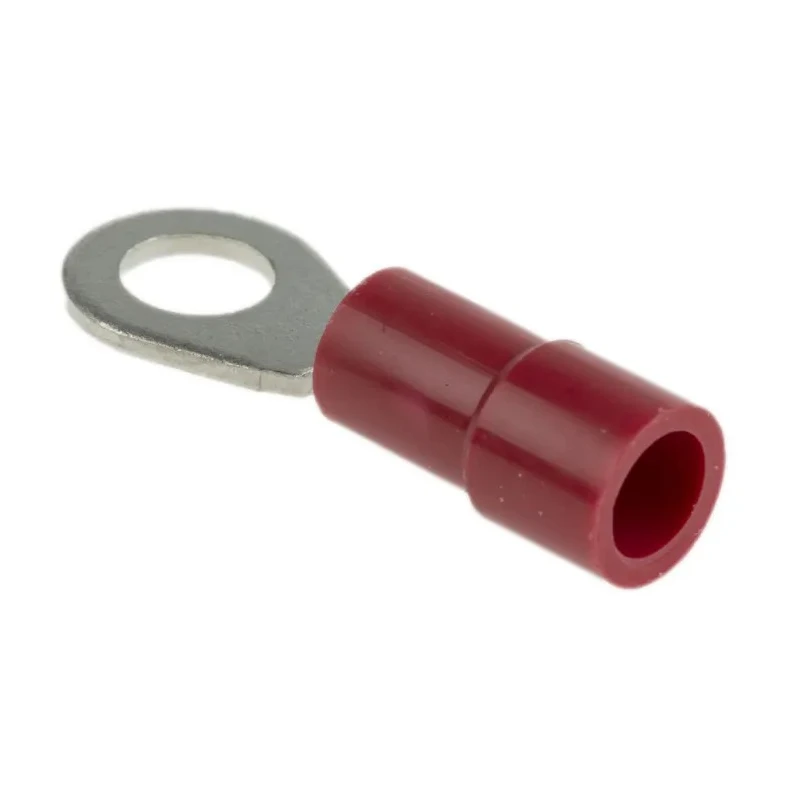

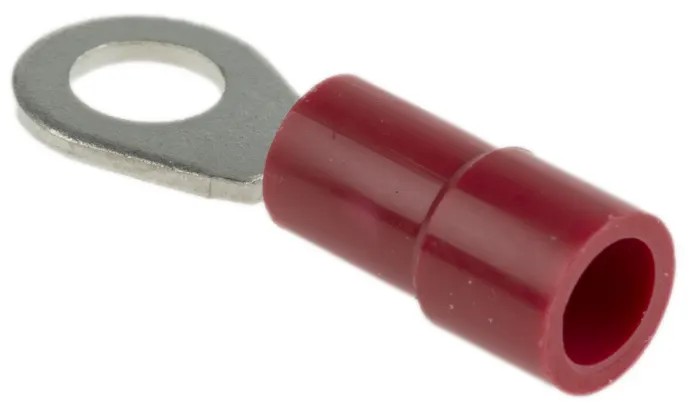

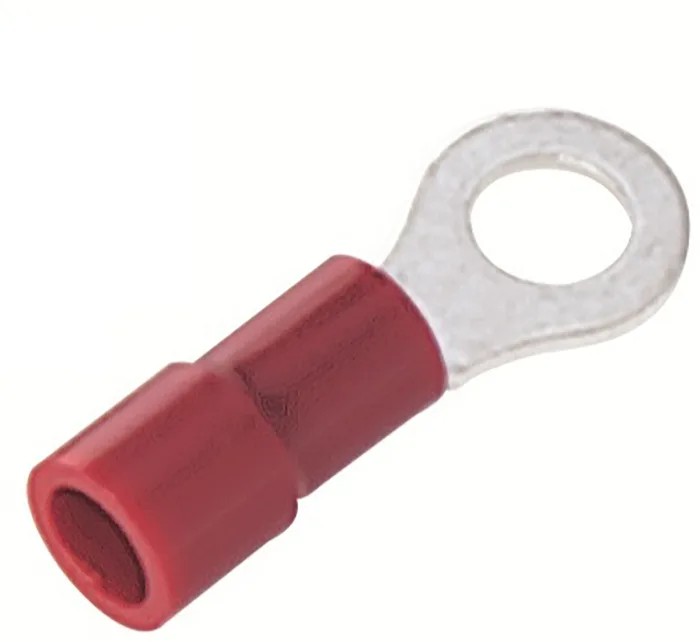

RS PRO Insulated Ring Terminal, Vinyl Insulation, 4.3 mm Stud Size, 22 to 16 AWG Wire Size, Copper Tin-Plated 178-7270

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Insulated Ring Terminal, Vinyl Insulation, 4.3 mm Stud Size, 22 to 16 AWG Wire Size, Copper Tin-Plated 178-7270

Name: RS PRO Insulated Ring Terminal, Vinyl Insulation, 4.3 mm Stud Size, 22 to 16 AWG Wire Size, Copper Tin-Plated 178-7270
Brand: RS PRO
SKU: 153733
Price: 0.11 USD
Availability: InStock



Category Ring Terminal Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Red
THICKNESS	0.8mm
Model	178-7270
Insulation	Insulated
Overall Length	22mm
Contact Material	Copper
Series	RS PRO
Maximum Operating Temperature	105°C
Insulation Material	Vinyl
Minimum Operating Temperature	-40°C
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Outer Ring Diameter	8mm
Inner Ring Diameter	4.3mm
Stud Size	4.3 mm

Key Features

High quality copper contact material with tin plating ensures excellent conductivity and corrosion resistance.
Vinyl insulated body in red color provides mechanical protection and electrical insulation.
Outer ring diameter of 8 mm and inner ring diameter of 4.3 mm fits standard stud sizes.
Overall length is 22 mm with a thickness of 0.8 mm for durability in industrial applications.
Supports wire sizes from 0.5 mm² (22 AWG) up to 1.5 mm² (16 AWG) ensuring versatile wiring options.
Operates reliably within a temperature range of -40°C to 105°C suitable for varied environments.
Ideal for electronic, electrical, power connector, and PCB terminal applications.

Product Description

RS PRO 178-7270 insulated ring terminal is engineered for efficient, secure electrical connections in industrial and electronic systems. Featuring a copper contact plated with tin, this ring terminal offers excellent conductivity and resistance to corrosion, ensuring long-term reliability.

The terminal is insulated with red vinyl material that protects against mechanical and electrical hazards while providing clear color coding. Its stud size of 4.3 mm and outer ring diameter of 8 mm fit standard mounting hardware for ease of installation.

The product supports wire sizes ranging from 22 AWG (0.5 mm²) to 16 AWG (1.5 mm²), making it suitable for a wide range of wiring requirements. With an overall length of 22 mm and material thickness of 0.8 mm, it delivers mechanical strength and durability for various industrial, laboratory, and manufacturing applications.

Designed to operate across a wide temperature range from -40°C to 105°C, it withstands demanding conditions in power connectors, PCB connections, and wiring splices. High-quality copper and tin plating optimize electrical performance.

Vinyl insulation enhances safety and color coding. Compatible with 4.3 mm stud size hardware. Supports wire sizes 22 AWG to 16 AWG for versatility. Durable design with 0.8 mm thickness and 22 mm length. Suitable for industrial, electronic, and electrical equipment wiring.

Operates reliably in temperature extremes from -40°C to 105°C.

This RS PRO Ring Terminal is a trusted choice for professionals needing durable and reliable wire terminals for power, electronic components, and general electrical wiring tasks. Browse EnvMart’s extensive collection for more high-quality wire terminals and electrical components from RS PRO and other leading brands.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports wire sizes from 22 AWG (0.5 mm²) to 16 AWG (1.5 mm²), providing versatility for various wiring applications.

The outer ring diameter is 8 mm, while the inner ring diameter is 4.3 mm, compatible with standard stud sizes.

The overall length of this terminal is 22 mm, and it has a thickness of 0.8 mm, ensuring mechanical strength.

It features a copper contact material that is tin-plated for enhanced conductivity and corrosion resistance, with a vinyl insulation for electrical safety.

This ring terminal operates reliably within a temperature range of -40°C to 105°C, making it suitable for various environments.

The insulation on this terminal is red, providing clear color coding for electrical connections.

Yes, it is designed for use in industrial, electronic, and electrical equipment wiring, making it suitable for a range of applications.

It has vinyl insulation that provides mechanical protection and electrical insulation, enhancing safety during use.

The contact material is copper, which is plated with tin to improve conductivity and resistance to corrosion.

This model is compatible with a stud size of 4.3 mm, fitting standard mounting hardware.

The country of origin for this ring terminal is Taiwan, indicating where it was manufactured.

This terminal is part of the RS PRO series, known for its reliable electrical components.
