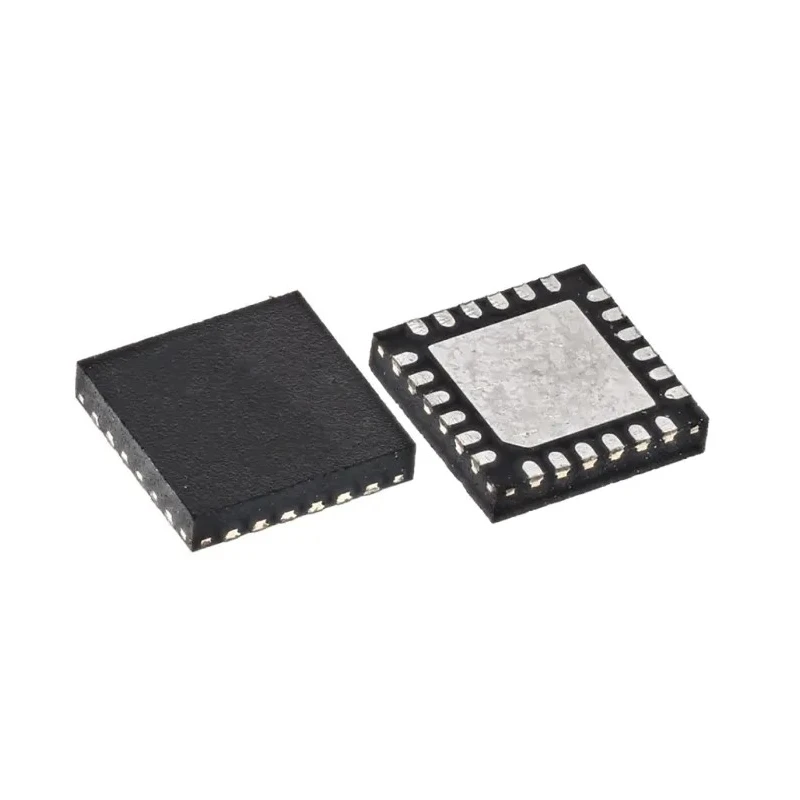

Infineon 32 bit ARM Cortex M0 Microcontroller CY8C4014LQI-422T, 16 MHz, 16kB FLASH, 2kB RAM, 24-Pin QFN

Free Delivery in India | Lowest Global Shipping Charges

Infineon 32 bit ARM Cortex M0 Microcontroller CY8C4014LQI-422T, 16 MHz, 16kB FLASH, 2kB RAM, 24-Pin QFN

Name: Infineon 32 bit ARM Cortex M0 Microcontroller CY8C4014LQI-422T, 16 MHz, 16kB FLASH, 2kB RAM, 24-Pin QFN
Brand: Infineon
SKU: 153600
Price: 2.51 USD
Availability: InStock



Category Microcontroller Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	550μm
Length	4mm
Model	CY8C4014LQI-422T
Width	4mm
Mount Type	Surface
Series	CY8C4014
Maximum Operating Temperature	85°C
Package Type	QFN
Minimum Operating Temperature	-40°C
Ram size	2kB
Pin Count	24
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	1.71V
Device Core	ARM Cortex M0
Program Memory Size	16kB
Maximum Clock Frequency	16MHz
Number of Programmable I/Os	20
Analogue Comparators	1
Number of Timers	1
Instruction Set Architecture	RISC
Program Memory Type	FLASH
DACs	2 x 7 Bit

Key Features

Features a 32-bit RISC ARM Cortex M0 core for efficient processing.
Operates at a maximum clock frequency of 16 MHz.
Comes with 16kB of onboard FLASH program memory and 2kB RAM.
Supports 20 programmable I/O pins for flexible interfacing.
Includes 2 x 7-bit DACs and one analogue comparator for signal conditioning.
Designed with a single hardware timer for scheduling and event measurement.
Operates under supply voltages from 1.71 V to 5.5 V.
Capable of operating in temperatures from -40°C to 85°C, suitable for automotive use.

Product Description

Infineon CY8C4014LQI-422T is a 32-bit ARM Cortex M0 microcontroller delivering 16 MHz clock speed, 16kB flash program memory, and 2kB RAM, packaged in a compact 24-pin QFN surface-mount design. This microcontroller combines analog and digital peripherals, making it ideal for space-limited embedded control applications.

The ARM Cortex M0 core provides efficient 32-bit instruction execution suitable for real-time embedded systems, while the 20 programmable I/Os enable flexible interaction with external devices. Its dual 7-bit DACs and analogue comparator facilitate simple signal conditioning tasks essential for mixed-signal designs.

This device supports operating voltages from 1.71 V to 5.5 V, ensuring compatibility with various power supply arrangements including battery-powered systems. It is rated to withstand operating temperatures from -40°C to 85°C, meeting automotive standard AEC-Q100, making it reliable for vehicle sensor interfaces and gateway subsystems.

The single hardware timer on this microcontroller allows for precise timing, event measurement, and scheduling in control applications. Its compact size (4mm x 4mm footprint and 550μm height) and surface-mount package type make it suitable for embedded applications where PCB space is limited.

Typical applications include vehicle sensor interfaces, low-power handheld instrumentation, simple motor control, actuator drivers, automotive gateway subsystems, and mixed-signal test and bench utilities.

32-bit ARM Cortex M0 core at 16 MHz clock frequency. 16kB FLASH memory and 2kB RAM for program and data storage. 20 programmable I/O pins for flexible peripheral control. 2 x 7-bit DACs and 1 analogue comparator integrated.

Single hardware timer for scheduling and event tasks. Wide supply voltage range of 1.71 V to 5.5 V. Automotive-grade temperature range from -40°C to 85°C complying with AEC-Q100. Compact 24-pin QFN package with 4mm x 4mm footprint and 550 μm height.

This microcontroller is well-suited for use in industrial, automotive, and consumer electronics requiring reliable embedded control in constrained spaces. Explore similar Microcontrollers and semiconductor components on EnvMart for advanced embedded system solutions.
