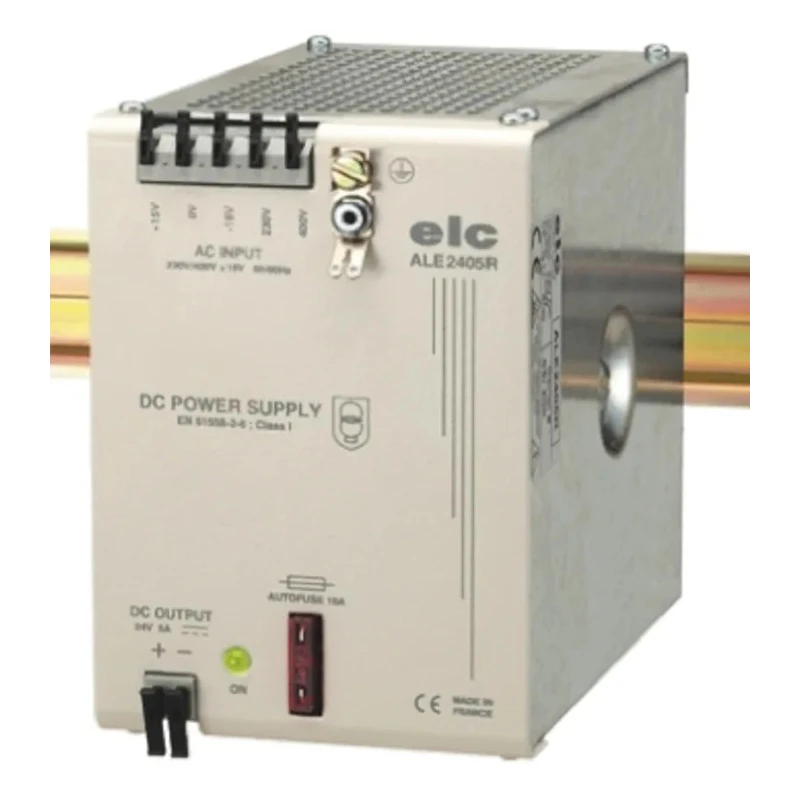

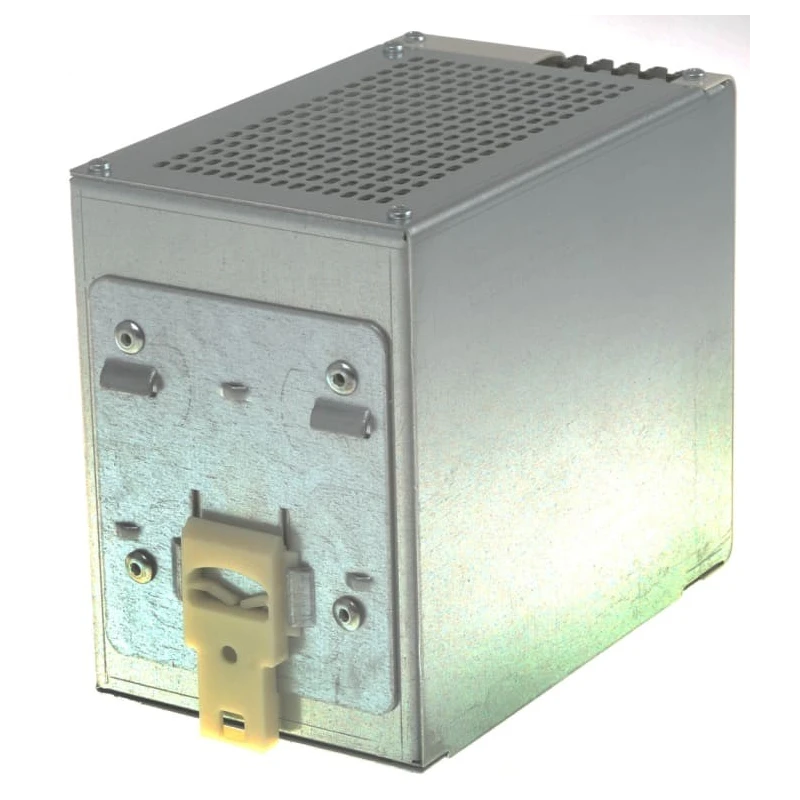

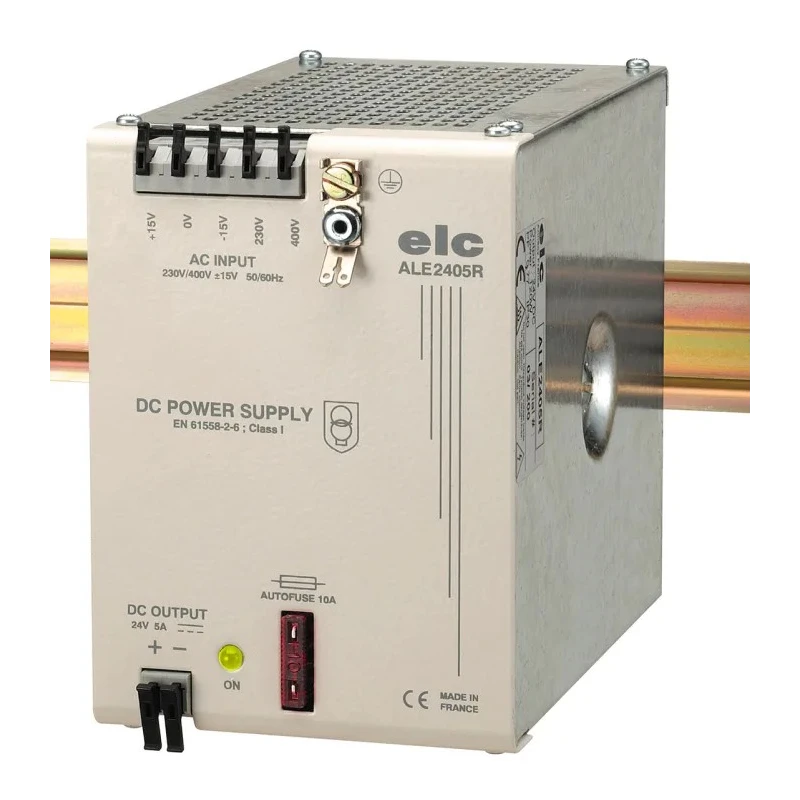

ELC ALE Linear DIN Rail Power Supply 1 Phase 230/400V AC Input 24V DC 5A Output 120W ALE2405R

Free Delivery in India | Lowest Global Shipping Charges

ELC ALE Linear DIN Rail Power Supply 1 Phase 230/400V AC Input 24V DC 5A Output 120W ALE2405R



Category DIN Rail Power Supply Brand ELC Condition New

Specifications

Country of Origin	France
Brand	ELC
Power	120W
Height	125mm
Model	ALE2405R
Depth	145mm
Technology	Filtered Rectified
IP Rating	IP30
Width	90mm
Series	ALE
Output Current	5A
Maximum Operating Temperature	55°C
Sub Type	Linear
Minimum Operating Temperature	5°C
Number of outputs	1
Maximum Input Voltage	400V ac
Electrical Phase	1
Maximum Output Voltage	24V dc
Minimum Input Voltage	230V ac
High efficiency	Toroidal safety transformer (SELV)
Primary Voltage Rating	230/400V ±15V

Key Features

Provides reliable linear power supply with filtered rectified technology.
Features high efficiency with toroidal safety transformer (SELV) class I.
Includes short-circuit protection via secondary fuse for safety.
Compact size with 90mm width, 125mm height, and 145mm depth for easy DIN rail mounting.
Operating temperature range from 5°C to 55°C for versatile industrial environments.
IP30 protection rating ensures moderate protection against foreign objects.
Complies with EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61558-2-6 safety and EMC standards.
Equipped with green LED indicator for power ON status monitoring.

Product Description

ELC ALE2405R is a high-quality linear DIN Rail Power Supply designed to convert single-phase AC inputs of 230/400V ±15V into a stable 24V DC output at 5A, providing 120W power suitable for industrial and commercial use.

This power supply features filtered rectified technology combined with a toroidal safety transformer (SELV) meeting Class I insulation standards. The unit includes advanced short-circuit protection via a secondary fuse to ensure operational safety and reliability in demanding electrical environments.

The product is engineered with an IP30 protection rating that offers basic protection against solid objects, making it suitable for use in controlled industrial settings. Its compact form factor with dimensions 90mm width, 125mm height, and 145mm depth fits standard DIN rail installations efficiently.

Operating reliably within a temperature range of 5°C to 55°C, it is ideal for automation systems, electronic instrumentation, and power distribution setups. The green LED power ON indicator provides clear operational status at a glance.

The power supply complies with stringent European standards: EN 61131-2 (programmable controllers), EN 61000-6-4 and EN 61000-6-2 (EMC emissions and immunity), and EN 61558-2-6 (safety of transformers and power supply units), ensuring it meets industrial norms for safety and performance.

Reliable linear filtered rectified power supply technology. High efficiency toroidal transformer construction. Short-circuit protection enhanced by secondary fuse. Compact design for ease of DIN rail mounting. Wide operating temperature range for diverse environments.

IP30 rated protection for indoor industrial applications. Compliance with key European safety and EMC standards. Single output with 24V DC at 5A current. Visual power ON green LED indicator. Manufactured in France ensuring quality and durability.

This ELC ALE2405R power supply is widely used in industrial automation, control panel manufacturing, electrical distribution, and other applications requiring dependable, linear DC power with compact DIN rail mounting. EnvMart offers this product as a trusted component for electrical engineers and industrial technicians.
