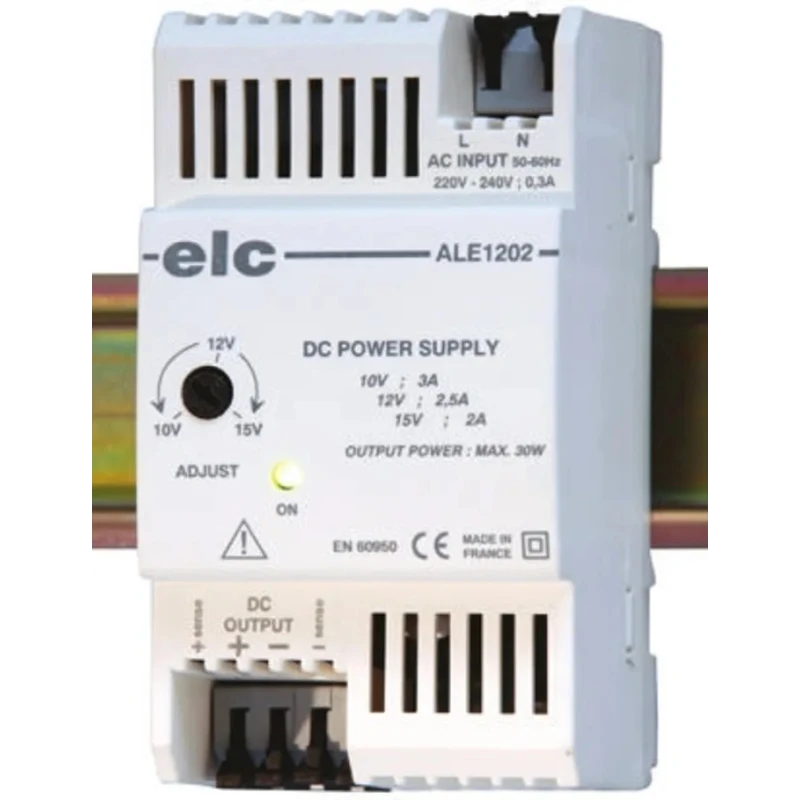

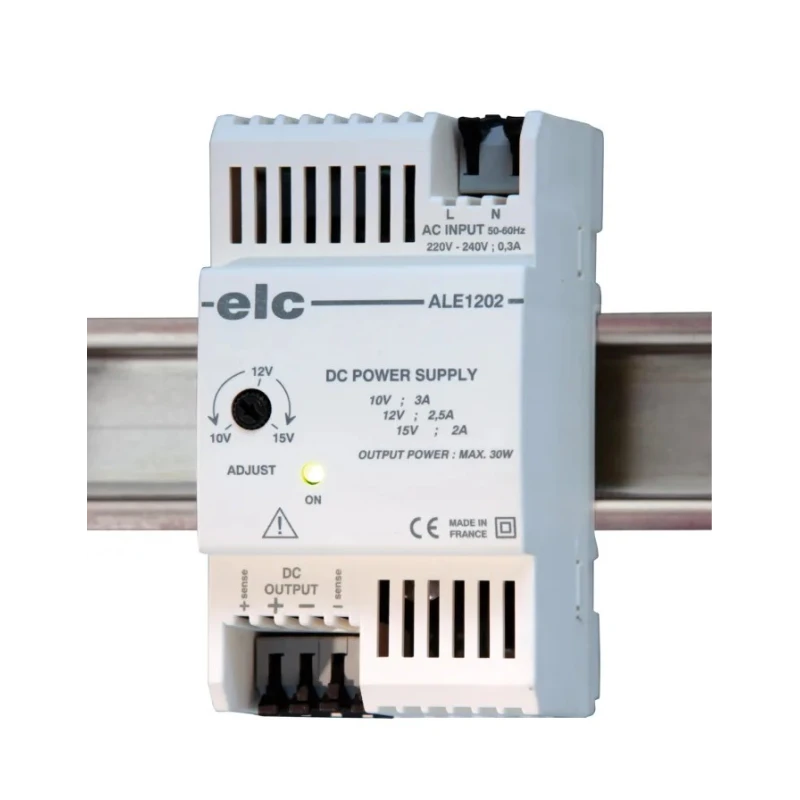

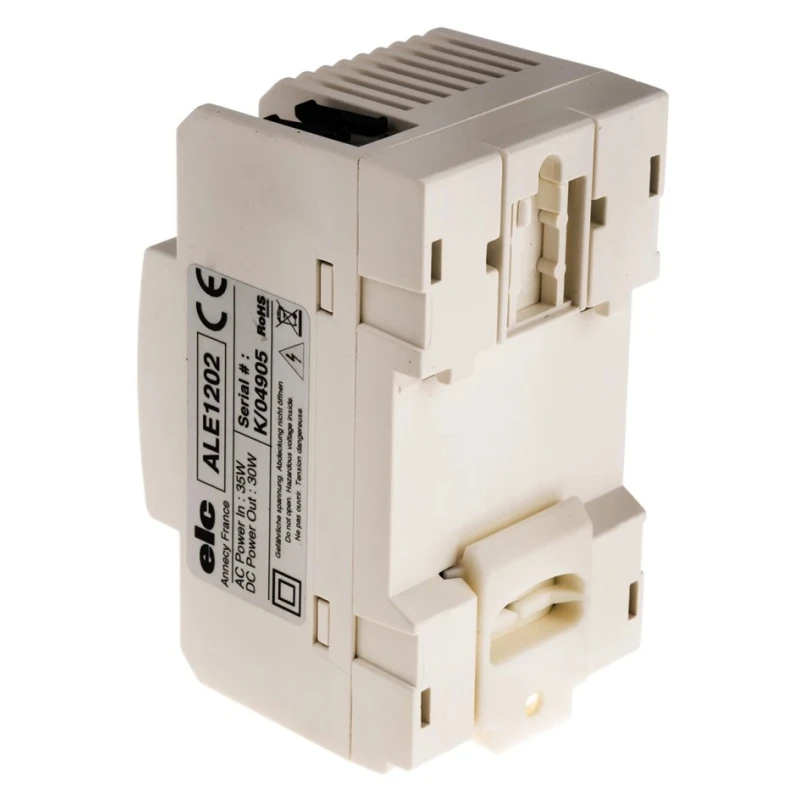

ELC ALE Switched Mode DIN Rail Power Supply AC 190-264V Input 15V DC 2.5A Output 30W ALE1202
Specifications
| Country of Origin | France |
|---|---|
| Brand | ELC |
| Power | 30W |
| Height | 58mm |
| Model | ALE1202 |
| Depth | 95mm |
| Technology | Switch Mode |
| IP Rating | IP20 |
| Width | 54mm |
| Series | ALE |
| Output Current | 2.5A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 15V dc |
| Minimum Input Voltage | 190V ac |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 703-3420 Brand: [ELC](https://in.rsdelivers.com/brands/elc)Manufacturers Part No.: ALE1202 |
| Primary Voltage Rating | 220-240V ±10% |
Key Features
- The output voltage is adjustable between 10V DC and 15V DC.
- Offers LED status indication for operational monitoring.
- Designed for operation in temperatures ranging from -25°C to 70°C.
- Provides overload and short-circuit protection for enhanced safety.
- Features spring terminals accommodating up to 2.5 mm² wire size.
- Compact dimensions with 58mm height, 54mm width, and 95mm depth.
- IP20 rated enclosure suitable for industrial applications.
- Complies with safety standards EN 61010-1, EN 61010-2-201, and EN 62368-1.
Product Description
The ELC ALE1202 is a switched mode DIN rail power supply engineered to accommodate a universal AC input voltage from 190V to 264V. It provides a stable 15V DC output at a current rating of 2.5A, with a total power output of 30W. This power supply is built to withstand operating environments with temperatures ranging from -25°C up to 70°C, ensuring reliable performance in varied industrial settings.
Equipped with adjustable output voltage capabilities, ranging from 10V DC to 15V DC, the device includes remote sensing functionality to compensate for voltage drops across power lines. An LED status indicator facilitates straightforward operational monitoring. Safety is enhanced through built-in overload and short-circuit protections, safeguarding connected equipment.
The compact and robust design includes spring terminals compatible with wires up to 2.5 mm², fitting neatly on DIN rails for streamlined installations. The enclosure holds an IP20 rating, making it suitable for industrial controls, automation systems, and process control environments.
The power supply complies with international safety standards EN 61010-1, EN 61010-2-201, and EN 62368-1, ensuring adherence to quality and safety requirements essential in electrical installations. Its dimensions are 58mm in height, 54mm in width, and 95mm in depth.
The output voltage is adjustable between 10V DC and 15V DC. Provides LED status indication for operation monitoring. Supports operation temperatures from -25°C to 70°C. Includes overload and short-circuit protection. Equipped with spring terminals for 2.5 mm² wire.
Compact dimensions: 58mm (H) x 54mm (W) x 95mm (D). IP20 rated enclosure for industrial use. Complies with EN 61010-1, EN 61010-2-201, and EN 62368-1 safety standards. Suitable for automation, process control, and industrial power management.
This switched mode DIN rail power supply from ELC is well-suited for applications in automation, industrial controls, and power management systems, delivering dependable power conversion with adjustable output voltage and built-in protections essential for demanding industrial environments.
Explore more DIN Rail Power Supplies for various applications at EnvMart to find the optimal solution for your electrical power requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is adjustable between 10V DC and 15V DC.
It provides a maximum output current of 2.5A.
The dimensions of this unit are 58mm in height, 54mm in width, and 95mm in depth.
This power supply has a total power output of 30W.
It is designed to operate in temperatures ranging from -25°C to 70°C.
It includes built-in overload and short-circuit protection for enhanced safety.
It features spring terminals that accommodate wire sizes up to 2.5 mm².
This model has an IP20 rated enclosure, suitable for industrial applications.
It complies with safety standards EN 61010-1, EN 61010-2-201, and EN 62368-1.
This power supply has one output.
