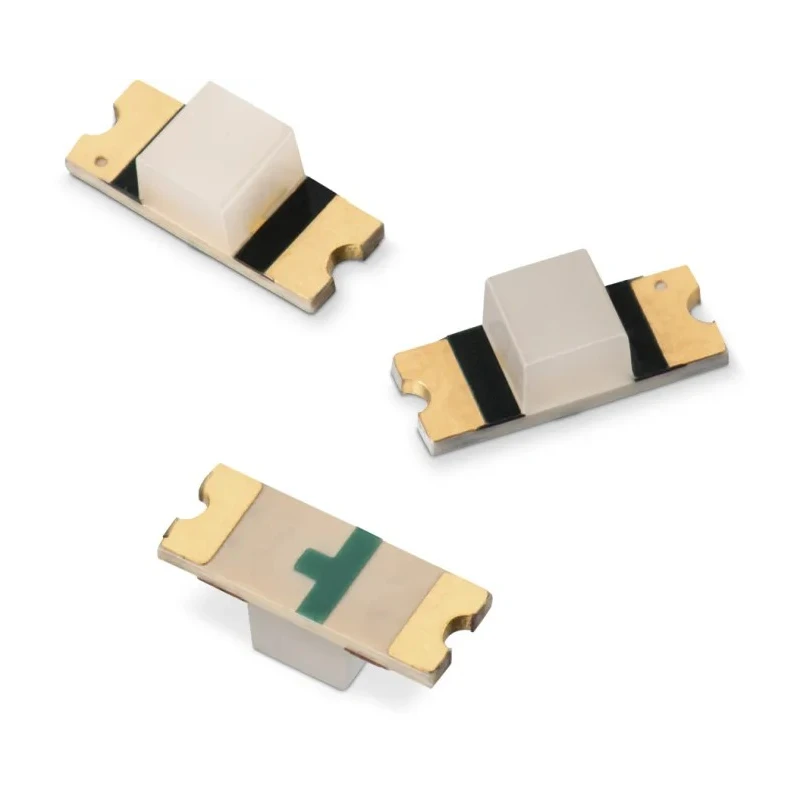

Wurth Elektronik 2.4 V Green LED 1205 Surface Mount Diffused Rectangular Lens WL-SMRD 156125VS57000
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Model | 156125VS57000 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | WL-SMRD |
| Maximum forward current | 20mA |
| Viewing angle | 160 ° |
| Package Type | 1205 |
| Standards/Approvals | IEC 60286-3:2013DIN EN 62471:2008IPC/JEDEC J-STD-020E |
| LED Colour | Green |
| Dominant Wavelength | 573nm |
| Forward Voltage | 2.4V |
| Number of Pins | 2 |
| LED Luminosity | 40 mcd |
| Maximum Power Dissipation | 48mW |
| Lens Dimensions | 3.2 x 1.2 x 1.1 mm |
| Lens Shape | Rectangular |
| Lens Finish | Diffused |
| Standards/ApprovalsIEC 60286-3 | 2013DIN EN 62471:2008IPC/JEDEC J-STD-020E |
| IEC 60286-3 | 2013DIN EN 62471:2008IPC/JEDEC J-STD-020E |
Key Features
- Small size and thin body ideal for space-saving narrow applications.
- Wide viewing angle of 160 degrees for better visibility.
- Maximum forward current of 20 mA ensures reliable operation.
- Diffused lens with clear color for uniform light output.
- Compatible with automatic placement machines for efficient assembly.
- Suitable for front panel, keypad, and push button backlighting.
- Industry standard footprint with tape and reel packaging format.
- Rectangular lens shape dimensions 3.2 x 1.2 x 1.1 mm.
Product Description
Wurth Elektronik 156125VS57000 is a 2.4 V green LED designed with a 1205 surface mount package featuring a diffused rectangular lens for high brightness and wide light dispersion. This LED operates at a maximum forward current of 20 mA and dissipates up to 48 mW power, making it highly efficient for various electronic applications.
The product includes a small and thin body that supports space-saving layouts, making it ideal for narrow spaces where compact LED elements are required. Its wide viewing angle of 160 degrees improves visibility from diverse perspectives, enhancing user interface components.
The LED is offered in a tape and reel packaging format, compatible with automatic placement machines, facilitating high-volume manufacturing processes. The lens finish is diffused with a clear color and measures 3.2 x 1.2 x 1.1 mm in dimensions, ensuring optimal light emission and uniform distribution.
Common applications include front panel indicators, LCD and keypad backlighting, push button illumination, symbol and switch lighting, and general lighting tasks in industrial, commercial, and electronic products.
This component adheres to standards such as IEC 60286-3:2013, DIN EN 62471:2008, and IPC/JEDEC J-STD-020E. It is manufactured in Taiwan and delivered new, ensuring quality and reliability.
Small size and thin body ideal for space-saving narrow applications. Wide viewing angle of 160 degrees for better visibility. Maximum forward current of 20 mA ensures reliable operation. Diffused lens with clear color for uniform light output.
Compatible with automatic placement machines for efficient assembly. Suitable for front panel, keypad, and push button backlighting. Industry standard footprint with tape and reel packaging format. Rectangular lens shape dimensions 3.2 x 1.2 x 1.1 mm.
Explore more LEDs and optoelectronic components from Wurth Elektronik and other leading brands in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this LED is 20 mA, ensuring reliable operation in various applications.
The lens dimensions are 3.2 x 1.2 x 1.1 mm, making it suitable for space-saving applications.
This model has a wide viewing angle of 160 degrees, which enhances visibility from various perspectives.
The forward voltage of this LED is 2.4 V, which is typical for green LEDs.
It is packaged in tape and reel format, which is compatible with automatic placement machines for efficient assembly.
Common applications include front panel indicators, LCD and keypad backlighting, push button illumination, and general lighting tasks.
The maximum power dissipation for this LED is 48 mW, allowing for efficient operation.
This LED adheres to standards such as IEC 60286-3:2013, DIN EN 62471:2008, and IPC/JEDEC J-STD-020E.
The LED luminosity is rated at 40 mcd, providing adequate brightness for various applications.
This LED features a diffused lens finish, which ensures uniform light output.
This LED has 2 pins, which is standard for surface mount devices.
This LED is manufactured in Taiwan, ensuring compliance with relevant manufacturing standards.
