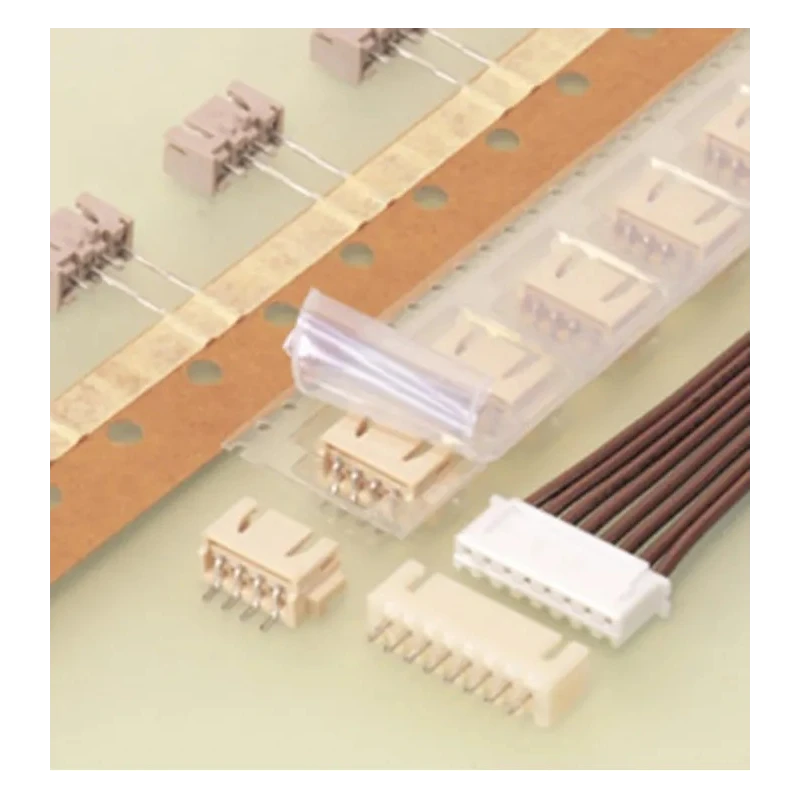

JST XH Series Straight Through Hole PCB Header, 5 Contacts, 2.5 mm Pitch, 1 Row, Shrouded B5B-XH-AM (LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST XH Series Straight Through Hole PCB Header, 5 Contacts, 2.5 mm Pitch, 1 Row, Shrouded B5B-XH-AM (LF)(SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	China
Voltage	1000V
Brand	JST
Orientation	Straight
Current	3A
Model	B5B-XH-AM (LF)(SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	XH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Copper, Tin
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board
Tail Pin Length	3.4mm

Key Features

Designed with a polyamide housing for durability and insulation.
Brass contact material with copper and tin plating ensures excellent conductivity.
Mount type is through hole with a straight orientation and a shrouded header for protection.
Supports currents up to 3A and operates between -25°C to 85°C.
Contact tail pin length is 3.4 mm for secure solder termination.
Male contact gender for compatibility with female connectors.
Conforms to HA Terminal interchangeability standards.
Made in China, ensuring consistent manufacturing quality.

Product Description

JST B5B-XH-AM (LF)(SN) is a 5-contact PCB header from the XH series designed for straight through hole mounting. Featuring a 2.5 mm pitch and single-row configuration, this shrouded header provides secure, reliable connections in electronic circuit boards.

Constructed with a robust polyamide housing, this header ensures electrical insulation and mechanical stability. The brass contacts are plated with copper and tin, enhancing conductivity and corrosion resistance. Its tail pin length of 3.4 mm supports effective soldering for durable circuit connections.

Operating temperature ranges from -25°C to 85°C, suitable for various industrial and electronic environments. The design supports a current rating of 3A and voltage rating up to 1000V, making it ideal for board-to-board interconnection in both commercial and industrial applications.

This product is a top entry type with a boss for alignment and security, conforming to HA terminal standards for interchangeability. Its male contact gender enables pairing with appropriate female connectors, facilitating flexible design implementations.

Applications include industrial electronics, manufacturing equipment, HVAC control panels, telecommunications, and laboratory instrumentation where precise and reliable PCB connections are critical.

Durable polyamide housing ensures electrical insulation and mechanical strength. Brass contacts with copper and tin plating for excellent conductivity and resistance. Through hole mount with straight orientation supports sturdy PCB installation.

Rated for 3A current and 1000V voltage for robust electrical performance. Operating temperature range from -25°C to 85°C ensures versatile use. Tail pin length of 3.4 mm provides reliable solder joint stability. Male contact gender for secure connection with compatible female plugs.

Conforms to HA Terminal standards for interchangeability. Manufactured in China under quality controls. Discover more high-quality PCB Headers and connector solutions in our Electronics & Electricals category at EnvMart.
