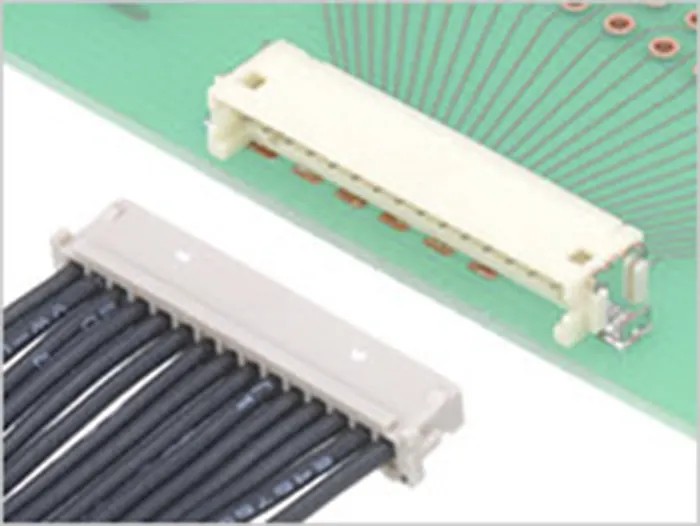

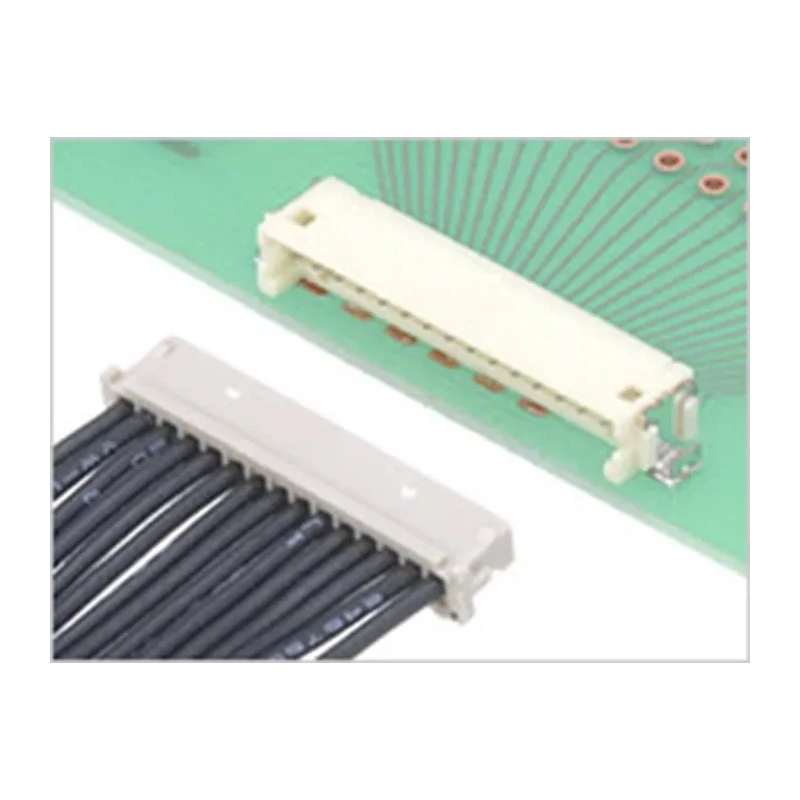

Hirose DF13 Series Straight Surface PCB Header, 20 Contacts, 1.25 mm Pitch, 1 Row, Shrouded DF13EA-20DP-1.25V(65)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 500V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 1A |
| Model | DF13EA-20DP-1.25V(65) |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | DF13 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -35°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Cable |
| Tail Pin Length | 1.7mm |
Key Features
- Rated for 1A current and 500V voltage for dependable electrical performance.
- Housing is made of durable polyamide material for stability and insulation.
- Contact material is brass with gold plating for corrosion resistance and conductivity.
- Designed with 1.7 mm tail pin and mating pin length for proper soldering and connection.
- Operating temperature ranges from -35°C to 85°C to suit diverse environments.
- Single-row, scoop-proof box structure enhances connection safety and prevents mismating.
- Termination type is solder suitable for surface mount applications.
- Connector system supports board-to-cable interfaces in electronics.
Product Description
Hirose DF13EA-20DP-1.25V(65) PCB Header is a high-quality, straight surface mount connector designed for precise and reliable board-to-cable connections in electronic devices. It features 20 contacts in a single row with a fine pitch of 1.25 mm, making it suitable for compact and dense circuit board layouts.
The component housing is constructed from polyamide material, providing excellent insulation and mechanical strength. Brass contacts plated with gold ensure superior conductivity and resistance to corrosion, which is essential for maintaining signal integrity over time.
With a current rating of 1A and a voltage rating of 500V, this PCB header is engineered to operate safely under demanding electrical conditions. The operational temperature range from -35°C to 85°C allows use in a variety of industrial, commercial, and consumer electronics environments.
The solder tail pin length of 1.7 mm ensures reliable solder joint formation during surface mount assembly processes. The scoop-proof shrouded single row design prevents damage to contacts and helps avoid connection errors when mating with cables.
This Hirose PCB header is widely used in applications including video cameras, notebook computers, and other compact electronic equipment requiring dependable and secure electrical connections.
Rated for 1A current and 500V voltage for reliable electrical functionality. Housing made of polyamide for durability and insulation. Gold-plated brass contacts for excellent conductivity and corrosion resistance. Shrouded single row design with scoop-proof structure for connection safety.
Operating temperature range from -35°C to 85°C for versatile usage. Surface mount termination with solder tails for easy PCB assembly. Board-to-cable connector system suitable for electronic device interconnections. Manufactured in Japan ensuring high quality standards and reliability.
This product is ideal for use in electronic manufacturing, industrial automation, consumer electronics, and other fields requiring precision PCB connectors. Explore more Hirose PCB Headers and connectors at EnvMart for your electronics projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 1A and a voltage of 500V, ensuring reliable electrical performance.
The operating temperature range for this PCB header is from -35°C to 85°C, making it suitable for various environments.
The housing is made of polyamide for insulation and stability, while the contacts are brass with gold plating for enhanced conductivity and corrosion resistance.
This model features 20 contacts arranged in a single row, designed for compact circuit board layouts.
The pitch size of this PCB header is 1.25 mm, allowing for dense packing on circuit boards.
It uses a solder termination type, suitable for surface mount applications, ensuring reliable connections during assembly.
The tail pin length is 1.7 mm, which aids in proper soldering and connection.
This model is shrouded, featuring a scoop-proof design that enhances connection safety and prevents mismating.
It is widely used in applications such as video cameras, notebook computers, and other compact electronic devices requiring secure electrical connections.
This product is manufactured in Japan, ensuring adherence to high-quality standards.
It supports a board-to-cable connector system, making it suitable for interconnections in electronic devices.
The orientation of this model is straight, designed for straightforward installation on circuit boards.
