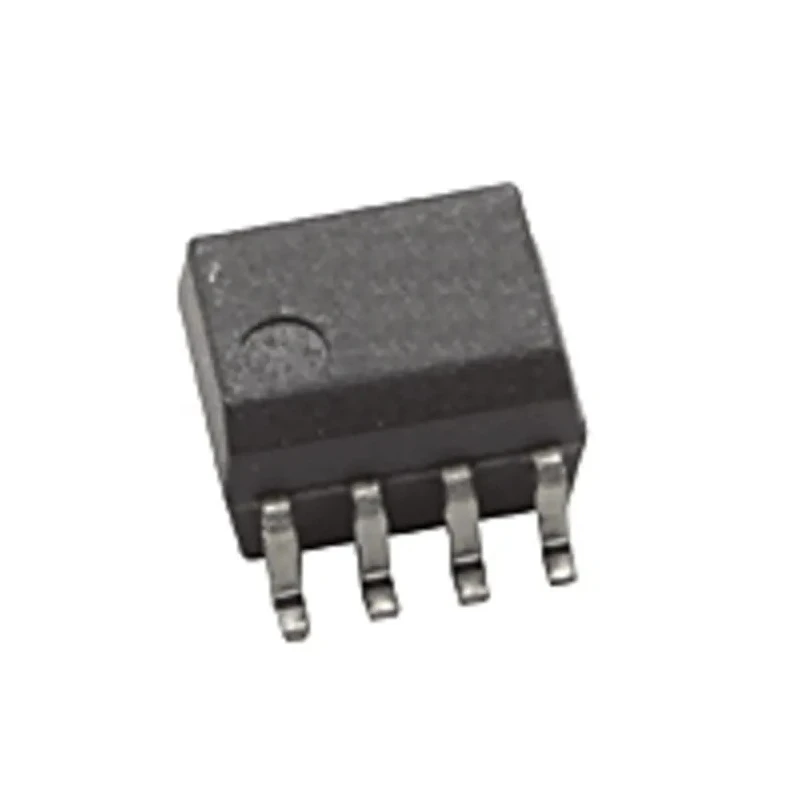

Broadcom Optocoupler Surface Mount 8-Pin SO Transistor Output 1 Channel 1.6V Forward Voltage HCPL-061N-500E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-061N-500E |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Output type | Transistor |
| Series | HCPL |
| Maximum Operating Temperature | 80°C |
| Package Type | SO |
| Minimum Operating Temperature | -45°C |
| Maximum input current | 10mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL, IEC, EN, CSA |
| Maximum Forward Voltage | 1.6V |
| Number of Pins | 8 |
| Typical Rise Time | 42ns |
| Typical Fall Time | 12ns |
Key Features
- Provides a single channel high-speed optical isolation interface.
- Features a maximum forward voltage of 1.6V for input LED.
- Typical rise and fall times of 42ns and 12ns respectively ensuring fast switching.
- Supports operation in a wide temperature range from -45°C to 80°C.
- Encapsulated in a surface mount SO package with 8 pins supporting tape and reel packaging.
- Incorporates open collector Schottky-clamped transistor output with logic signal capability.
- Offers isolation voltage rating of 3750Vrms for robust electrical isolation.
- Meets industrial standards UL, IEC, EN, and CSA for safety and performance.
Product Description
Broadcom HCPL-061N-500E is a surface mount optocoupler designed for electrical isolation with a transistor output in an 8-pin SO package. It features a single optical channel allowing high speed digital signal transmission with excellent isolation up to 3750Vrms. The device uses an AlGaAs LED for reduced drive current and degradation, achieving improved longevity and efficiency.
This optocoupler has a maximum forward LED voltage of 1.6V and supports a maximum input current of 10mA. Typical switching speed characteristics include a rise time of 42ns and a fall time of 12ns, making it suitable for high-speed digital communication interfaces.
It operates reliably over a broad industrial temperature range from -45°C to 80°C, enabling use in harsh environments. The transistor output is open collector with Schottky diode clamp, providing logic output compatible with HCMOS, LSTTL, and TTL logic circuits for flexible design integration.
The product is packaged in tape and reel form, facilitating automated assembly in manufacturing. It complies with UL, IEC, EN, and CSA industrial standards, ensuring quality and safety in industrial and electronic applications.
Ideal uses include industrial control systems, isolated digital signal transmission, data acquisition, power supply monitoring, and other applications requiring safe and reliable signal isolation.
Provides a single channel high-speed optical isolation interface. Features a maximum forward voltage of 1.6V for input LED. Typical rise and fall times of 42ns and 12ns respectively ensuring fast switching. Supports operation in a wide temperature range from -45°C to 80°C.
Encapsulated in a surface mount SO package with 8 pins supporting tape and reel packaging. Incorporates open collector Schottky-clamped transistor output with logic signal capability. Offers isolation voltage rating of 3750Vrms for robust electrical isolation.
Meets industrial standards UL, IEC, EN, and CSA for safety and performance. Compatible with HCMOS, LSTTL, and TTL logic families for broad application use. Explore more Broadcom Optocouplers and electronic components in the Electronics Components category of EnvMart for industrial, laboratory, and manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of the Broadcom HCPL-061N-500E optocoupler is 1.6V for the input LED.
This model features a typical rise time of 42ns and a fall time of 12ns, ensuring fast switching capabilities.
It operates reliably over a temperature range from -45°C to 80°C, making it suitable for harsh environments.
The Broadcom HCPL-061N-500E has a single optical channel for high-speed digital signal transmission.
It provides a transistor output with an open collector configuration, compatible with various logic families.
This optocoupler meets industrial standards including UL, IEC, EN, and CSA for safety and performance.
The product is packaged in tape and reel form, facilitating automated assembly in manufacturing processes.
The maximum input current for the HCPL-061N-500E is 10mA.
This optocoupler features 8 pins, encapsulated in a surface mount SO package.
It is compatible with HCMOS, LSTTL, and TTL logic circuits, providing flexible design integration.
The isolation voltage rating of the HCPL-061N-500E is 3750Vrms, ensuring robust electrical isolation.
This optocoupler is suitable for applications such as industrial control systems, isolated digital signal transmission, and data acquisition.
