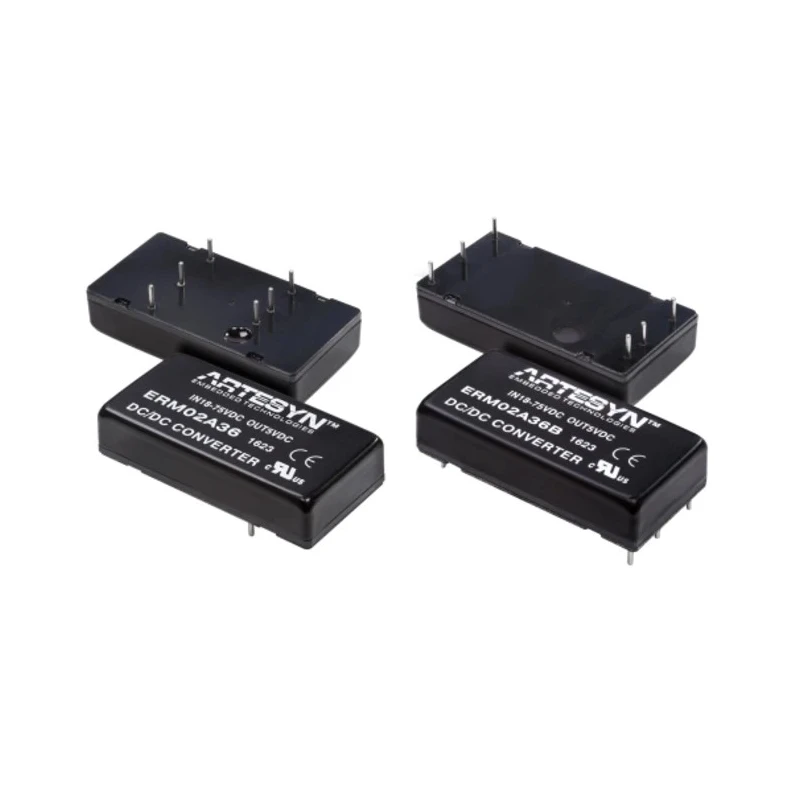

Artesyn High-Performance 10W Isolated DC/DC Converter 12V DC Output 830mA 18-75V DC Input Through Hole ERM00B36B

Artesyn ERM00B36B DC/DC Converter is a high-performance, isolated power module providing a regulated 12V DC output at 830mA with a maximum power rating of 10W. This converter supports a wide input voltage range from 18V to 75V DC, making it adaptable for various industrial and transportation systems, including railway applications.

Encapsulated in a metal case with through-hole mounting, the converter has a compact footprint measuring 50.8mm in length, 25.4mm in width, and 11mm in height. It is engineered to operate under harsh environmental conditions with a temperature range from -40°C to 85°C and reinforced insulation rated at 3kV DC, ensuring electrical safety and reliability.

The ERM00B36B series achieves up to 87% efficiency via advanced circuit topology, facilitating energy-efficient operation and reduced thermal stress. The design also incorporates features such as voltage adjustment, remote On/Off control, undervoltage shutdown, overload protection, and short-circuit protection, enhancing the module’s robustness and control.

Its high EMI immunity and compact size comply with rigorous standards for transport and industrial electronics, making it well-suited for applications requiring stable and reliable DC power conversion in challenging environments.

The converter offers a stable 12V DC output with a maximum output current of 830mA. The wide input voltage range covers from 18V up to 75V DC, adaptable to multiple input sources. Provides reinforced insulation rated at 3kV DC for enhanced safety in industrial systems.

Mounts easily with through-hole technology, packaged in an encapsulated metal case. Designed for operating temperatures from -40°C to +85°C suitable for harsh environments. High efficiency of 87% minimizes power losses and heat generation.

Compact dimensions of 50.8mm x 25.4mm x 11mm facilitate integration in space-constrained installations. Equipped with undervoltage shutdown, remote On/Off, overload, and short-circuit protection for reliable performance.

This DC/DC converter is ideal for use in industrial, railway, transportation, and other demanding applications where high-quality and efficient isolated power supplies are critical. It supports designers and engineers looking for compact modules that combine durability, safety, and electrical performance.
