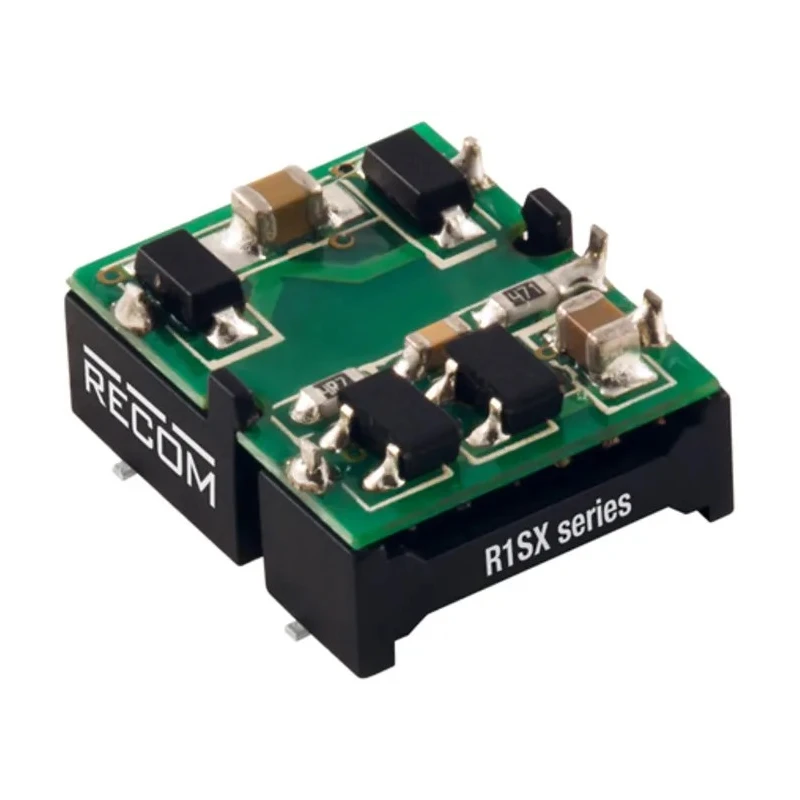

Recom 1W Surface Mount Isolated DC/DC Converter 5V dc Output 200mA Input 2.97V-3.63V Operating Temp -40°C to 100°C R1SX
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom R1SX DC/DC Converter, 5V dc/ 200 mA, 3 |
| Brand | Recom |
| Efficiency | 78% |
| Length | 12.75mm |
| Model | R1SX |
| Depth | 5.8mm |
| Width | 11.1mm |
| Mount Type | Surface |
| Series | R1SX |
| Maximum Operating Temperature | 100°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 7800000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 3.63V dc |
| Minimum Input Voltage | 2.97V |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 1kV dc |
Key Features
- Operates with input voltages from 2.97 V to 3.63 V DC for versatility.
- Provides a regulated output voltage of 5 V DC at 200 mA current.
- Compact dimensions of 12.75 mm length, 11.1 mm width, and 5.8 mm depth.
- Stable operation across a wide temperature range from -40°C to 100°C.
- Isolation voltage rating of 1 kV DC ensures electrical safety and noise reduction.
- Designed as a low profile, open-frame SMD package offering a low-cost solution.
- High MTBF of 7,800,000 hours reflecting excellent reliability.
- Compatible pin-out with R1S series at half the height simplifies integration.
Product Description
Recom R1SX is a 1W isolated DC-DC Converter designed for surface mounting, providing high reliability and efficient power conversion in a compact footprint. It operates from a low input voltage range of 2.97 V to 3.63 V DC and supplies a steady 5 V DC output at 200 mA, suitable for a variety of low power electronics applications.
The converter’s surface-mount open-frame design enables a low-profile installation with dimensions of 12.75 mm length, 11.1 mm width, and 5.8 mm depth. It supports an operating temperature range from -40°C to 100°C at full load, making it ideal for industrial and embedded system environments subject to temperature variation.
Electrical isolation is provided with a rated voltage of 1 kV DC, enhancing noise immunity and safety in sensitive electronics. The device features a proven MTBF of 7,800,000 hours, highlighting its durability and long operational life.
The R1SX converter is pin compatible with the Recom R1S series, but offers a lower profile, allowing for flexible PCB layout options. It achieves an efficiency of 78%, reducing heat dissipation and improving overall system efficiency.
This converter is fully certified to IEC/EN/UL62368-1 and UL60950 standards and is compliant with RoHS directives, meeting demanding industry safety and environmental regulations. Operates from 2.97 V to 3.63 V DC input voltages for diverse power sources.
Provides isolated 5 V output at 200 mA current for stable system power. Compact SMD package with dimensions 12.75 mm x 11.1 mm x 5.8 mm. Wide operating temperature range of -40°C to 100°C ensures robustness. Isolation voltage of 1 kV DC enhances safety and reduces noise interference.
Efficient power conversion with 78% efficiency rating. High MTBF of 7,800,000 hours ensures excellent reliability. Pin compatible with R1S series at half the height for design flexibility. Meets IEC/EN/UL62368-1 and UL60950 certifications and RoHS compliance.
This Recom R1SX DC/DC Converter is ideal for industrial, embedded, telecommunications, and instrumentation applications requiring efficient, isolated DC power conversion in a compact form factor. Explore the full range of electronic components and power supplies at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with input voltages from 2.97 V to 3.63 V DC.
It provides a regulated output voltage of 5 V DC at a current of 200 mA.
The efficiency of this converter is rated at 78%.
The compact dimensions are 12.75 mm in length, 11.1 mm in width, and 5.8 mm in depth.
It can operate at a maximum temperature of 100°C.
The isolation voltage rating is 1 kV DC, which enhances electrical safety and noise reduction.
The MTBF is rated at 7,800,000 hours, indicating high reliability.
This model features a surface mount design, suitable for compact installations.
It is certified to IEC/EN/UL62368-1 and UL60950 standards and complies with RoHS directives.
It is ideal for industrial, embedded, telecommunications, and instrumentation applications requiring efficient power conversion.
Yes, it is pin compatible with the R1S series but offers a lower profile for design flexibility.
The minimum operating temperature is -40°C, allowing for robust performance in extreme conditions.
