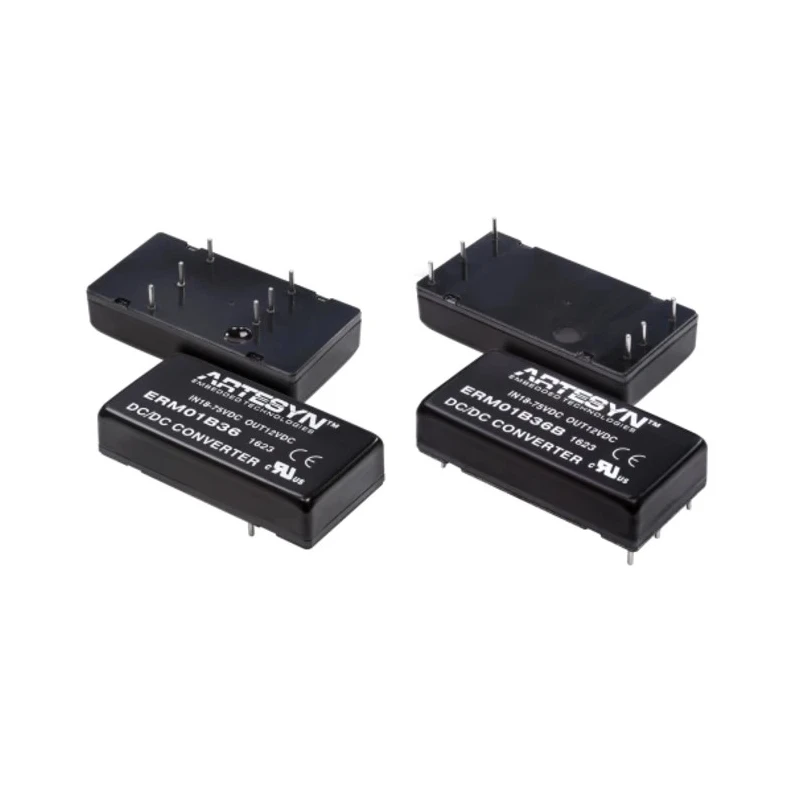

Artesyn High Performance 20W Isolated DC/DC Converter, 12V DC Output, 1.67A, 9-36V DC Input, Through Hole Mount ERM01B18B

Free Delivery in India | Lowest Global Shipping Charges

Artesyn High Performance 20W Isolated DC/DC Converter, 12V DC Output, 1.67A, 9-36V DC Input, Through Hole Mount ERM01B18B

Name: Artesyn High Performance 20W Isolated DC/DC Converter, 12V DC Output, 1.67A, 9-36V DC Input, Through Hole Mount ERM01B18B
Brand: Artesyn
SKU: 151633
Price: 982 USD
Availability: InStock



Category DC/DC Converter Brand Artesyn Condition New

Specifications

Country of Origin	Taiwan
Voltage	Converters / DC-DC Converters Artesyn ERM DC/DC Converter, 12V dc/ 1
Brand	Artesyn
Efficiency	87%
Length	50.8mm
Model	ERM01B18B
Depth	11mm
Width	25.4mm
Mount Type	Through Hole
Series	ERM
Maximum Operating Temperature	85°C
Package Type	Encapsulated
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Output Power	20W
Maximum Input Voltage	36V dc
Minimum Input Voltage	9V
Output Voltage 1	12V dc
Output Current 1	1.67A
Isolation Voltage	3kV dc
Input Ratio	4:1
Input Ratio4	1

Key Features

Provides a regulated 12V DC output with 1.67A current capacity.
Operates with a wide input voltage range of 9V to 36V DC.
Features a compact encapsulated metal package suitable for through hole mounting.
Supports reinforced isolation voltage of 3000V DC ensuring high EMI immunity.
Designed for harsh environments with operational temperatures from -40°C to 85°C.
High efficiency operation at approximately 87%.
Industry standard footprint of 50.8mm x 25.4mm x 11mm height allows easy PCB integration.
Includes advanced protection features like undervoltage shutdown, overload, and short circuit protection.

Product Description

Artesyn ERM01B18B is a high performance 20 watt isolated DC/DC converter module engineered for critical applications in railway and other transportation systems. This compact module provides a stable 12V DC output at 1.67A from a versatile input range of 9V to 36V DC, making it ideal for varied power environments.

The device features a fully encapsulated metal case with a slim profile of 11 mm height and industry standard 2 x 1 inch footprint (50.8 mm x 25.4 mm), ensuring easy installation via through hole mounting. Reinforced insulation rated at 3000V DC and high EMI immunity meet stringent industrial noise and safety standards.

With an efficiency rating of 87%, the ERM01B18B minimizes power loss, enabling operation in ambient temperatures from -40°C up to 85°C with appropriate derating. Its input ratio of 4:1 allows handling of complex input voltage variations common in rolling stock power supplies.

Additional features include voltage adjustment capability, remote on/off control, undervoltage shutdown, overload, and short circuit protection, enhancing reliability and system safety.

This module's rugged design and electrical performance make it suitable for demanding industrial, railway, and transportation power conversion applications requiring robust DC/DC power solutions.

Provides regulated 12V DC output at 1.67A current capacity. Wide input voltage range of 9V to 36V DC for flexible power sources. Encapsulated metal casing with through hole mount for mechanical robustness. High isolation voltage of 3000V DC provides enhanced system safety.

Operating temperature range from -40°C to 85°C supports harsh environments. High efficiency of 87% reduces power loss and heat generation. Standard compact footprint of 50.8mm x 25.4mm x 11mm height for PCB integration. Advanced protection features: undervoltage shutdown, overload, short circuit protection.

Ideal for railway, transportation, and industrial DC power applications. Explore more DC/DC Converters and related power supply solutions on EnvMart.
