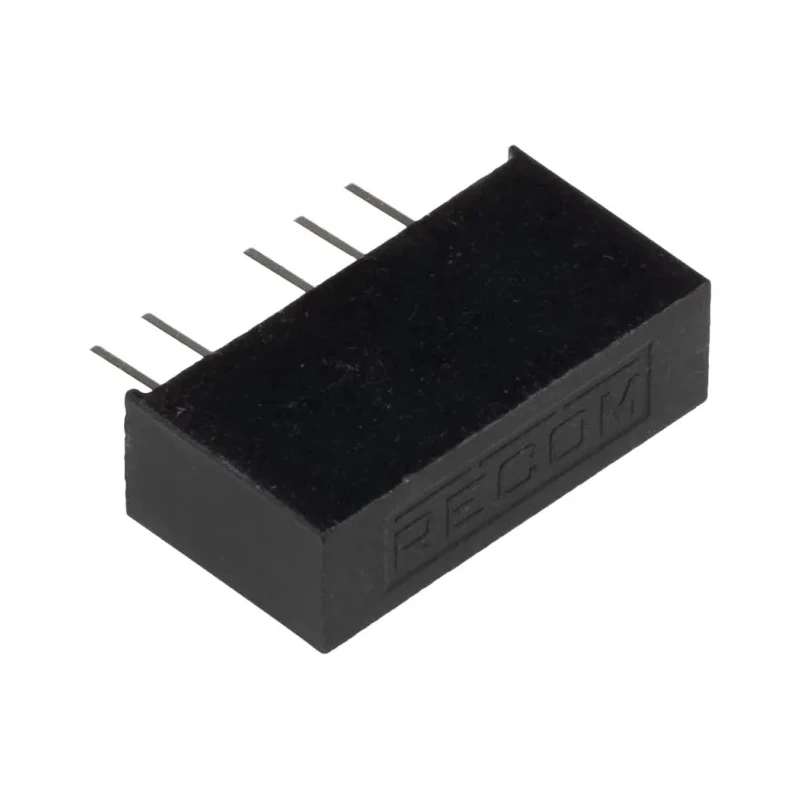

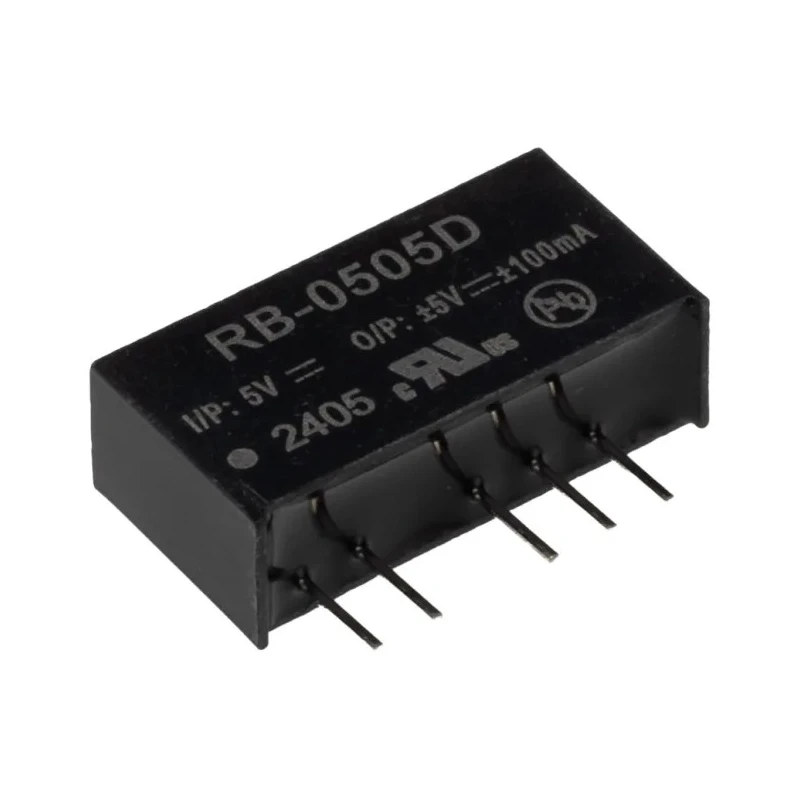

Recom 1W Through Hole DC/DC Converter 5V DC Output, -5V DC Output, 100mA Current, 4.5V to 5V DC Input RB-0505D

Recom RB-0505D is a high-reliability 1W through-hole DC/DC converter designed for voltage conversion in electronic devices. The small SIP package of dimensions 19.6 mm length, 10.2 mm width, and 6 mm depth, along with its lightweight 2.2g construction, allows easy integration on compact PCBs without adding significant mechanical stress.

This converter is suitable for embedded control applications and light-duty power supply tasks in the electronics, medical equipment, sensor isolation, and food and beverage industries. Its wide operational temperature range from -40°C to 85°C enables reliable performance under demanding environmental conditions. With built-in short circuit protection and isolation voltage rating of 500VAC, it ensures safety and electrical noise reduction between input and output circuits.

The RB Series specifically offers a Mean Time Between Failures (MTBF) rated at 151,000 hours, reflecting superior durability. Its efficiency of 78% aids in energy saving and thermal management. The device complies with RoHS and UR standards, signifying adherence to environmental and safety regulations.

Typical use cases include powering embedded devices requiring positive and negative supply voltages, sensor power supplies that require electrical isolation, and applications where small form factor and reliable DC voltage conversion are crucial.

This DC/DC converter offers dual isolated outputs for enhanced electrical safety. Input voltage operates efficiently between 4.5V and 5V DC. Compact SIP through-hole package measuring 19.6 mm by 10.2 mm by 6 mm. Lightweight design weighing only 2.2 grams, minimizing PCB strain.

Operating temperature range from -40°C to 85°C supports harsh environments. High mean time between failures (MTBF) of 151,000 hours ensures reliability. Output ripple and noise is low at 100mV peak-to-peak. Includes short circuit protection for improved safety.

Efficient power conversion with 78% efficiency rating. Validated to RoHS and UR standards for compliance. Explore the Recom brand and DC/DC Converter offerings on EnvMart for reliable power supply solutions to meet industrial, commercial, and electronic design requirements.
