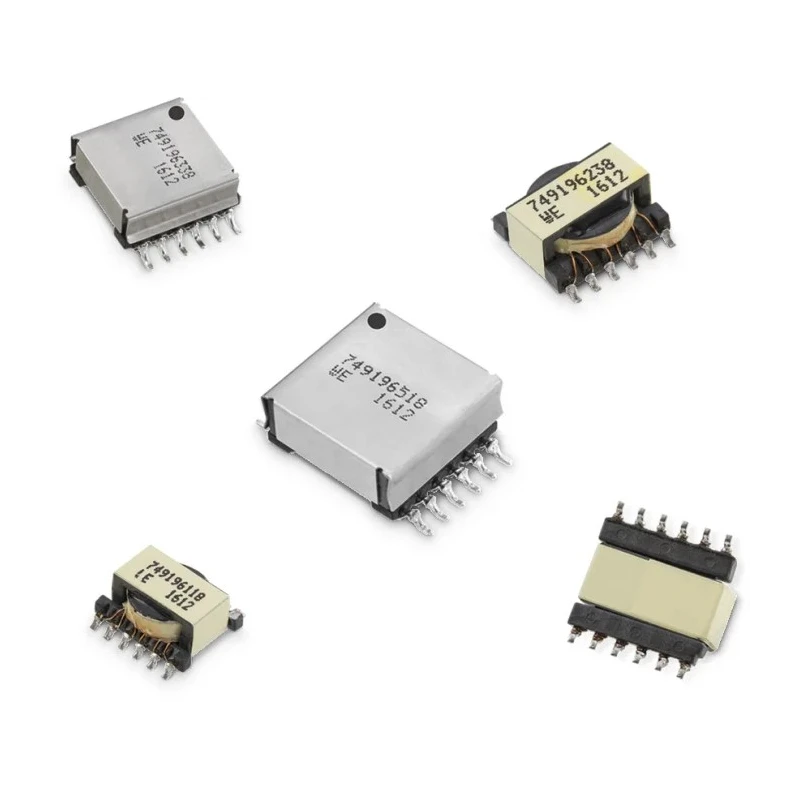

Wurth Elektronik Surface Audio Transformer, Enclosed Construction, 1.5kV AC Isolation, Primary DC Resistance 36mΩ 749196507

Wurth Elektronik 749196507 Surface Audio Transformer is engineered for high-performance audio signal management in electronic circuits. This enclosed transformer features six identical windings, allowing flexible utilization in complex circuits requiring multiple isolation points or signal coupling. Its turns ratio of 1:1:1:1:1:1 supports various transformer configurations.

The device offers an isolation voltage of 1.5 kV AC, providing robust electrical isolation between input and output circuits, enhancing system safety and noise reduction. Operating reliably within a temperature range of -40°C to 125°C, it is well-suited for industrial, automotive, and harsh environmental applications.

With surface mount construction and solder termination, the transformer offers easy integration onto printed circuit boards, minimizing assembly time and space requirements. Its primary DC resistance of 36 milliohms ensures low energy loss and efficient signal transmission.

The compact dimensions (21.5mm length, 21mm width, and 12mm depth) make this transformer ideal for dense electronic assemblies. It supports various converter topologies such as flyback, forward, push-pull, step-up/down, and SEPIC circuits, making it a versatile component for power supply and audio applications.

Enclosed construction provides added protection and durability. Six identical windings enable diverse circuit design options. Isolation voltage of 1.5 kV AC for safe and reliable operation. Wide operating temperature range from -40°C to 125°C.

Surface mount with solder termination facilitates easy assembly. Low primary DC resistance of 36mΩ optimizes performance. Ideal for multiple converter topologies and quick prototyping. Compact size fits well in high-density PCB layouts.

Manufactured in the Philippines ensuring quality assurance. Supports advanced electronic and audio transformer applications.

For engineers and designers working in industrial electronics, telecommunications, audio systems, and power supply designs, this Wurth Elektronik Surface Audio Transformer 749196507 delivers reliability and flexibility. Explore the extensive range of transformers and related components at EnvMart for a broad portfolio solution.
