OEP Panel Mount Audio Transformer 320Ω Primary DC Resistance 0.75Ω Secondary DC Resistance R35A03F

Free Delivery in India | Lowest Global Shipping Charges

OEP Panel Mount Audio Transformer 320Ω Primary DC Resistance 0.75Ω Secondary DC Resistance R35A03F



Category Audio Transformer Brand OEP Condition New

Specifications

Country of Origin	United Kingdom
Brand	OEP
Length	87.3mm
Model	R35A03F
Depth	49.5mm
Gross Weight	465g
Width	52mm
Mount Type	Panel Mount
Construction	Open Frame
Series	R35A03F
Termination Type	Solder
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Standards/Approvals	UL
Isolation Voltage	2000V
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	20kHz
Primary DC Resistance	320Ω
Secondary DC Resistance	0.75Ω

Key Features

Provides maximum output power of 12 W at 50 Hz frequency.
Features grain orientated silicon steel core to reduce distortion and stray magnetic fields.
Includes 5k Ω centre tapped push-pull output transformers, suitable for ECL82 valves.
Equipped with 43% UL taps on the primary winding for improved performance.
Secondary taps support 4 Ω and 8 Ω loads for flexible impedance matching.
Typical inductance of 16 H at 1 kHz and 1 V for consistent audio fidelity.
Hi-pot tested primary to secondary at 1000 V RMS for 2 seconds ensuring reliable insulation.
Constructed with open frame design and panel mount type for easy installation.

Product Description

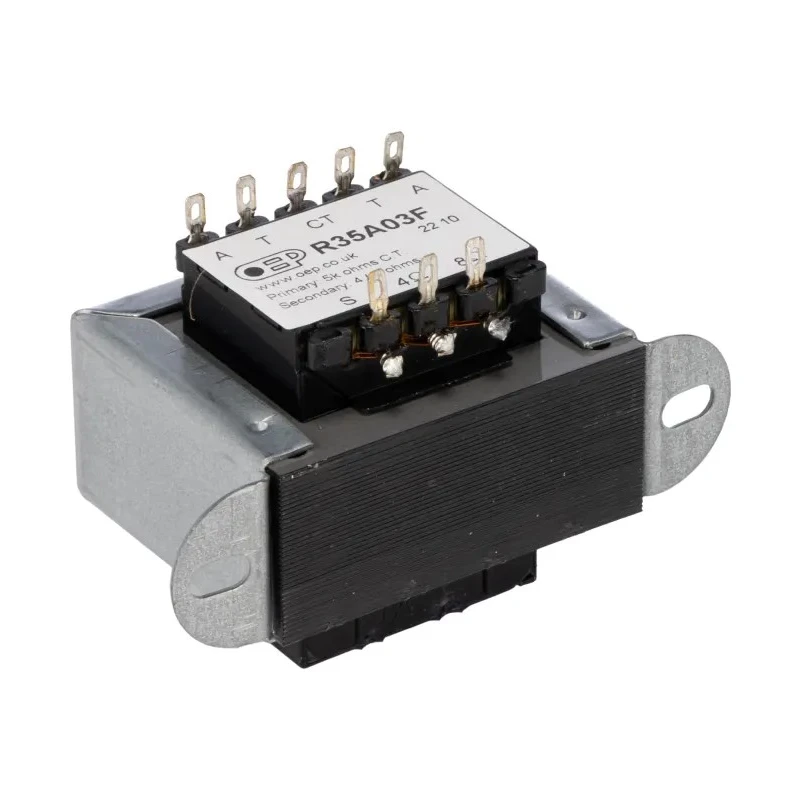

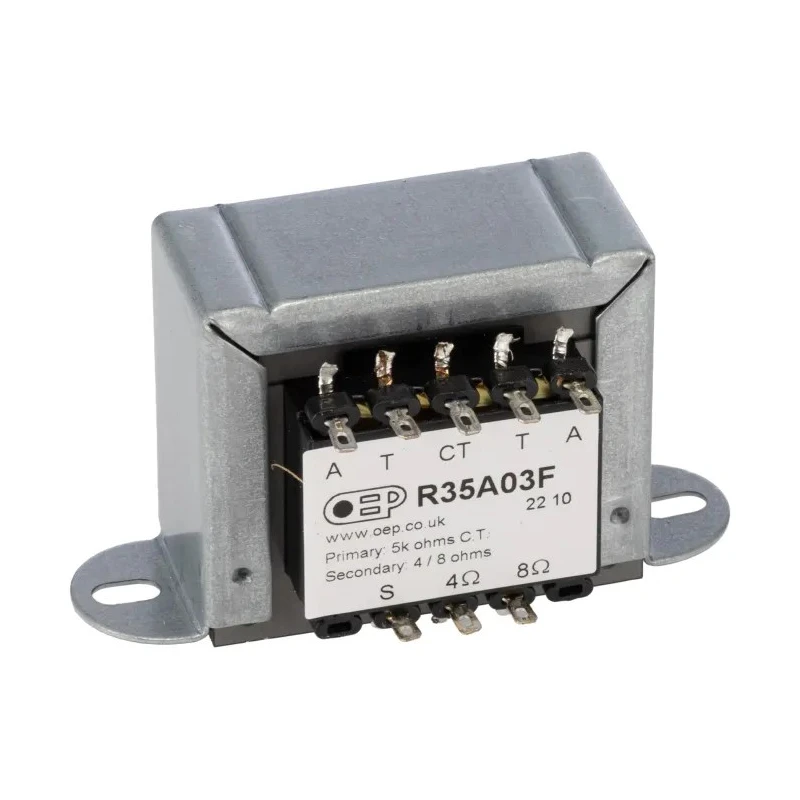

OEP R35A03F panel mount Audio Transformer delivers professional-grade audio output with a maximum power rating of 12 W at 50 Hz. Designed primarily for use in high-fidelity audio circuits, this transformer features grain orientated silicon steel in the core, reducing distortion and stray magnetic fields to enhance audio clarity.

The transformer is a push-pull type with a 5k Ω centre tapped primary and secondary taps configured for 4 Ω and 8 Ω loads, making it ideal for use with ECL82 valves in audio amplifiers. It provides an inductance of approximately 16 H at 1 kHz which is critical for stable frequency response.

Constructed with an open frame and panel mount design, it offers convenient solder termination and is suitable for integration into various electronic chassis. The transformer is tested to withstand an isolation voltage of 2000 V, with hi-pot testing between primary and secondary windings at 1000 V RMS for 2 seconds, assuring robust electrical isolation.

Operational temperature range is from -20°C to 60°C, supporting use in varied environmental conditions. Its compact size (87.3 mm length, 52 mm width, and 49.5 mm depth) and weight (465 g) make it suitable for professional audio equipment where space efficiency matters.

This product is UL certified, complying with essential safety standards for electronic components. It is manufactured in the United Kingdom ensuring consistent quality in all units.

Provides high-fidelity audio output with low distortion. Durable panel mount design for secure installation. Multiple secondary taps for impedance flexibility. Excellent electrical isolation for safety and performance. Tested for reliable operation within wide temperature ranges.

Compact and lightweight form factor. UL approved for industrial and commercial use. Constructed with grain orientated silicon steel core. Suitable for professional and laboratory audio applications.

These transformers are commonly used in industrial audio equipment, laboratory signal processing, and professional sound systems. Explore the extensive range of transformers and related electronic components at EnvMart for high-quality and reliable power and audio solutions.
