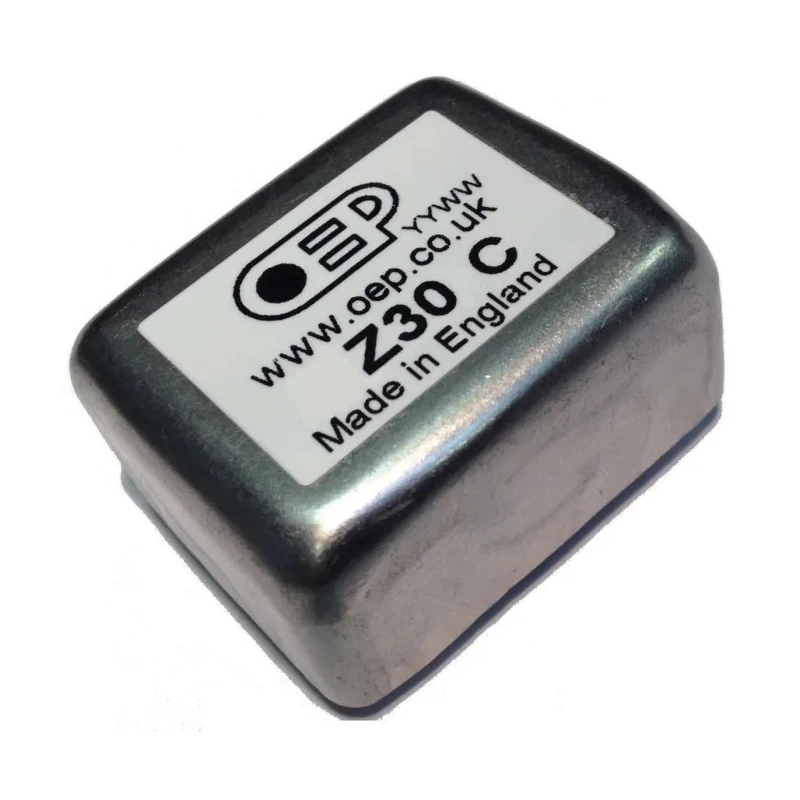

OEP Through Hole Audio Transformer, 600Ω Primary Impedance, 36.4Ω Primary DC Resistance, PC Pin Termination, Model Z30A18C

Free Delivery in India | Lowest Global Shipping Charges

OEP Through Hole Audio Transformer, 600Ω Primary Impedance, 36.4Ω Primary DC Resistance, PC Pin Termination, Model Z30A18C



Category Audio Transformer Brand OEP Condition New

Specifications

Country of Origin	United Kingdom
Brand	OEP
Length	36mm
Model	Z30A18C
Depth	16mm
Gross Weight	45g
Width	30mm
Mount Type	Through Hole
Construction	Enclosed
Series	Z30A18C
Termination Type	PC Pin
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
Isolation Voltage	1000V
Minimum Operating Frequency	10Hz
Maximum Operating Frequency	30kHz
Turns Ratio	1+1:1+1
Primary DC Resistance	36.4Ω
Secondary DC Resistance	44.4Ω
Primary Impedance	600Ω
Turns Ratio1+1	1+1
1+1	1+1

Key Features

Features a mumetal screening can that reduces electrical noise by up to 30 dB.
Equipped with a stray flux copper band and electrostatic screens for enhanced isolation.
Provides galvanic isolation suitable for audio input signals.
Supports a frequency range of 10 Hz to 30 kHz for versatile audio use.
Constructed with PC pin termination and through hole mount for easy PCB integration.
Operates reliably between -20°C and 70°C operating temperature range.
Compact dimensions with length 36 mm, width 30 mm, and depth 16 mm.
Designed for general purpose applications including line, microphone inputs, and ground loop isolation.

Product Description

OEP Z30A18C Through Hole Audio Transformer is engineered with precision to deliver superior audio signal isolation and minimal distortion. This Audio Transformer features a high primary impedance of 600Ω and primary DC resistance of 36.4Ω, making it ideal for line or microphone input applications. The enclosed construction includes a mumetal screening can that effectively reduces electrical noise by up to 30 dB and uses a stray flux copper band along with electrostatic screens to provide enhanced noise suppression and galvanic isolation.

Its wide operating frequency range of 10 Hz to 30 kHz and maximum isolation voltage of 1000V make the Z30A18C suitable for a variety of professional audio environments. The transformer employs PC pin termination and through hole mounting for straightforward installation on printed circuit boards. Operating temperatures range from -20°C to 70°C, ensuring reliable performance in diverse ambient conditions.

The compact physical dimensions (36 mm length, 30 mm width, 16 mm depth) and light weight (45 g) allow integration in space-constrained applications. Common industrial and commercial use cases include audio line inputs, microphone interfaces, ground loop isolation, low distortion circuit designs, and phono stage inputs in professional audio equipment, broadcast hardware, and instrumentation.

Features mumetal shielding for electrical noise reduction up to 30 dB. Includes stray flux copper band and electrostatic screens for superior isolation. Galvanic isolation and low distortion characteristics ensure clean audio signal transmission.

Wide frequency response ranging from 10 Hz to 30 kHz for fidelity across audio bands. Robust through hole mounting and PC pin termination support reliable PCB installation. Durable performance across temperatures from -20°C to +70°C environment.

Compact design suits industrial, laboratory, audio production, and broadcast applications. Enclosed construction provides protection and consistent performance in demanding conditions. Explore the full range of transformers in the Electronics & Electricals category on EnvMart for trusted industrial and professional components.
