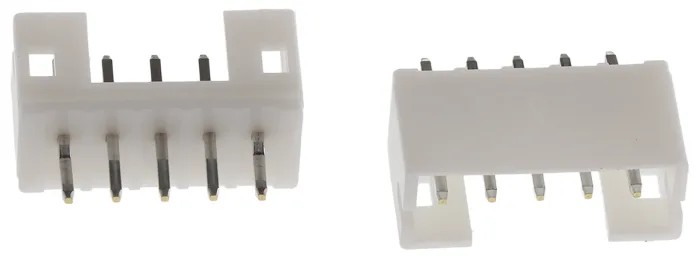

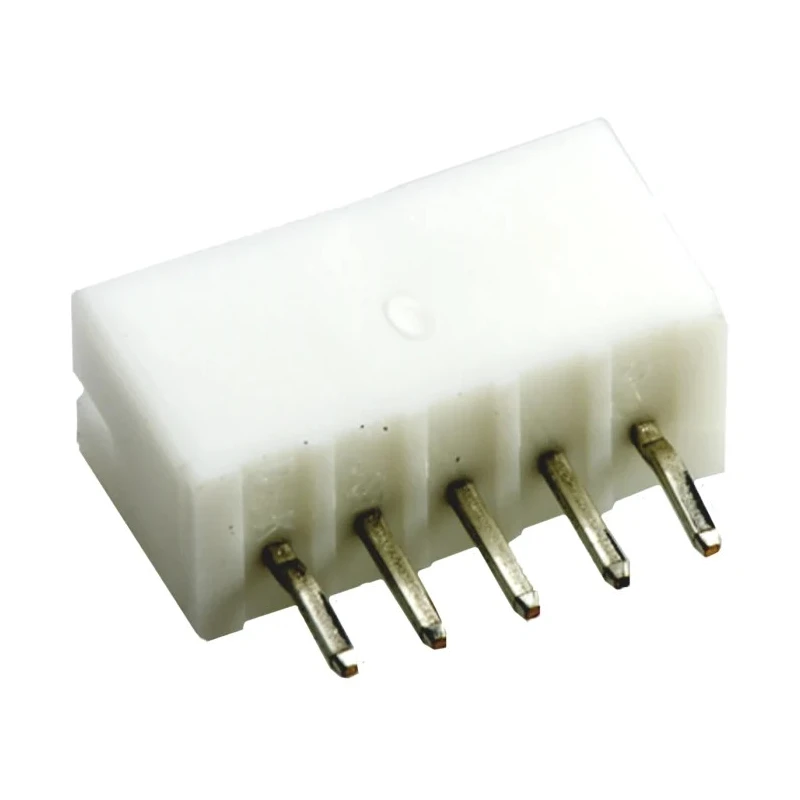

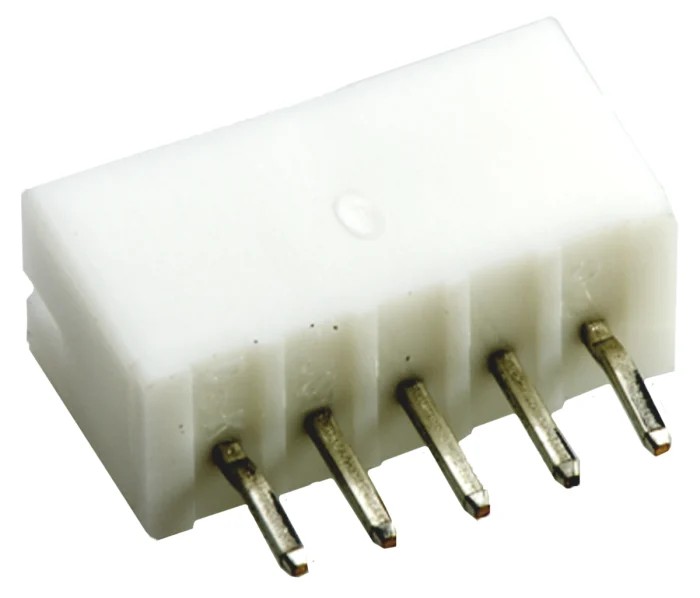

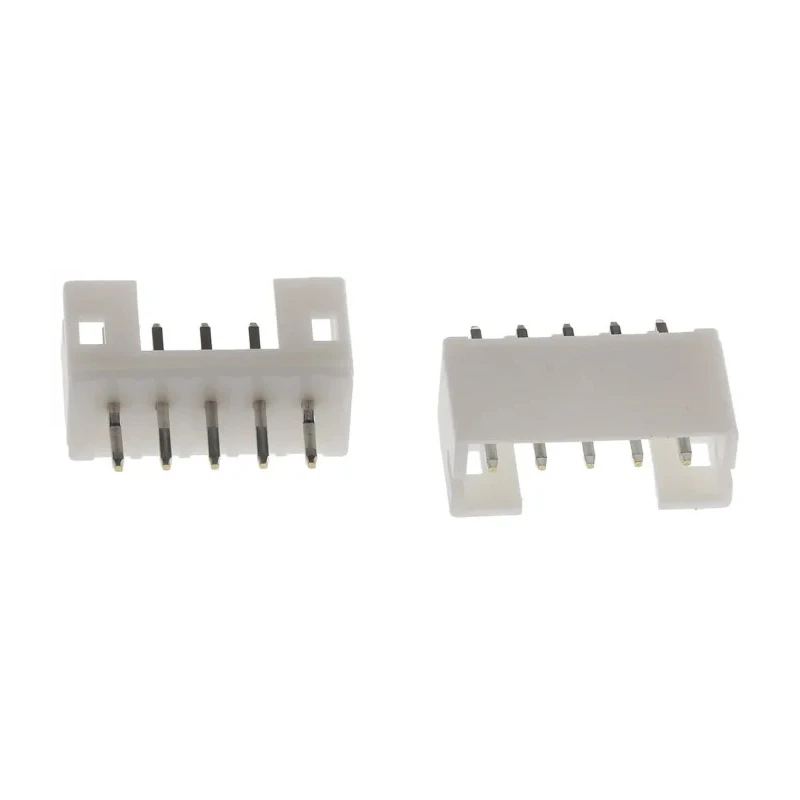

JST PH Series Shrouded Straight Through Hole PCB Header 5 Contact 2 mm Pitch 1 Row B5B-PH-K-S(LF)(SN)

JST B5B-PH-K-S(LF)(SN) is a shrouded, straight through-hole PCB header from the JST PH series, featuring 5 female contacts arranged in a single row with 2 mm pitch spacing. This connector is designed for wire-to-board connections, providing high reliability in densely packed PCB assemblies.

The header's polyamide housing ensures durability and excellent thermal properties, while the brass contacts plated with tin afford good corrosion resistance and conductivity. Both the tail and mating pins have a length of 3.4 mm, optimized for soldering and mating security.

Its current rating of 2 amperes and voltage rating of 100 volts make it suitable for various low-power electronic applications. The connector maintains stable operation within a temperature range of -25°C to 85°C, meeting the requirements for industrial and commercial PCB connectivity.

This shrouded header type enhances safety by protecting exposed contacts from accidental contact and damage, ideal for high-density, low-profile PCB layouts. It is mounted using through-hole technology for robust mechanical and electrical performance.

Originating from Malaysia, this PCB header is utilized extensively in electronic devices, manufacturing equipment, and assembly lines where dependable wire-to-board connections are critical. Its compatibility with standard JST PH series accessories and connectors simplifies system integration.

This PCB header supports a current rating of 2A ensuring reliable electrical connections. The housing material is polyamide, providing durability and heat resistance. It features brass contact material plated with tin for corrosion resistance.

The tail and mating pin lengths are both 3.4 mm, offering secure soldering and mating. Designed for wire-to-board connections with shrouded protection for safety. Operates reliably across temperatures from -25°C to 85°C.

Suitable for through-hole mounting on printed circuit boards. Rated voltage is 100V, complying with typical PCB connector voltages. Manufactured in Malaysia to ensure quality standards. Packaged for industrial and electronic manufacturing applications.
