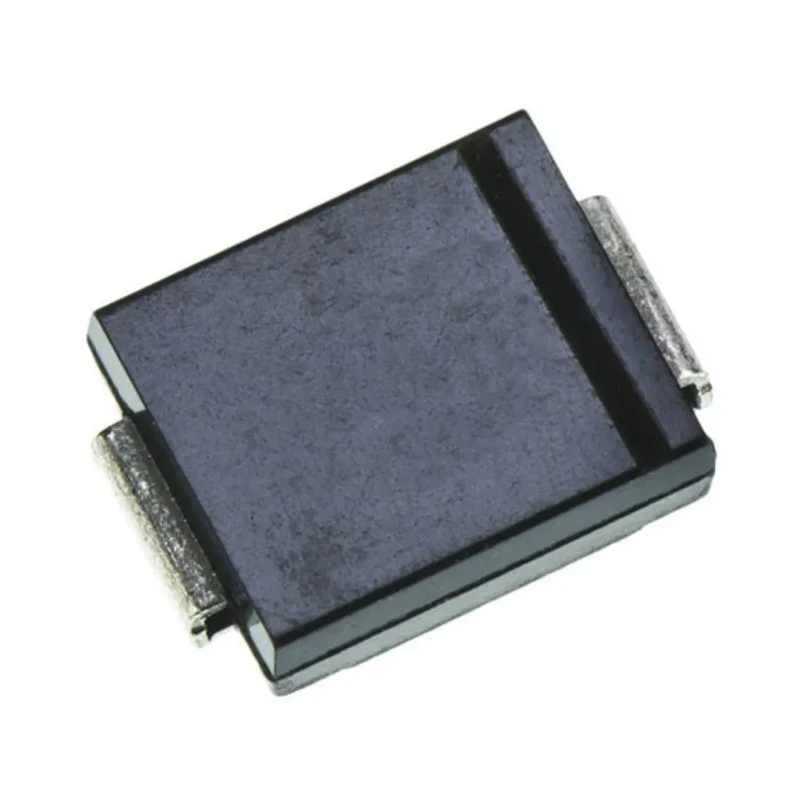

Bourns 1-Element Bi-Directional TVS Diode Surface Mount DO-214 Package 3 kW, 28.9V Breakdown Voltage SMLJ26CA-Q

Bourns SMLJ26CA-Q is a 1-element bidirectional Transient Voltage Suppressor (TVS) diode housed in a surface mount DO-214 package, engineered for protecting sensitive electronic circuits against transient voltage spikes. This diode achieves a peak pulse power dissipation of 3 kilowatts, offering robust transient overvoltage protection for electronic components in automotive, industrial, telecom, and consumer electronics.

The device operates with a minimum breakdown voltage of 28.9 volts and features a maximum reverse stand-off voltage of 26 volts. It effectively clamps voltage transients at 42.1 volts, reducing the risk of damage from surge events. Its fast response time, typically less than 1 picosecond, guards circuits promptly against voltage spikes.

Designed for surface mount applications, the compact DO-214 package (7.11 mm length x 6.22 mm width x 2.41 mm height) enables efficient PCB layout and minimizes space consumption. It supports a wide temperature range from -55°C to 150°C, ensuring reliable performance in harsh environments.

Compliance with the automotive AEC-Q101 standard certifies its suitability for automotive electronic systems. Additionally, the diode includes ESD protection capabilities with a test current of 1 mA and maintains an ultra-low maximum reverse leakage current of 2 microamperes, contributing to energy efficiency.

This TVS diode is ideal for applications requiring transient voltage protection such as protecting power buses, I/O interfaces, and sensitive electronic components in industrial, telecom, entertainment, automotive, and consumer equipment. Its single diode configuration allows bidirectional transient suppression, providing versatile protection in a minimally sized component.

Single diode configuration designed for bidirectional transient voltage suppression. Peak pulse power dissipation of 3 kilowatts ensures robust surge protection. Breakdown voltage of 28.9 volts with clamping voltage at 42.1 volts.

Compact dimensions: length 7.11 mm, width 6.22 mm, height 2.41 mm facilitate surface mounting. Wide operating temperature range from -55°C to 150°C for enhanced reliability. Meets automotive standard AEC-Q101 for automotive applications.

ESD protection enabled with a test current rating of 1 mA. Low maximum reverse leakage current of 2 microamperes minimizes power loss. Explore the range of semiconductor TVS Diodes and advanced electronic components at EnvMart for reliable circuit protection solutions.
