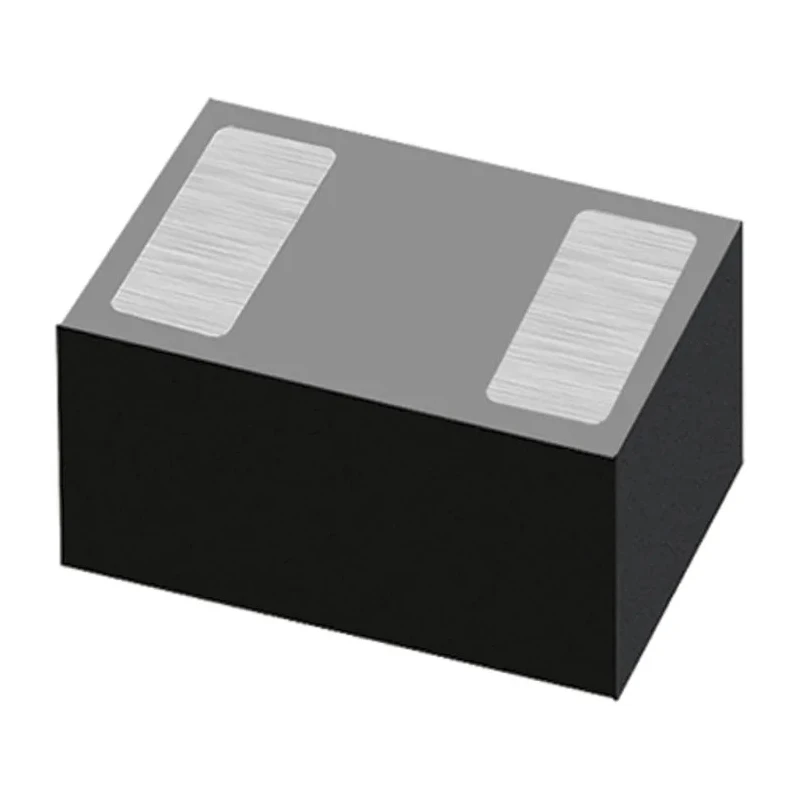

Littelfuse 1-Element Bi-Directional TVS Diode Surface Mount 2-Pin 0603 Package PGB1010603NRHF

Littelfuse PGB1010603NRHF is a 1-element bi-directional TVS diode specifically designed for surface mount applications, housed in a compact 0603 package with 2 pins. It provides efficient electrostatic discharge (ESD) protection with a clamping voltage of 150V, making it an essential component for safeguarding sensitive electronics against voltage spikes.

This diode operates reliably across a wide temperature range from -65°C to 125°C, ensuring durability in various industrial, laboratory, and consumer electronics environments. Its small dimensions - 1.66mm length, 0.84mm width, and 0.36mm height - allow it to fit on compact PCB layouts, facilitating dense circuit designs.

The device employs PulseGuard® technology with polymer composite materials that suppress fast-rising ESD transients, offering ultra-low capacitance and low leakage current to maintain signal integrity in high-speed data lines. This makes it ideal for use in interfaces like USB 2.0, IEEE1394, HDMI, and DVI where data integrity is critical.

Additional performance advantages include extended pulse life over prior versions and reduced trigger voltage for improved protection. The lead-free construction is compliant with environmental regulations targeting hazardous substances.

Littelfuse PGB1010603NRHF finds wide utility in industrial automation, communication devices, consumer electronics, and other applications requiring stringent ESD protection to enhance reliability and longevity of electronic systems.

The diode features a single element configuration with bi-directional polarity for versatile protection. It has a clamping voltage of 150V ensuring reliable suppression of voltage spikes. Designed for surface mount applications in compact 0603 packages measuring 1.66mm length by 0.84mm width and 0.36mm height.

Operating temperature ranges from -65°C to 125°C for robust performance in varying environments. Offers ultra-low capacitance suited for high-speed data line applications maintaining signal integrity. Features pulse-guard technology for extended pulse life and fast response time.

Lead-free construction aligns with environmental compliance standards. Manufactured in the Philippines, ensuring quality and reliability. Ideal for protecting USB 2.0, IEEE1394, HDMI, DVI, and other high-speed interfaces.
