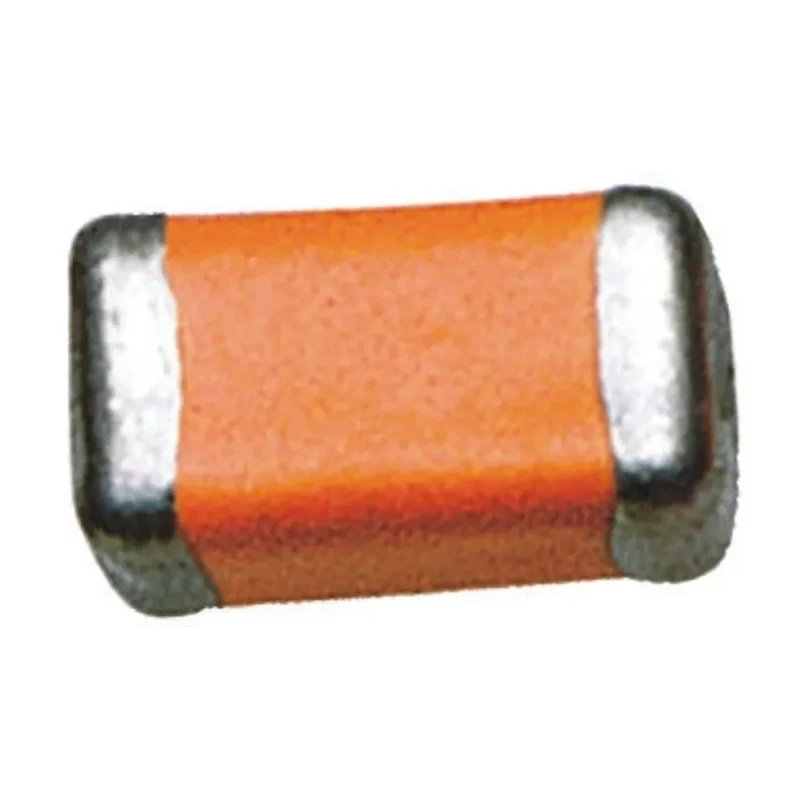

KYOCERA AVX 2.7 pF Multilayer Ceramic Capacitor, 25V dc, 0.1 pF Tolerance, Surface Mount 04023J2R7BBSTR

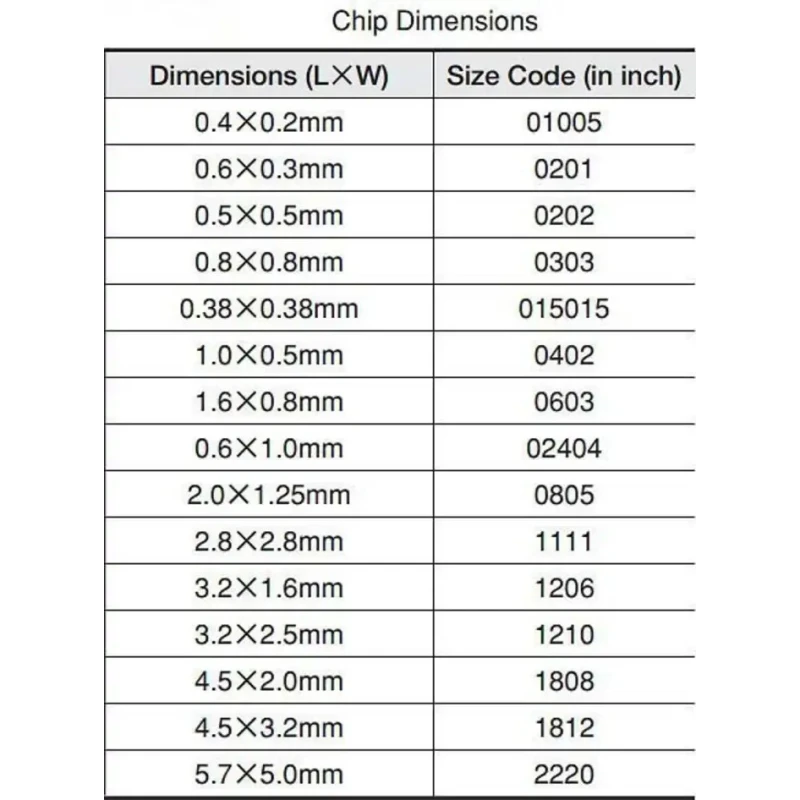

KYOCERA AVX 04023J2R7BBSTR is a multilayer ceramic capacitor designed to deliver precise electrical performance in surface mount technology applications. It features a capacitance of 2.7 pF with an extremely tight tolerance of 0.1 pF, operating safely at 25V dc voltage. The capacitor is sized in the industry standard 0402 package, measuring 1mm in length, 0.55mm in width, and 0.4mm in height, making it ideal for compact PCB designs in electronic equipment.

Constructed with high purity electrodes, this capacitor offers very low and reliable Equivalent Series Resistance (ESR), enhancing signal fidelity. The use of a highly pure C0G dielectric ensures minimal capacitance loss even at frequencies over 40 GHz, making it suitable for advanced high-frequency circuits such as RF and microwave applications. It exhibits high insulation resistance and a robust breakdown voltage characteristic.

Designed within a wide operating temperature range from -55°C to 125°C, this component is well suited for industrial, automotive, and telecommunications sectors requiring stability and durability under varying environmental conditions. The capacitor does not conform to automotive standards but maintains reliability for general surface mount uses.

The termination style is surface mount, compatible with automated SMT assembly lines, making it an excellent choice for volume manufacturing. Its Accu-P series status ensures tight dimensional control, providing uniform inductance and capacitance from unit to unit, which is crucial for high precision electronic circuits.

Typical applications include filtering, timing, and coupling in electronic systems, particularly where miniature size and high-frequency performance are required. This capacitor is an essential component in the electronics industry, supporting applications in consumer electronics, communications equipment, instrumentation, and industrial systems.

High purity electrodes reduce ESR and improve reliability. C0G dielectric supports high insulation resistance and low losses. Precisely manufactured to tight dimensional and capacitance tolerances. Small 0402 package is perfect for dense PCB assemblies.

Wide temperature range of -55°C to 125°C for harsh environments. Surface mount termination enables reliable automated assembly. Accu-P series ensures unit-to-unit inductance uniformity. Reliable performance for RF, microwave, and general electronic applications.
