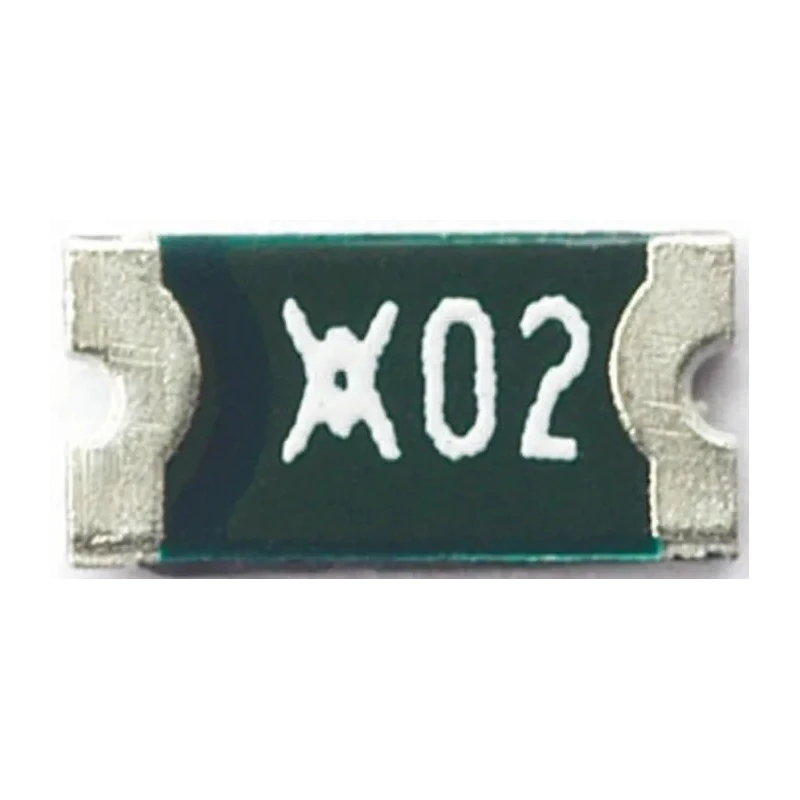

Littelfuse Resettable Fuse 0.16A 48V DC Surface Mount nanoSMDC016F NANOSMDC016F
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 48V dc |
| Brand | Littelfuse |
| Height | 1mm |
| Length | 3.4mm |
| Model | NANOSMDC016F |
| Width | 1.8mm |
| Current Rating | 160mA |
| Series | nanoSMDC016F |
| Maximum Operating Temperature | 85°C |
| Trip Current | 0.45A |
| Power Dissipation | 0.5W |
| Terminal Material | Tin Plated |
| Time to Trip | 0.3s |
| Hold Current | 0.16A |
| Minimum Resistance | 1.1Ω |
| Maximum Resistance | 5Ω |
Key Features
- Provides reliable overcurrent protection for sensitive electronics.
- Features a 0.16A hold current and 0.45A trip current rating.
- Operates at a maximum voltage of 48V DC for a wide range of low-voltage applications.
- Compact SMD (Surface Mount Device) form factor with dimensions of 3.4mm × 1.8mm × 1mm.
- Automatic, maintenance-free reset enables thousands of protection cycles.
- Quick response time with 0.3s time to trip under fault conditions.
- Manufactured with tin-plated terminals for secure and efficient board connection.
- Low minimum resistance of 1.1Ω and maximum dissipation of 0.5W for efficient performance.
Product Description
The Littelfuse NANOSMDC016F resettable fuse is engineered to provide effective and automatic overcurrent protection for electronic circuits. Featuring an 0.16 ampere hold current and capable of operation up to 48V DC, this PolySwitch nanoSMDC series device employs advanced polymeric positive temperature coefficient (PPTC) technology for rapid transition from a low to high resistance state upon detection of overload or short circuit conditions. Once the power is cycled and the fault is cleared, the fuse automatically resets and returns to its low resistance state, offering maintenance-free, repeatable protection over thousands of cycles.
This particular model is housed in an ultra-compact surface mount package, measuring just 3.4mm in length, 1.8mm in width, and 1mm in height. It is designed specifically for modern, densely populated printed circuit boards where board space is at a premium and fast response is crucial to protect sensitive components. The fuse's tin-plated terminals ensure stable and convenient solder mounting with robust electrical performance over the device’s life.
Key technical parameters include a hold current of 0.16A, a trip current of 0.45A, a typical time to trip of 0.3 seconds, minimum and maximum resistance of 1.1Ω and 5Ω respectively, and a maximum operating temperature of 85°C. The maximum power dissipation is 0.5W. Thanks to its tiny size, the device eliminates the need for an external fuseholder, further simplifying board designs.
Main applications for the Littelfuse NANOSMDC016F include power supplies, transformers, automotive and medical equipment, security systems, computers and peripherals, instrumentation, power switching devices, and telecom equipment. Its maintenance-free performance and automatic reset capability make it well suited to environments requiring repeated protection events and minimal service intervention.
The Littelfuse NANOSMDC016F resettable fuse is an ideal solution for engineers and OEMs seeking high reliability, compact size, and repetitive circuit protection in demanding electronic designs. Its fast acting protection helps improve system safety, equipment uptime, and board-level reliability across industrial, communications, and consumer applications.
Discover more Littelfuse resettable fuses and circuit protection devices in the Circuit Breakers & Fuse category for comprehensive solutions tailored to electronic reliability and safety.
Explore more products in our Electrical Fuse category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this resettable fuse is 0.16A.
It can operate at a maximum voltage of 48V DC.
The typical time to trip under fault conditions is 0.3 seconds.
The dimensions of this surface mount fuse are 3.4mm in length, 1.8mm in width, and 1mm in height.
The trip current rating is 0.45A.
The terminals are made of tin-plated material for secure connections.
The maximum operating temperature is 85°C.
The minimum resistance is 1.1Ω.
This fuse is suitable for applications such as power supplies, automotive equipment, medical devices, and telecom equipment.
The maximum power dissipation is 0.5W.
It automatically resets after the fault is cleared and the power is cycled, requiring no maintenance.
The maximum resistance is 5Ω.
