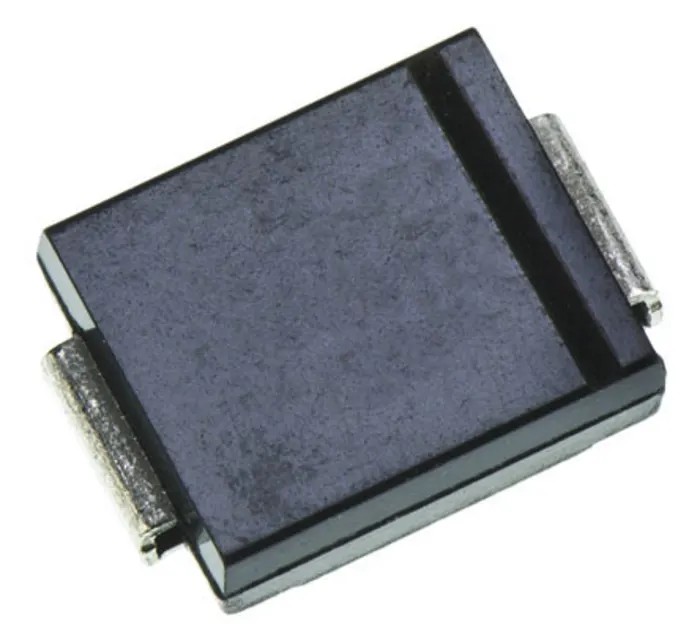

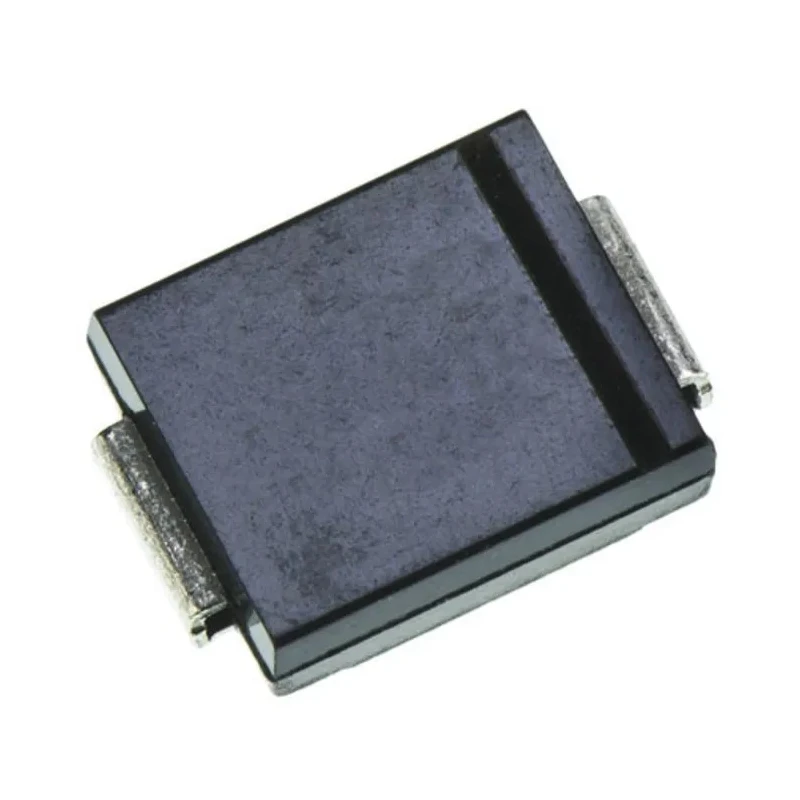

Littelfuse 1-Element Bi-Directional TVS Diode 5000 W, 2-Pin DO-214AB 5.0SMDJ33CA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Littelfuse |
| Height | 2.41mm |
| Length | 7.11mm |
| Model | 5.0SMDJ33CA |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | 5.0 SMDJ |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 53.3V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 36.7V |
| Maximum Reverse Stand-off Voltage Vwm | 33V |
| Peak Pulse Power Dissipation Pppm | 5000W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 93.9A |
| Maximum Reverse Leakage Current | 5μA |
| High temperature soldering guaranteed | 260°C/40 seconds at terminals |
| Fast response time | typically less than 1.0ps from 0V to BV min |
Key Features
- Provides bi-directional transient voltage suppression to protect sensitive electronics.
- Features a single diode configuration in a compact surface mount DO-214AB package.
- Rated for peak pulse power dissipation of 5000 W with fast response time.
- Clamps voltage at 53.3 V with a minimum breakdown voltage of 36.7 V.
- Operates reliably between -65°C and 150°C with low leakage current.
- Offers ESD protection and withstands 93.9 A maximum peak pulse current.
- Glass passivated chip junction for durability and stability.
- Lead-free matte tin plating with high temperature soldering guaranteed at 260°C for 40 seconds.
Product Description
The Littelfuse 5.0SMDJ33CA 1-Element Bi-Directional TVS Diode provides critical voltage transient protection for sensitive electronic circuits in industrial, electronics manufacturing, and semiconductor applications. Its robust design ensures protection against lightning-induced surges and other transient voltage events.
This device features a peak pulse power rating of 5000 W, efficiently clamping voltage spikes to a maximum of 53.3 V while maintaining a minimum breakdown voltage of 36.7 V. The surface mount DO-214AB package with a 2-pin configuration optimizes board space and allows for easy integration into compact circuits.
The diode offers fast response times typically less than 1 picosecond, making it ideal for high-speed applications. It operates over a wide temperature range from -65°C to 150°C, ensuring reliability under harsh operating conditions.
Additional attributes include very low leakage current of 5 μA and ESD protection, withstanding peak pulse currents up to 93.9 A. Its glass passivated chip junction enhances longevity and performance stability.
The packaging uses matte tin lead-free plating, withstanding soldering temperatures up to 260°C for 40 seconds, ensuring compliance with environmental and manufacturing standards. Provides bi-directional transient voltage suppression to protect sensitive electronics.
Features a single diode configuration in a compact surface mount DO-214AB package. Rated for peak pulse power dissipation of 5000 W with fast response time. Clamps voltage at 53.3 V with a minimum breakdown voltage of 36.7 V.
Operates reliably between -65°C and 150°C with low leakage current. Offers ESD protection and withstands 93.9 A maximum peak pulse current. Glass passivated chip junction for durability and stability. Lead-free matte tin plating with high temperature soldering guaranteed at 260°C for 40 seconds.
This Littelfuse TVS Diode is ideal for industrial electronics, power supplies, semiconductor devices, and other applications requiring robust transient voltage protection to enhance equipment durability and safety.
Explore further electronics and semiconductor solutions at EnvMart for comprehensive protection and component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Littelfuse 5.0SMDJ33CA has a peak pulse power dissipation rating of 5000 W.
It clamps voltage at 53.3 V with a minimum breakdown voltage of 36.7 V.
This diode operates reliably between -65°C and 150°C.
It can withstand a maximum peak pulse current of 93.9 A.
The diode comes in a surface mount DO-214AB package.
The dimensions of this model are 2.41 mm in height, 7.11 mm in length, and 6.22 mm in width.
It features a single diode configuration and is bi-directional.
The maximum reverse leakage current is 5 μA.
It has a fast response time, typically less than 1 picosecond from 0V to the minimum breakdown voltage.
This model provides bi-directional transient voltage suppression and ESD protection for sensitive electronics.
The Littelfuse 5.0SMDJ33CA is manufactured in India.
It can withstand high temperature soldering at 260°C for 40 seconds at the terminals.
