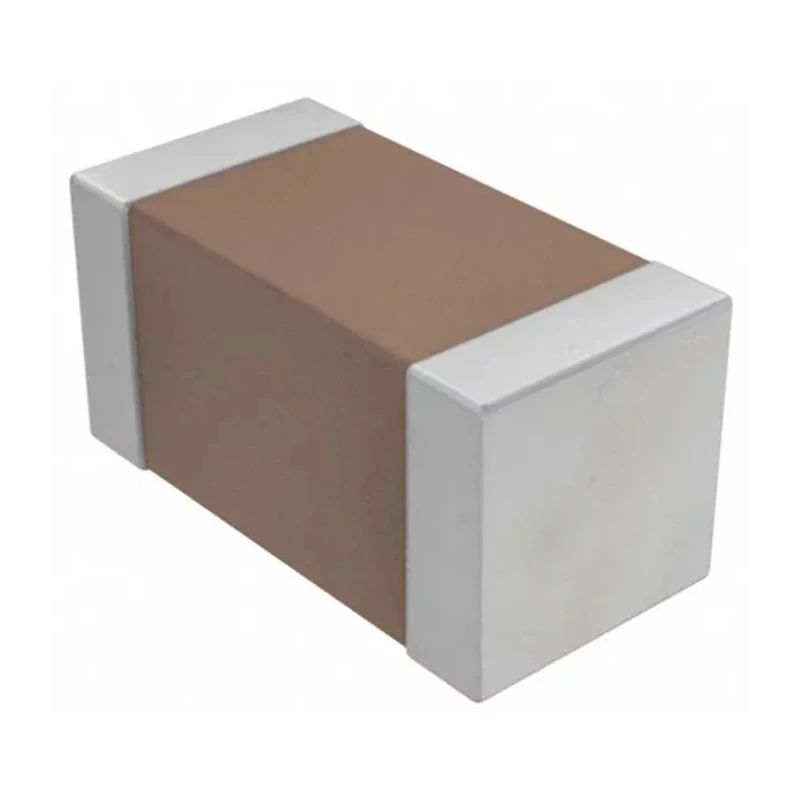

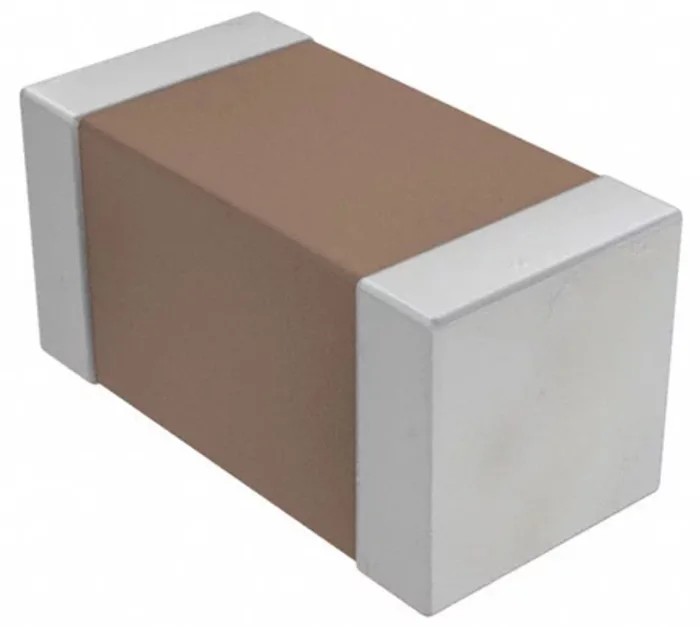

TDK Multilayer Ceramic Capacitor 18 pF 50V dc ±5% Surface Mount 0603 Package CGA1A2C0G1H180J030BA

TDK CGA1A2C0G1H180J030BA is a high-reliability multilayer ceramic capacitor featuring an 18 pF capacitance, rated for 50V dc operation with a tight tolerance of ±5%. This capacitor uses a C0G dielectric material, known for its excellent temperature stability and frequency characteristics, making it suitable for precision applications in industrial, automotive, and electronic equipment.

The compact 0603 surface mount package measures 0.6mm in length, 0.3mm in width, and 0.3mm in height, supporting high-density PCB layouts. Nickel barrier terminations coated with plated Tin enable solder mounting, ensuring secure assembly on circuit boards.

This component is AEC-Q200 qualified, meeting automotive industry standards for high temperature and mechanical stress tolerance, rated from -55°C to 125°C. Its low ESR and ESL minimize energy losses and self-heating, enhancing performance in sensitive electronic circuits.

Common applications include automotive battery smoothing lines, sensor modules, engine control units, anti-lock braking systems, smart meters, smart grids, and solar power inverters. These capacitors are also utilized in telecommunication devices, mobile phones, and tuner circuits due to their stability and reliable performance.

Packaged in tape and reel for compatibility with automated pick-and-place equipment, the CGA series delivers consistent performance through a mature manufacturing process ensuring physical robustness, heat resistance, and reliability.

Constructed with a C0G dielectric for superior temperature stability and accuracy. AEC-Q200 qualified to comply with stringent automotive standards. Compact 0603 surface mount package enables high-density circuit integration.

Operating temperature range from -55°C to 125°C suitable for harsh environments. Low ESR and ESL enhance frequency characteristics and reduce self-heating. Nickel barrier terminations with tin plating assure reliable solder connections.

Application versatility from automotive to industrial and consumer electronics. Available in tape and reel packaging for automatic assembly processes. Explore the comprehensive range of TDK Multilayer Ceramic Capacitors to meet diverse electronic design requirements on EnvMart.
