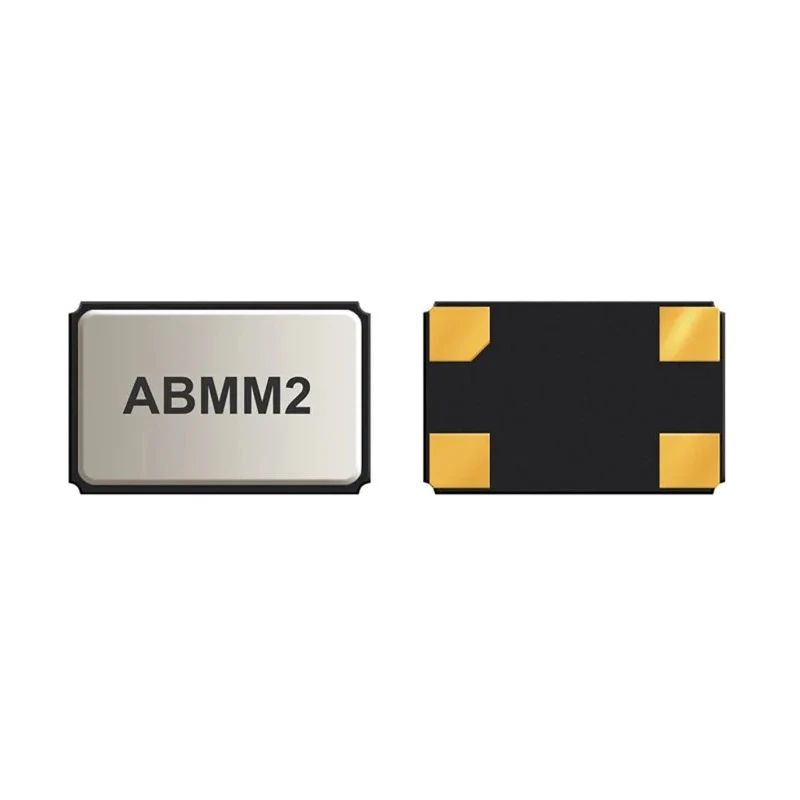

Abracon 12 MHz Crystal Unit Surface Mount 4-Pin 6 mm x 3.5 mm x 1.2 mm ±20 ppm Frequency Tolerance ABMM2-12.000MHZ-E2-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 12 MHz Crystal Unit Surface Mount 4-Pin 6 mm x 3.5 mm x 1.2 mm ±20 ppm Frequency Tolerance ABMM2-12.000MHZ-E2-T

Name: Abracon 12 MHz Crystal Unit Surface Mount 4-Pin 6 mm x 3.5 mm x 1.2 mm ±20 ppm Frequency Tolerance ABMM2-12.000MHZ-E2-T
Brand: Abracon
SKU: 150824



Category Crystal Units Brand Abracon Condition New

Specifications

Country of Origin	China
Brand	Abracon
Height	1.2mm
Length	6mm
Model	ABMM2-12.000MHZ-E2-T
Packaging	Tape & Reel
Width	3.5mm
Mount Type	Surface
Series	ABmm²
Maximum Operating Temperature	70°C
Package Type	Surface Mount
Minimum Operating Temperature	-20°C
Standards/Approvals	RoHS, REACH
Pin Count	4
Standard Frequency	12MHz
Load Capacitance	18pF
Series Resistance	50Ω

Key Features

This crystal unit operates at a standard frequency of 12 MHz.
It features a ±20 ppm frequency tolerance and frequency stability.
The surface mount design includes four pins for easy PCB integration.
The device supports a load capacitance of 18 pF and has a series resistance of 50 Ω.
Operating temperature ranges from -20°C to 70°C suitable for various industrial environments.
Packaged in tape and reel format designed for automated assembly processes.
RoHS and REACH compliant, ensuring environmental standards are met.
Ideal for use in computers, microprocessors, modems, communication, and test equipment.

Product Description

Abracon ABMM2-12.000MHZ-E2-T Crystal Unit Surface Mount 12 MHz is a high-performance frequency control device designed to provide stability and precision for electronic applications. This crystal unit features a compact surface mount ceramic package with a maximum height of 1.2 mm, making it suitable for modern low-profile PCB designs.

The unit operates at a standard frequency of 12 MHz with a tight ±20 ppm frequency tolerance and stability, ensuring accurate signal timing. It incorporates a load capacitance of 18 pF and a series resistance of 50 Ω, characteristics critical for oscillators and timing circuits. The crystal is packaged in a tape and reel format, facilitating ease of use in automated manufacturing lines.

With operating temperatures ranging from -20°C to 70°C, this crystal unit is reliable under typical industrial environmental conditions. It complies with RoHS and REACH standards, supporting environmentally responsible manufacturing practices.

Designed for a variety of applications including computers, modems, microprocessors, communication systems, and test equipment, this Abracon crystal unit supports diverse electronics designs requiring stable frequency sources.

This crystal unit operates at a standard frequency of 12 MHz. It features a ±20 ppm frequency tolerance and frequency stability. The surface mount design includes four pins for easy PCB integration. Dimensions are 6 mm length, 3.5 mm width, and 1.2 mm height.

The device supports a load capacitance of 18 pF and has a series resistance of 50 Ω. Operating temperature ranges from -20°C to 70°C suitable for various industrial environments. Packaged in tape and reel format designed for automated assembly processes.

RoHS and REACH compliant, ensuring environmental standards are met. Ideal for use in computers, microprocessors, modems, communication, and test equipment. Browse the Electronics Components category on EnvMart for additional Crystal Units and electronic components from trusted brands.
