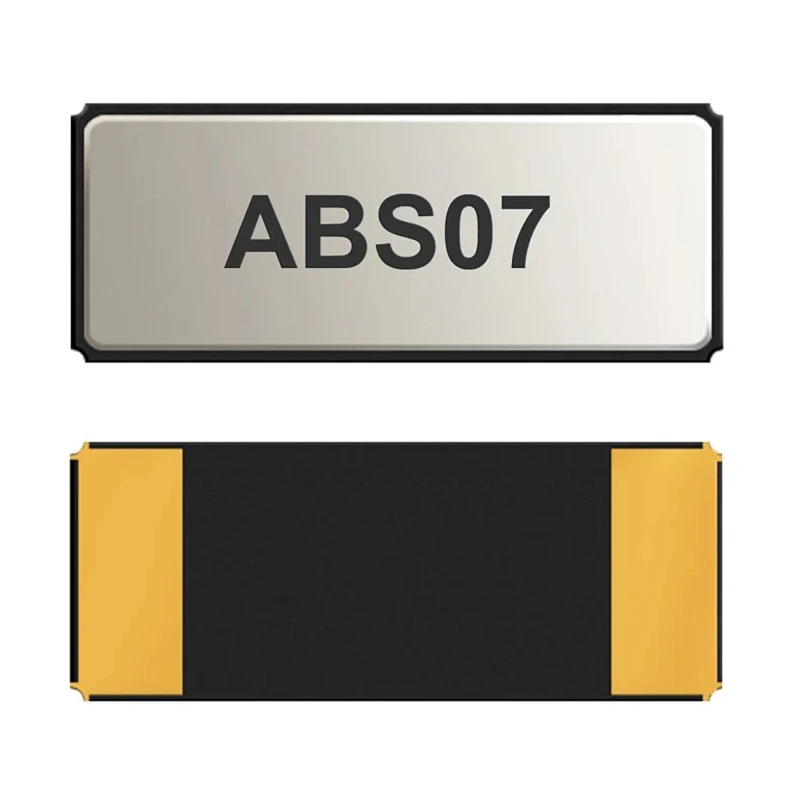

Abracon 32.768 kHz Crystal Unit Surface Mount 2-Pin 0.9 mm Height 3.2 mm Length 1.5 mm Width ±20 ppm ABS07-120-32.768KHZ-T

Abracon ABS07-120-32.768KHZ-T is a precision 32.768 kHz crystal unit designed for surface mount applications, featuring a 2-pin package with a slim height of 0.9 mm and compact length and width of 3.2 mm and 1.5 mm respectively. The crystal provides a frequency tolerance of ±20 ppm and a load capacitance of 6 pF, suitable for low power designs requiring minimal series resistance and stable oscillation.

The sealed ceramic package construction ensures excellent resistance to environmental influences and heat, making it ideal for industrial and commercial applications. It can operate reliably within a temperature range from -40°C to +85°C.

This crystal is guaranteed with a maximum series resistance of 60kΩ, which supports power-sensitive oscillators commonly used in communication devices, handheld measurement instruments, PDAs, and smartphones. Its compact size with a low profile height is tailored for high-density circuit boards, ensuring space-efficient designs.

The product complies with RoHS and REACH standards, verifying its adherence to environmental safety regulations. Packaged in tape and reel format, it is optimized for high-volume automated PCB assembly lines.

Applications include timing references in wireless communications, industrial measurement devices, consumer electronics, and embedded systems requiring stable and precise timing signals.

Compact 2-pin surface mount package for efficient PCB mounting. Small dimensions suitable for high-density circuit layouts. Low ESR with 60kΩ maximum series resistance for power sensitive designs. Wide operating temperature range from -40°C to +85°C.

Seam sealed ceramic package for robustness and reliability. Compliance with RoHS and REACH environmental standards. Precision frequency stability with ±20 ppm tolerance. Load capacitance 6 pF optimized for oscillator circuits.

Tape and reel packaging supports automated manufacturing. Explore more Crystal Units and electronic components at EnvMart for industrial, laboratory, and commercial applications requiring trusted precision timing devices.
