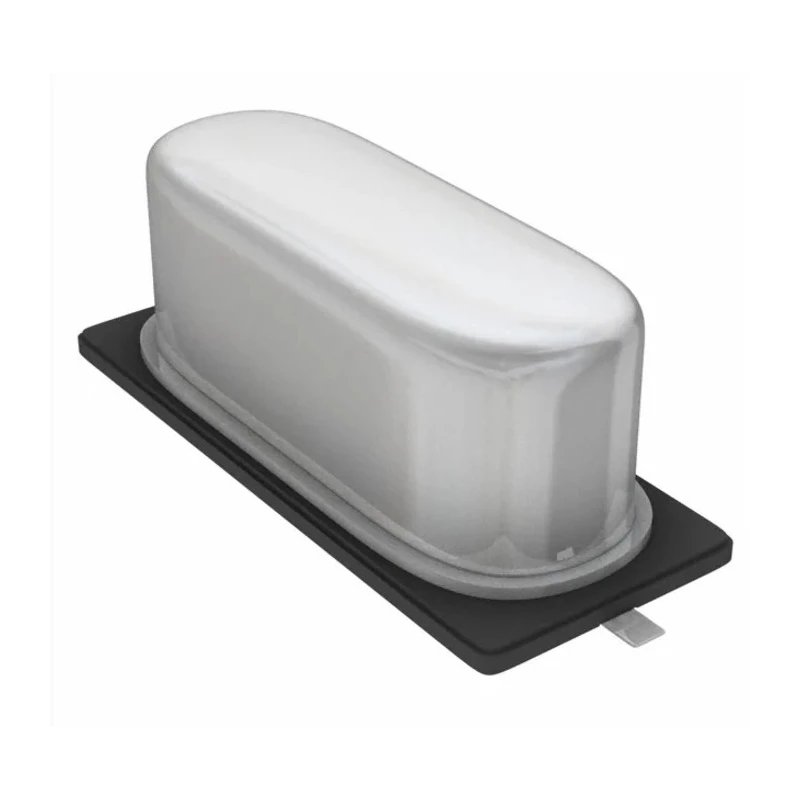

Abracon 16 MHz Crystal Unit Surface Mount HC-49, ±30 ppm Frequency Tolerance, 18 pF Load Capacitance ABLS2-16.000MHZ-D4Y-T
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 3.3mm |
| Length | 11.4mm |
| Model | ABLS2-16.000MHZ-D4Y-T |
| Packaging | Tape & Reel |
| Width | 4.7mm |
| Mount Type | Surface |
| Series | ABLS2 |
| Maximum Operating Temperature | 85°C |
| Package Type | HC-49 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | REACH, RoHS |
| Standard Frequency | 16MHz |
| Load Capacitance | 18pF |
| Series Resistance | 40Ω |
Key Features
- This crystal unit utilizes an HC-49 package type with dimensions 11.4 mm length, 4.7 mm width, and 3.3 mm height.
- It operates reliably within a temperature range from -40°C to 85°C for extended temperature stability.
- The frequency stability and tolerance are tight at ±30 ppm, ensuring precise oscillations for microprocessor applications.
- Its surface mount technology facilitates efficient PCB integration and automated assembly processes.
- Series resistance is rated at 40 ohms, supporting stable frequency output in wireless and computing devices.
- Packaged in tape & reel form to support volume manufacturing and insertion efficiency.
- Compliant with REACH and RoHS standards, ensuring environmental safety and regulatory compliance.
- Ideal for applications including computers, modems, microprocessors, and wireless communication equipment.
Product Description
Abracon ABLS2-16.000MHZ-D4Y-T is a 16 MHz crystal unit designed for surface mounting on PCBs within compact electronic devices.
This component features a low profile HC-49 package with precise dimensions of 11.4 mm length, 4.7 mm width, and a reduced height of 3.3 mm, making it suitable for thin and space-constrained equipment.
The crystal offers excellent frequency stability and tolerance at ±30 ppm, coupled with an 18 pF load capacitance, supporting reliable operation over a broad temperature range from -40°C to 85°C.
Its series resistance is specified at 40 ohms, which underpins stable frequency output crucial for timing and clock generation in microprocessors, modems, and wireless applications.
Manufactured under the ABLS2 series, this crystal unit is compliant with the RoHS and REACH directives, ensuring it adheres to strict environmental and hazardous substance regulations.
This crystal unit utilizes an HC-49 package type with dimensions 11.4 mm length, 4.7 mm width, and 3.3 mm height. It operates reliably within a temperature range from -40°C to 85°C for extended temperature stability. The frequency stability and tolerance are tight at ±30 ppm, ensuring precise oscillations for microprocessor applications.
Its surface mount technology facilitates efficient PCB integration and automated assembly processes. Series resistance is rated at 40 ohms, supporting stable frequency output in wireless and computing devices. Packaged in tape & reel form to support volume manufacturing and insertion efficiency.
Compliant with REACH and RoHS standards, ensuring environmental safety and regulatory compliance. Ideal for applications including computers, modems, microprocessors, and wireless communication equipment. This crystal unit is optimized for industrial and commercial electronic manufacturing, offering precise timing and frequency control essential for high-quality electronic designs.
Explore the Electronics Components category on EnvMart for a comprehensive selection of crystals and oscillators suitable for your PCB design and manufacturing needs.
Explore more products in our Crystal Units category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 16 MHz.
It has dimensions of 11.4 mm in length, 4.7 mm in width, and 3.3 mm in height.
The load capacitance is rated at 18 pF.
The series resistance is specified at 40 ohms.
It operates reliably within a temperature range from -40°C to 85°C.
It is packaged in tape & reel form to support volume manufacturing and insertion efficiency.
It is compliant with REACH and RoHS standards, ensuring environmental safety and regulatory compliance.
This model utilizes surface mount technology for efficient PCB integration.
It is ideal for applications including computers, modems, microprocessors, and wireless communication equipment.
The package type is HC-49, which is designed for surface mounting.
The crystal unit is manufactured by Abracon.
This model is part of the ABLS2 series.
