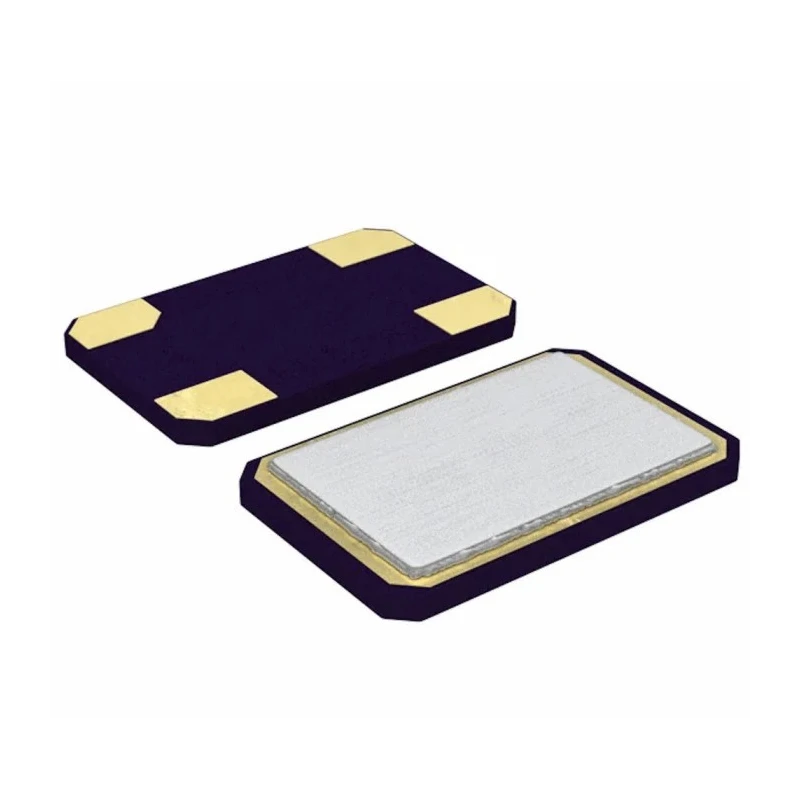

Abracon 8 MHz Surface Mount Crystal ±10 ppm Frequency Tolerance 10 pF Load Capacitance ABM3B-8.000MHZ-10-1-U-T
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 1.1mm |
| Length | 5mm |
| Model | ABM3B-8.000MHZ-10-1-U-T |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ABM3B |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS, REACH |
| Standard Frequency | 8MHz |
| Load Capacitance | 10pF |
| Series Resistance | 200Ω |
Key Features
- This surface mount crystal features a ceramic package with a metal lid for enhanced reliability.
- Standard frequency is 8 MHz with ±10 ppm frequency tolerance and stability.
- Load capacitance is rated at 10 pF, optimized for high-density applications.
- Package dimensions are 5 mm length, 3.2 mm width, and 1.1 mm height.
- Operation temperature ranges from -10°C to 60°C for stable performance in various environments.
- Series resistance is specified at 200 Ω ensuring signal integrity.
- Suitable for cellular telephones, pagers, PCMCIA, wireless applications, and communication equipment.
- RoHS and REACH compliant, meeting modern environmental standards.
Product Description
Abracon ABM3B-8.000MHZ-10-1-U-T is a surface mount crystal unit operating at 8 MHz frequency, designed for precision and reliability in timing circuits. It features a ceramic SMD package with metal lid, providing high stability and durability for industrial and commercial electronic applications.
The crystal exhibits a frequency tolerance and stability of ±10 ppm, making it ideal for critical timing functions in cellular telephones, pagers, PCMCIA, wireless devices, and communication testing equipment. It has a load capacitance of 10 pF and a series resistance of 200 Ω, ensuring optimal electrical performance.
Its compact package size measures 5 mm in length, 3.2 mm in width, and 1.1 mm in height, suitable for space-constrained circuit boards requiring surface mount technology. The device operates reliably within a temperature range of -10°C to 60°C, suitable for a wide range of industrial and consumer electronics environments.
This product complies with RoHS and REACH directives, supporting environmentally responsible manufacturing and usage. It is manufactured in China under the ABM3B series, representing quality and consistent performance.
This surface mount crystal features a ceramic package with a metal lid for enhanced reliability. Standard frequency is 8 MHz with ±10 ppm frequency tolerance and stability. Load capacitance is rated at 10 pF, optimized for high-density applications.
Package dimensions are 5 mm length, 3.2 mm width, and 1.1 mm height. Operation temperature ranges from -10°C to 60°C for stable performance in various environments. Series resistance is specified at 200 Ω ensuring signal integrity.
Suitable for cellular telephones, pagers, PCMCIA, wireless applications, and communication equipment. RoHS and REACH compliant, meeting modern environmental standards.
This Abracon crystal unit is widely used in industrial, telecommunications, consumer electronics, and wireless communication applications. It is essential in PCB assemblies requiring precise frequency control and stability. For further related products, browse the Crystal Units category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 8 MHz.
This model has a load capacitance rating of 10 pF, optimized for high-density applications.
The dimensions of this crystal unit are 5 mm in length, 3.2 mm in width, and 1.1 mm in height.
The series resistance for this crystal is specified at 200 Ω, ensuring signal integrity.
It operates reliably within a temperature range of -10°C to 60°C.
This crystal unit is packaged in tape and reel format.
Yes, it is compliant with RoHS and REACH standards, supporting environmentally responsible usage.
This model uses a surface mount type, suitable for space-constrained circuit boards.
It is suitable for use in cellular telephones, pagers, PCMCIA, wireless applications, and communication equipment.
The country of origin for this crystal unit is China.
This crystal belongs to the ABM3B series, which is known for its precision and reliability in timing circuits.
It features a ceramic package with a metal lid, enhancing reliability and stability.
