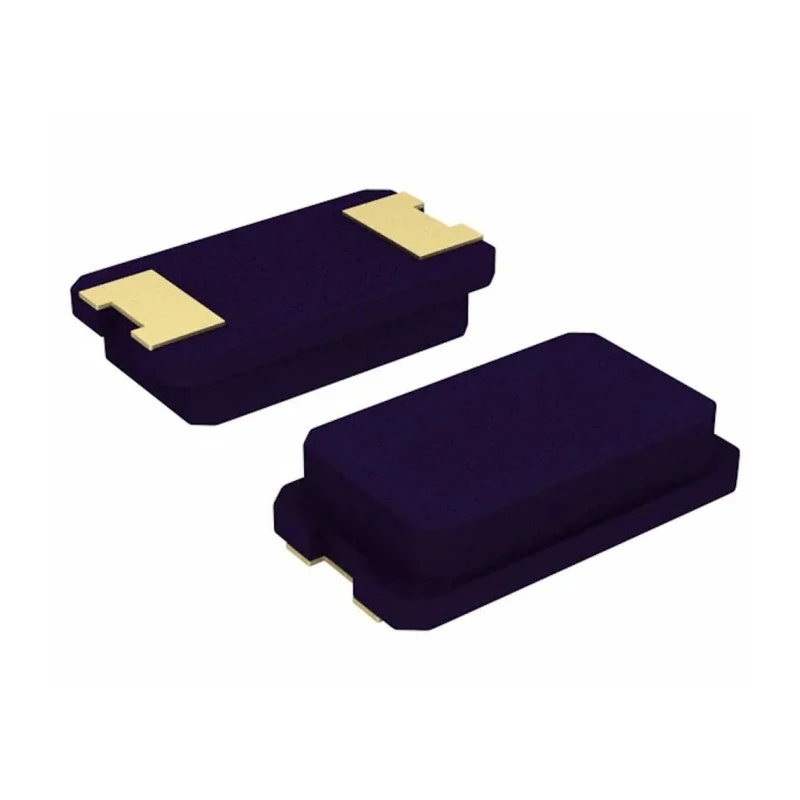

Abracon 12 MHz Surface Mount Crystal ±20 ppm Frequency Tolerance 18 pF Load Capacitance ABM7-12.000MHZ-D2Y-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.4mm |
| Length | 6mm |
| Model | ABM7-12.000MHZ-D2Y-T |
| Packaging | Tape & Reel |
| Width | 3.5mm |
| Mount Type | Surface |
| Series | ABM7 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | REACH, RoHS |
| Standard Frequency | 12MHz |
| Load Capacitance | 18pF |
| Series Resistance | 60Ω |
Key Features
- Features a compact surface mount ceramic package measuring 6 mm length, 3.5 mm width, and 1.4 mm height.
- Offers frequency stability of ±30 ppm with a series resistance of 60 Ω.
- Operates efficiently between -40°C and 85°C operating temperature range.
- Complies with REACH and RoHS environmental standards ensuring hazardous substance control.
- Designed for thin equipment and high-density industrial applications requiring high reliability.
Product Description
Abracon ABM7-12.000MHZ-D2Y-T is a high-reliability 12 MHz surface mount crystal from the ABM7 series, designed to meet demanding industrial and electronic applications.
This crystal features a low-profile ceramic SMD micro miniature package with dimensions of 6 mm length, 3.5 mm width, and 1.4 mm height, making it ideal for use in thin and compact electronic devices.
It provides excellent frequency accuracy with a tolerance of ±20 ppm and frequency stability of ±30 ppm, ensuring consistent oscillation in circuits. The load capacitance is specified at 18 pF, suitable for various circuit requirements.
The device operates reliably in a wide temperature range from -40°C to a maximum of 85°C, supported by a series resistance of 60 Ω, which ensures efficient electrical performance. Manufactured to comply with REACH and RoHS standards, this crystal guarantees environmental safety and compliance for use in modern electronic components.
Applications include use in thin electronic equipment, computers, modems, and other wide-temperature industrial environments where precision and durability are critical. Compact surface mount design for space-saving PCB layouts.
Wide operating temperature range supports industrial use cases. Complies with environmental safety standards REACH and RoHS. High frequency stability and low series resistance for reliable oscillations. Suitable for compact, thin equipment and communication devices.
Explore more electronic components like this ABM7 series crystal and related passive components at EnvMart for your industrial, commercial, or laboratory electronic design needs.
Explore more products in our Crystal Unit category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The frequency tolerance of this crystal is ±20 ppm.
This model has dimensions of 6 mm in length, 3.5 mm in width, and 1.4 mm in height.
The load capacitance specified for this crystal is 18 pF.
It operates reliably within a temperature range of -40°C to 85°C.
The series resistance of the ABM7-12.000MHZ-D2Y-T is 60 Ω.
This crystal complies with REACH and RoHS environmental standards.
It is packaged in tape and reel format.
This crystal is suitable for use in thin electronic equipment, computers, modems, and other industrial applications requiring precision.
The maximum operating temperature for the ABM7-12.000MHZ-D2Y-T is 85°C.
This model uses a surface mount design.
The frequency stability of this crystal is ±30 ppm.
The country of origin for this crystal is India.
