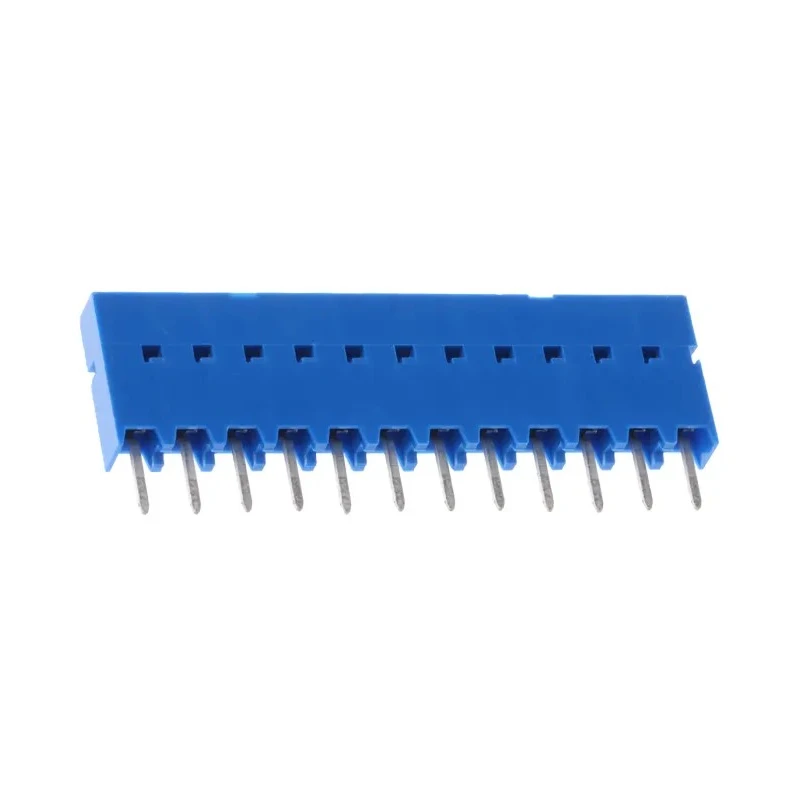

Amphenol Communications Solutions Dubox Series Straight Through Hole PCB Socket, 12-Contact, 1 Row, 2.54 mm 75915-412LF
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 1kV |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Operating Temperature | -65 °C → +125 °C |
| Current | 12A |
| Model | 75915-412LF |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Thermoplastic |
| Contact Material | Bronze |
| Series | Dubox |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Insulation resistance | 105 MΩ min |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Resistance | 15 mΩ max. (initial resistance) |
| Contact Plating | Matt Tin |
| Number of Contacts | 12 |
| Connector System | Board-to-Board |
Key Features
- The socket has a straight orientation suitable for through-hole mounting.
- Housing is made from durable glass filled thermoplastic rated to UL94 V-0.
- Contacts are bronze with matt tin plating ensuring low resistance and longevity.
- It operates within a -65°C to 125°C temperature range for stable performance.
- The socket supports up to 12A current with 1kV voltage rating.
- Contact resistance is low at a maximum of 15 milliohms initially.
- Insulation resistance is 105 MΩ minimum, enhancing reliability.
- Designed for industrial, electronic component assembly, and testing applications.
Product Description
Amphenol Communications Solutions 75915-412LF PCB Socket is a high-quality Dubox Series straight through hole receptacle designed for robust board-to-board interconnections. Featuring 12 contacts arranged in a single row with a fine 2.54 mm pitch, this socket supports solder termination through a through-hole mount technique.
The housing is constructed from glass filled thermoplastic material, rated to UL94 V-0 for flame retardance and mechanical durability, suitable for rigorous industrial environments. Bronze contact material with matt tin plating ensures excellent electrical conductivity and corrosion resistance. The socket exhibits an initial contact resistance of 15 milliohms maximum and an insulation resistance of no less than 105 megaohms, offering high reliability in electronic systems.
Operating temperature range from -65°C to +125°C allows this PCB Socket to function under demanding thermal conditions. Its rated current capacity is up to 12 amperes and a voltage endurance of 1 kilovolt, making it suitable for diverse electronic and communication applications in industrial, laboratory, manufacturing, and assembly environments.
The Dubox interconnection system assures low insertion force and reliable mechanical integrity, enhancing board assembly efficiency and performance. This product is made in France, meeting stringent quality standards.
The socket offers a straight orientation and a single-row configuration for versatile board-to-board connections. Glass filled thermoplastic housing provides high mechanical strength and excellent flame resistance. Bronze contacts plated with matt tin ensure durability and consistent electrical performance.
Suitable for through-hole solder mounting with a pitch of 2.54 mm for precision placement. Reliable operation within a wide temperature range from -65°C to 125°C. Designed for industrial electronics, testing, and manufacturing use cases.
Ensures low contact resistance and high insulation for signal integrity. Explore the extensive range of PCB connectors and sockets for your electronics applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this PCB socket is 12A.
The voltage rating of this socket is 1kV.
It operates within a temperature range of -65°C to +125°C.
The housing is made from glass filled thermoplastic, and the contacts are bronze with matt tin plating.
This socket has 12 contacts arranged in a single row.
This model supports through-hole mounting.
The initial contact resistance is a maximum of 15 milliohms.
The minimum insulation resistance is 105 MΩ.
Yes, it is designed for industrial, electronic component assembly, and testing applications.
The pitch size for the contacts is 2.54 mm.
This PCB socket is manufactured in France.
This model uses solder termination.
