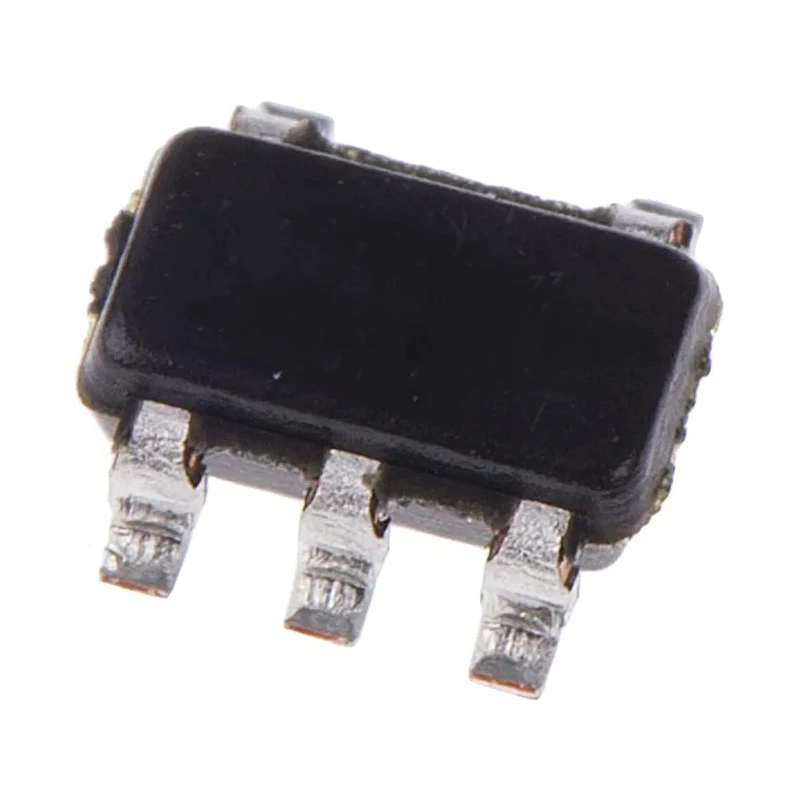

STMicroelectronics 4-Element Uni-Directional TVS Diode 400 W, 5-Pin SOT-23 ESDA6V1SC5

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 4-Element Uni-Directional TVS Diode 400 W, 5-Pin SOT-23 ESDA6V1SC5

Name: STMicroelectronics 4-Element Uni-Directional TVS Diode 400 W, 5-Pin SOT-23 ESDA6V1SC5
Brand: STMicroelectronics
SKU: 150086
Price: 0.22 USD
Availability: InStock



Category TVS Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.3mm
Length	3mm
Model	ESDA6V1SC5
Width	1.75mm
Mount Type	Surface
Series	ESDAxxSCx
Maximum Operating Temperature	125°C
Package Type	SOT-23
Minimum Operating Temperature	-40°C
Pin Count	5
Number of Elements per Chip	4
Diode Configuration	Common Anode
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	6.1V
Maximum Reverse Stand-off Voltage Vwm	5.2V
Peak Pulse Power Dissipation Pppm	400W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	18A
Maximum Reverse Leakage Current	20μA

Key Features

Uni-directional transient voltage suppression for effective ESD protection.
Common anode diode configuration optimized for circuit safety.
Compact SOT-23 package with 3 mm length and 1.75 mm width.
Operates over temperature range from -40°C to 125°C.
Maximum peak pulse current of 18 A for robust transient handling.
Low maximum reverse leakage current of 20 μA ensures efficiency.
Suitable for surface mount assembly in dense circuit boards.
Designed to comply with ESDA standards for electrostatic discharge protection.

Product Description

STMicroelectronics ESDA6V1SC5 is a 4-element uni-directional Transient Voltage Suppressor (TVS) diode designed for electrostatic discharge (ESD) protection in electronic circuits. It offers a peak pulse power dissipation of 400 W within a compact 5-pin SOT-23 surface mount package, measuring 3 mm in length, 1.75 mm in width, and 1.3 mm in height. This TVS diode features a common anode diode configuration optimized for rapid response and robust transient voltage suppression, providing reliable protection against voltage spikes and surges.

With a minimum breakdown voltage (Vbr) of 6.1 V and maximum reverse stand-off voltage (Vwm) of 5.2 V, this component is engineered to safeguard sensitive electronics operating within low voltage environments. The diode has a maximum peak pulse current rating of 18 A and a test current of 1 mA, making it suitable for numerous applications demanding high transient protection capability. It supports a wide operating temperature range from -40°C to 125°C, facilitating use in industrial, automotive, and commercial electronic assemblies.

The ESDA6V1SC5 provides low leakage current (20 μA max) which contributes to energy efficiency. Its surface mount package type is compatible with automated PCB assembly processes, enhancing manufacturing efficiency. The device does not carry any specific automotive or approval standards but fits well in various electronic designs requiring effective ESD protection.

Uni-directional transient voltage suppression for reliable circuit protection. Common anode configuration supporting ESD robustness. Compact SOT-23 5-pin surface mount package for space-saving applications. Peak pulse power dissipation of 400 W for transient absorption.

Wide operating temperature range from -40°C to 125°C. Low reverse leakage current of 20 μA for energy efficiency. Test current rating of 1 mA for operational reliability. Four elements per chip design for enhanced protection.

Maximum peak pulse current rating of 18 A suitable for various ESD events. Ideal for industrial, automotive, and commercial electronic circuit protection.

This STMicroelectronics TVS Diode is widely used in electronics manufacturing, telecommunications, consumer electronics, and automotive electronics for protecting circuits against voltage transients and electrostatic discharge. It suits surface mounting and works reliably under demanding environmental conditions.

Explore more STMicroelectronics products and reliable ESD protection components at EnvMart for advanced industrial and commercial applications.
