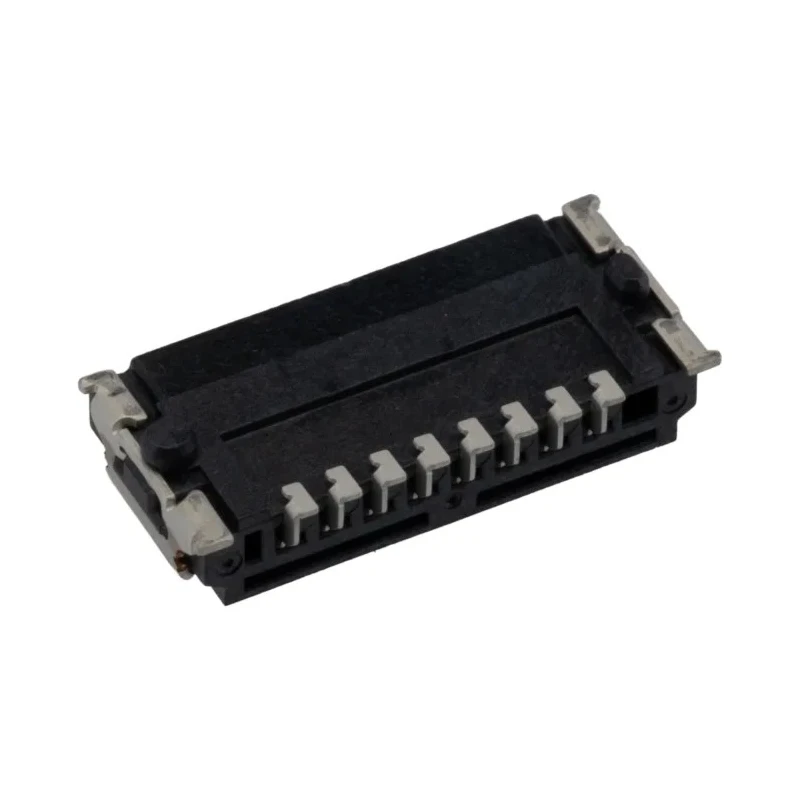

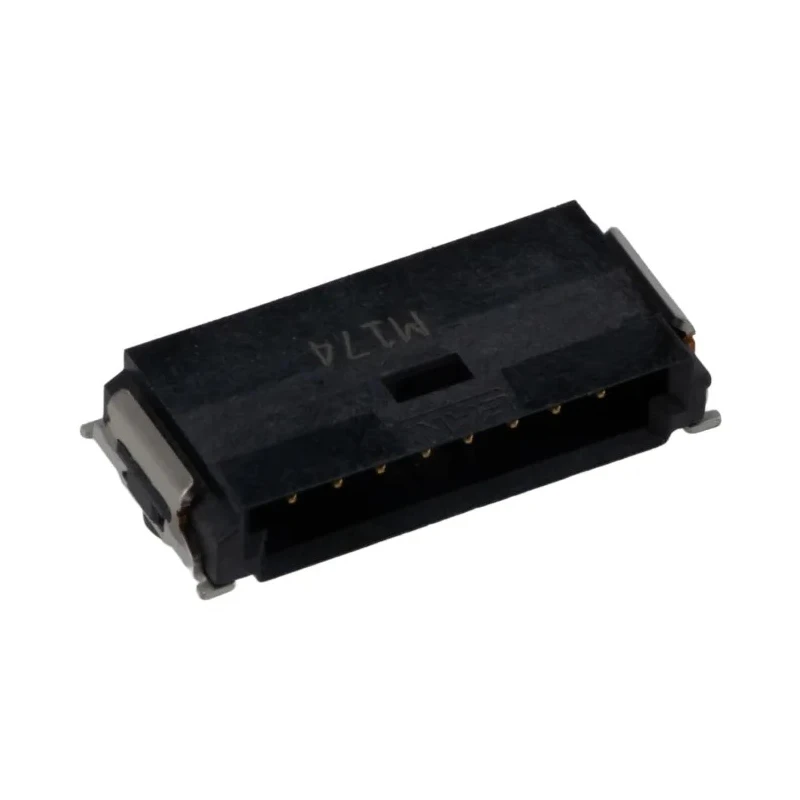

ERNI MiniBridge Series Right Angle Surface PCB Header 8 Contacts 1.27 mm Pitch 1 Row Shrouded 214014 / 214014-E

Free Delivery in India | Lowest Global Shipping Charges

ERNI MiniBridge Series Right Angle Surface PCB Header 8 Contacts 1.27 mm Pitch 1 Row Shrouded 214014 / 214014-E

Name: ERNI MiniBridge Series Right Angle Surface PCB Header 8 Contacts 1.27 mm Pitch 1 Row Shrouded 214014 / 214014-E
Brand: ERNI
SKU: 150072
Price: 5.89 USD
Availability: InStock



Category PCB Header Brand ERNI Condition New

Specifications

Country of Origin	Germany
Voltage	300V
Brand	ERNI
Orientation	Right Angle
Current	4A
Model	214014 / 214014-E
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	MiniBridge
Termination Type	Solder
Maximum Operating Temperature	100°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	8
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

This PCB header series offers a 1.27 mm pitch for precise connection.
Equipped with 8 gold-plated copper alloy contacts ensuring reliable conductivity.
The housing is made from liquid crystal polymer for high temperature resistance.
Right angle orientation with surface mount type is suitable for PCB assemblies.
Shrouded connector system provides protection and precise alignment.
Male contact gender supports solder termination.
Supports a maximum current of 4A with an operating voltage up to 300V.
Operating temperature range from -55°C to 100°C suits various industrial environments.

Product Description

ERNI 214014 / 214014-E MiniBridge Series Right Angle Surface PCB Header features 8 contacts arranged in a single row with a 1.27 mm pitch, designed for reliable wire-to-board connections in demanding electronics applications. The male contacts are gold-plated copper alloy, ensuring excellent conductivity and corrosion resistance. Its housing, manufactured from liquid crystal polymer, withstands high temperatures and is compatible with lead-free solder reflow processes.

The right angle, shrouded design facilitates secure surface mounting on PCBs with enhanced mechanical stability provided by ruggedized metal clips on both sides. Two positioning pegs aid exact alignment during automated placement, improving assembly accuracy.

This PCB header series operates safely at voltages up to 300V and accommodates currents up to 4A (at 20°C), making it ideal for automotive, industrial, computer technology, consumer electronics, and medical device applications. It tolerates a wide temperature range of -55°C to 100°C, ensuring reliability under harsh environmental conditions.

The connector supports up to 500 mating cycles, providing durability for maintenance and repeated connections. The compact 1.27 mm pitch MiniBridge system enables high-density PCB layout without sacrificing performance.

This product contains 8 contact points for efficient signal transmission. High-temperature-resistant liquid crystal polymer housing ensures durability. Gold-plated copper alloy contacts provide excellent conductivity and corrosion resistance.

Right angle, surface mount type for versatile PCB integration. Shrouded design enhances contact protection and alignment. Supports current up to 4A and voltage of 300V for various industrial uses. Wide operating temperature range from -55°C to 100°C for harsh environments.

Reliable retention force with metal clips and precise positioning pegs.

Suitable for diverse applications including automotive electronics, industrial machinery, consumer devices, and medical technology, the ERNI MiniBridge Series 214014 / 214014-E right angle PCB header provides a robust and compact interconnection solution. Explore similar PCB Headers and related components at EnvMart to meet your specific electronics design and manufacturing needs.
