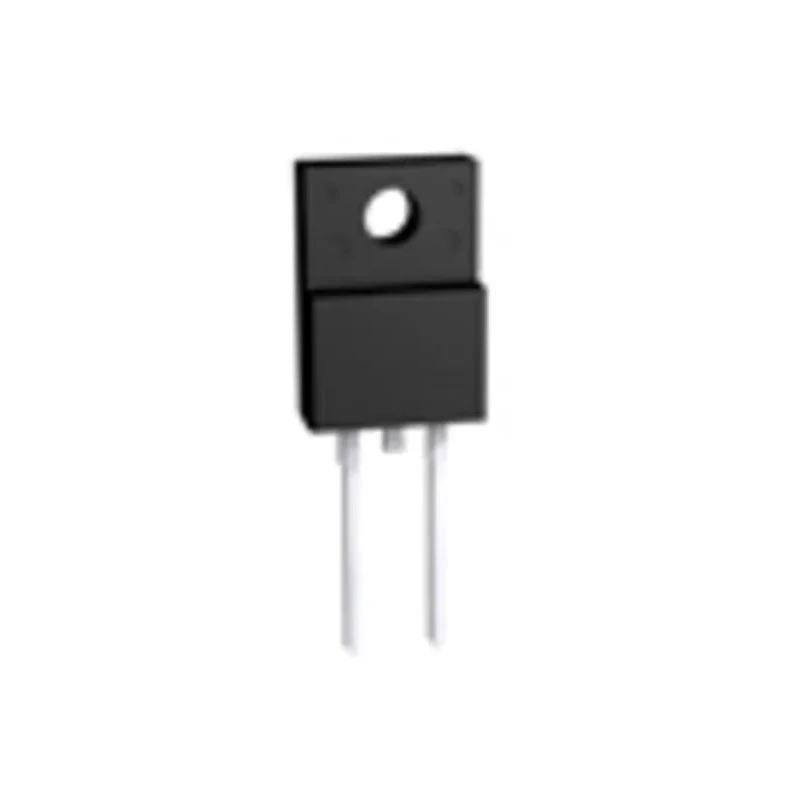

ROHM 600 V 10 A Fast Recovery Diode 3-Pin TO-220 RF1005TF6S
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 15mm |
| Length | 10mm |
| Model | RF1005TF6S |
| Width | 4.5mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Fast Recovery |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 0.35V |
| Peak Reverse Recovery Time trr | 40ns |
Key Features
- Provides ultra high-speed switching for efficient power supply performance.
- Features low forward voltage drop of 0.35 V reducing power loss.
- Maximum operating temperature reaches 150°C for reliable operation.
- Compact TO-220 package ideal for through-hole mounting applications.
- Pin count of 3 ensures easy integration into circuit designs.
- Peak surge current rating of 100 A for transient load tolerance.
- Fast recovery time of 40 ns improves switching efficiency.
Product Description
ROHM RF1005TF6S is a high-performance fast recovery diode designed for power electronics and switching power supplies. It supports a maximum repetitive peak reverse voltage of 600 V and maximum continuous forward current of 10 A, making it suitable for applications requiring efficient rectification and enhanced switching speeds.
This diode features a low maximum forward voltage drop of 0.35 V which reduces power dissipation and improves overall circuit efficiency. The fast recovery time of 40 ns allows for rapid switching, minimizing losses in switching power supply circuits.
Housed in a durable TO-220 package, it facilitates easy through-hole mounting and provides good thermal dissipation capabilities. It contains 3 pins for standard circuit compatibility.
The device can withstand peak non-repetitive forward surge currents up to 100 A, enhancing reliability during transient conditions. Operating temperature is rated up to 150°C, allowing use in demanding industrial environments.
Typical dimensions are 10 mm length, 15 mm height, and 4.5 mm width, making it a compact component suitable for space-constrained designs. ROHM fast recovery diodes are widely used in industrial, consumer electronics, power supply, automotive, and manufacturing sectors demanding robust, high-speed rectifiers.
Provides ultra high-speed switching for efficient power supply performance. Features low forward voltage drop of 0.35 V reducing power loss. Maximum operating temperature reaches 150°C for reliable operation. Compact TO-220 package ideal for through-hole mounting applications.
Pin count of 3 ensures easy integration into circuit designs. Peak surge current rating of 100 A for transient load tolerance. Fast recovery time of 40 ns improves switching efficiency. Dimensions of 10 mm length, 15 mm height, and 4.5 mm width support compact layouts.
Explore more ROHM semiconductor diodes and discrete components at EnvMart for high-quality electronics solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum continuous forward current rating of 10 A.
The maximum forward voltage drop is 0.35 V, which helps reduce power loss.
The fast recovery time for this diode is 40 ns, enhancing switching efficiency.
The dimensions are 10 mm in length, 15 mm in height, and 4.5 mm in width.
It can withstand a peak non-repetitive forward surge current of up to 100 A.
The maximum operating temperature reaches 150°C, suitable for demanding environments.
This diode is housed in a TO-220 package, ideal for through-hole mounting applications.
It features a pin count of 3, allowing for easy integration into circuit designs.
This fast recovery diode is suitable for power electronics, switching power supplies, and various industrial applications.
The diode configuration is single, designed for efficient rectification.
