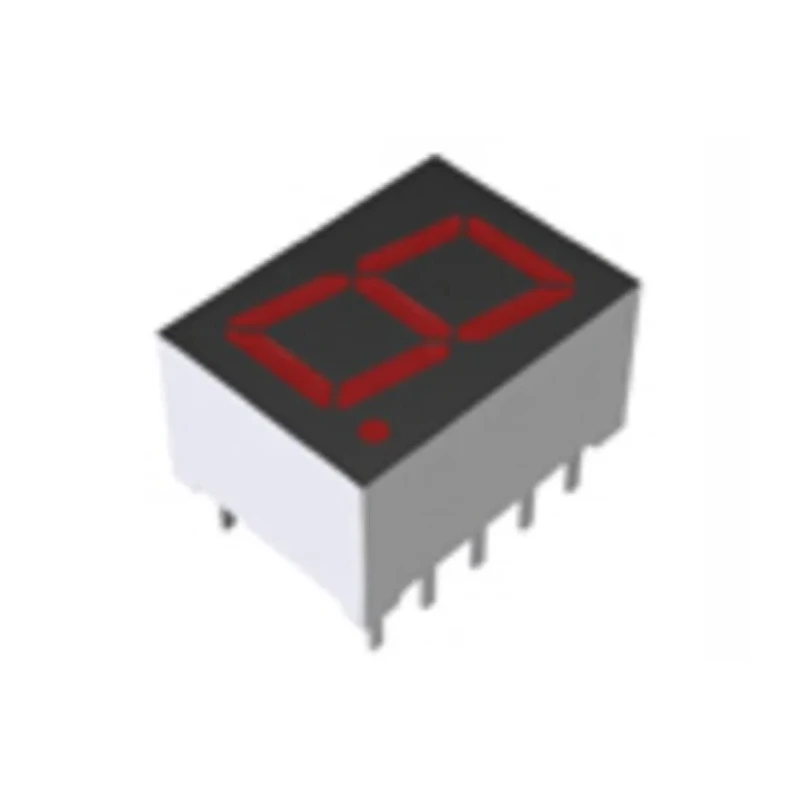

ROHM Single Digit LED Numeric Display 1 Character 7 Segments 10.16 mm Height 2.05 V 16mcd LA-401AD

ROHM LA-401AD single digit LED numeric display is designed for electronic components requiring a clear, compact numeric readout with robust performance. Featuring a 7-segment single character display, this LED display ensures high visibility with a luminous intensity rated at 16mcd and a dominant wavelength of 626nm, emitting a clear red light. The character height is 10.16 mm, providing easy readability in various electronic devices and industrial control systems.

This display module employs a through-hole mount type configuration compatible with standard PCB assembly, supporting the anode common DIP type. It is rated for a forward voltage of 2.05 V and a forward current of 20mA, while the power dissipation is capped at 60mW to ensure low power consumption and extended device longevity.

Its robust operating temperature range from -25°C to 75°C enables reliable operation across diverse environmental conditions, making it suitable for industrial, commercial, and laboratory equipment displays. The display's external dimensions measure 9.6 mm in width, 13 mm in height, and a depth of 13 mm, enabling installation in compact spaces.

The decimal point orientation is positioned on the right side, aligning with typical numeric display standards. This product complies with RoHS standards, ensuring it meets environmental and safety regulations for electronic components manufacturing.

Part of the LA-401D series, this model is ideal for applications such as digital meters, counters, instrumentation displays, and control panels requiring visible numeric data presentation with reliability.

High brightness with 16mcd luminous intensity. Character height of 10.16 mm suitable for clear numeric display. Forward voltage of 2.05 V and forward current of 20mA. Operating temperature range from -25°C to 75°C. Compact external dimensions 9.6mm width x 13mm height x 13mm depth.

Compatible with anode common DIP type mounting. Compliant with RoHS environmental standards. Power dissipation limited to 60mW for energy efficiency. Dominant wavelength of 626nm producing red LED color. Decimal point oriented on the right side for standard use.

This ROHM LA-401AD LED display combines precision display quality and versatility across industrial, electronic manufacturing, instrumentation, and commercial electronics sectors. Browse EnvMart for more LED Displays and electronic components from leading brands.
