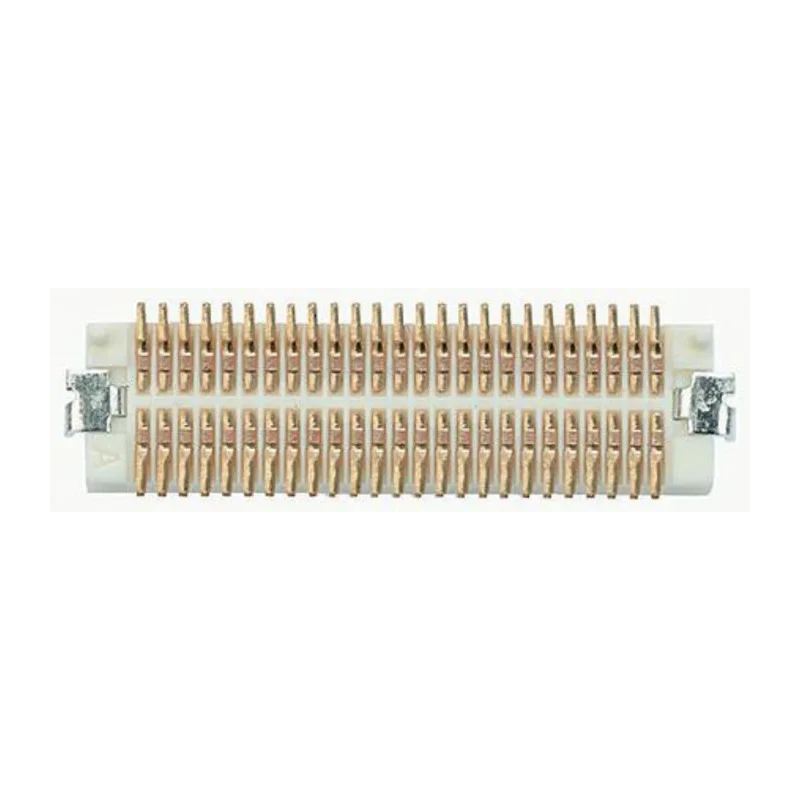

Hirose DF12 Series Straight Surface PCB Socket 50-Contact 2 Row 0.5 mm Pitch Solder

Hirose DF12-50DS-0.5V(86) PCB Socket is a high-quality board-to-board connector from the DF12 series, engineered for ultra-miniature interconnections with a 0.5 mm contact pitch. It features 50 contacts arranged in 2 rows with a straight orientation, designed for surface mount technology (SMT) solder termination.

The socket utilizes a durable polyamide housing that is UL94V-0 rated for flame resistance, ensuring safety and long service life. Gold plated copper contacts provide excellent conductivity and corrosion resistance, suitable for reliable electrical performance at currents up to 300mA and voltage ratings of 50V.

Operating temperature ranges from -55°C to 125°C, enabling use in harsh industrial and commercial environments. The 5 mm stacking height and 2.4 mm row pitch facilitate compact PCB design while maintaining robust connections.

This PCB socket includes board retention hardware and location posts which secure the connector during assembly and operation, minimizing mechanical stress and improving solder reliability.

The connector supports a 300mA operational current at 50V voltage for efficient electrical performance. It features a polyamide housing material ensuring durability and UL94V-0 flame resistance. Gold plated copper contacts offer corrosion resistance and optimal conductivity.

The socket’s stacking height is 5mm with a row pitch of 2.4mm, facilitating compact PCB assembly. Designed for surface mount technology (SMT), the connector provides a secure solder termination. Minimum and maximum operating temperatures range from -55°C to 125°C, suitable for diverse environments.

The connector is female contact gender, ideal for mating with DF12 series headers. It includes board retention hardware and location posts to ensure mechanical stability. This ultra-miniature double row socket enhances compact PCB layouts with reliable signal integrity.

This Hirose PCB socket is widely used in electronics manufacturing for applications including consumer electronics, telecommunication equipment, industrial automation, and other electronic assemblies requiring high-density, reliable board-to-board connections.

Ideal for industrial, laboratory, manufacturing, and commercial PCB designs, it delivers dependable performance with effective space-saving features. Explore other Hirose connectors and PCB Sockets on EnvMart to find optimized solutions for your industrial and electronic component needs.
