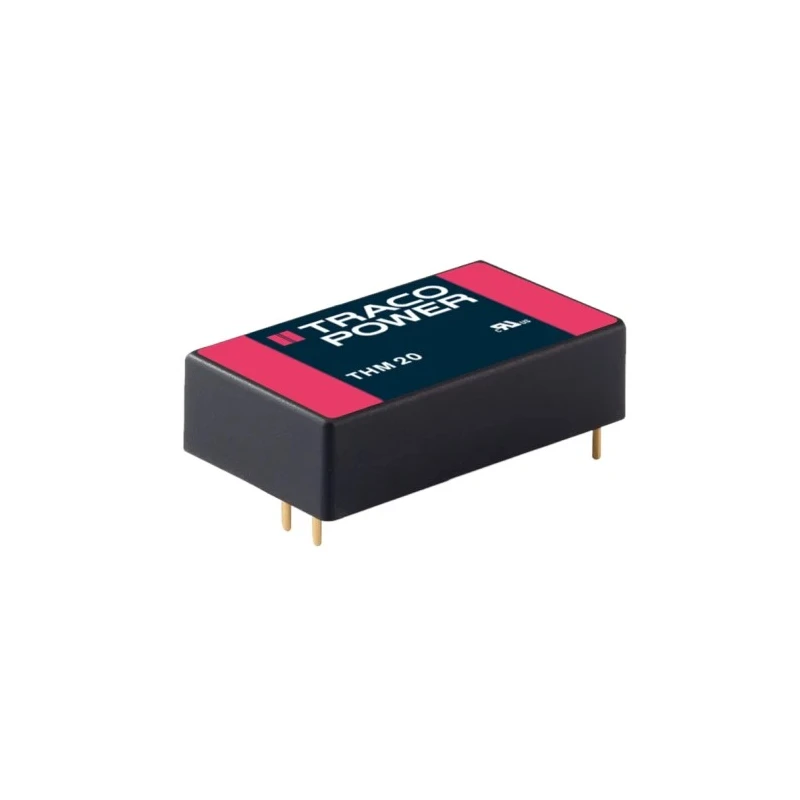

TRACOPOWER 20 W 12V DC 1.67A Through Hole Plastic Case DC/DC Converter THM 20-4812
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THM 20 DC/DC Converter, 12V dc/ 1 |
| Brand | TRACOPOWER |
| Efficiency | 88% |
| Length | 40.6mm |
| Model | THM 20-4812 |
| Depth | 10.2mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | THM 20 |
| Maximum Operating Temperature | 80°C |
| Package Type | Plastic Case |
| Minimum Operating Temperature | -40°C |
| MTBF | 1712000h |
| Number of outputs | 1 |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 36V |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 1.67A |
| Isolation Voltage | 5kV ac |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Wide 2 | 1 input voltage 20 W DC/DC converter in a 1.6 x 1 plastic case |
Key Features
- High isolation voltage rated at 5000 VAC for reinforced safety.
- Very low leakage current below 2.5 μA ensures efficiency.
- Operating temperature range from -40°C to 80°C suitable for harsh environments.
- High efficiency up to 88% to reduce energy loss.
- Compact dimensions of 40.6mm length, 25.4mm width, and 10.2mm depth.
- Single output unit with 6 pins for through-hole mounting.
- Reliable MTBF of 1,712,000 hours ensures long operational life.
- Ideal for industrial, medical, transportation, and control measurement applications.
Product Description
TRACOPOWER THM 20-4812 DC/DC Converter offers a reliable 20 W power conversion with an output voltage of 12V DC and current of 1.67 A within a plastic case designed for through-hole mounting. It supports a wide input voltage range from 36 V up to 75 V DC, featuring a wide 2:1 input ratio. The device incorporates reinforced isolation with a 5000 VAC rating, ensuring user safety and system stability through very low leakage current of less than 2.5 μA.
Engineered to operate in adverse conditions, this converter supports an ambient temperature range from -40°C to 80°C and altitudes up to 5000 m. Its compact size (40.6 x 25.4 x 10.2 mm) allows integration into space-sensitive industrial and medical equipment.
With an efficiency rating of 88%, the THM 20-4812 reduces energy loss and heat generation, making it suitable for high-performance control systems, transportation, and demanding industrial applications. The MTBF of over 1.7 million hours underscores its robustness and durability in critical use cases.
Wide 2:1 input voltage range accommodates multiple voltage sources. High isolation voltage enhances safety in medical and industrial installations. Low leakage current minimizes power wastage and interference. Compact plastic enclosure supports through-hole mounting flexibility.
Extended temperature tolerance ensures operation in extreme environments. High MTBF guarantees long-term reliability and uptime. Single output design simplifies system integration and control. Suitable for medical equipment, transportation systems, control & measurement devices, and IGBT driver applications.
The product is manufactured in Taiwan, Province of China, meeting stringent quality and safety standards. Explore more TRACOPOWER DC/DC Converters and related power supply solutions at EnvMart for industrial, laboratory, electronic, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 20 W.
It supports a wide input voltage range from 36 V to 75 V DC.
This model has an efficiency rating of up to 88%.
The dimensions are 40.6 mm in length, 25.4 mm in width, and 10.2 mm in depth.
The isolation voltage is rated at 5000 VAC, providing reinforced safety.
It operates within a temperature range from -40°C to 80°C.
This model features a single output.
The mean time between failures (MTBF) is rated at 1,712,000 hours.
It supports through-hole mounting with 6 pins.
It is suitable for industrial, medical, transportation, and control measurement applications.
This product is manufactured in Taiwan, Province of China.
The leakage current is very low, below 2.5 μA.
