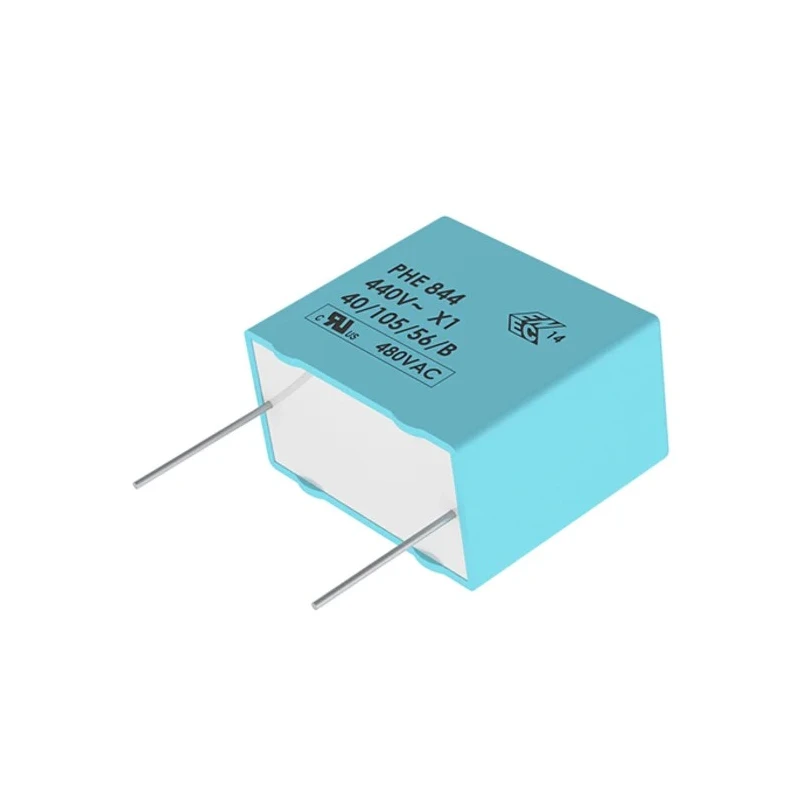

KEMET Film Capacitor X1 Suppression Class, 220 nF ±20 %, 1 kV DC, 440 V AC, Through Hole Mount PHE844

KEMET PHE844 film capacitor series provides reliable capacitors with a capacitance of 220 nF and tolerance of ±20 % designed for EMI suppression in industrial and electronic equipment.

These Film Capacitors use metallized polypropylene film as the dielectric material and feature radial leads for through-hole mounting. Rated for 1 kV DC and 440 V AC operation, they are suitable for various industrial, electronics manufacturing, and power supply applications.

The capacitors operate safely within a temperature range of -40°C to 105°C, ensuring suitability for harsh environments. Their self-healing properties improve lifespan and operational safety.

Dimensions including a lead pitch of 22.5 mm, lead length of 30 mm, and overall compact size make them ideal for PCB assemblies with space constraints. The encapsulation uses self-extinguishing resin to meet industrial safety standards.

Additional features include a dissipation factor of 0.4% and compliance with RoHS directives, supporting environmental sustainability in electronic manufacturing. Constructed of metallized polypropylene film dielectric. Radial lead, through-hole mount with 22.5 mm lead pitch.

Capacitance: 220 nF, tolerance ±20 %. Rated voltages: 1 kV DC, 440 V AC. Operating temperature range: -40°C to 105°C. Self-healing and suppression class X1 for EMI protection. Encapsulated with self-extinguishing resin for enhanced safety.

RoHS compliant to ensure environmental standards. This capacitor is broadly used in industrial electronics, power supplies, HVAC equipment, manufacturing instrumentation, and EMI suppression circuits. For a comprehensive range of capacitors and electronic components, explore EnvMart’s Electronics Components section.
