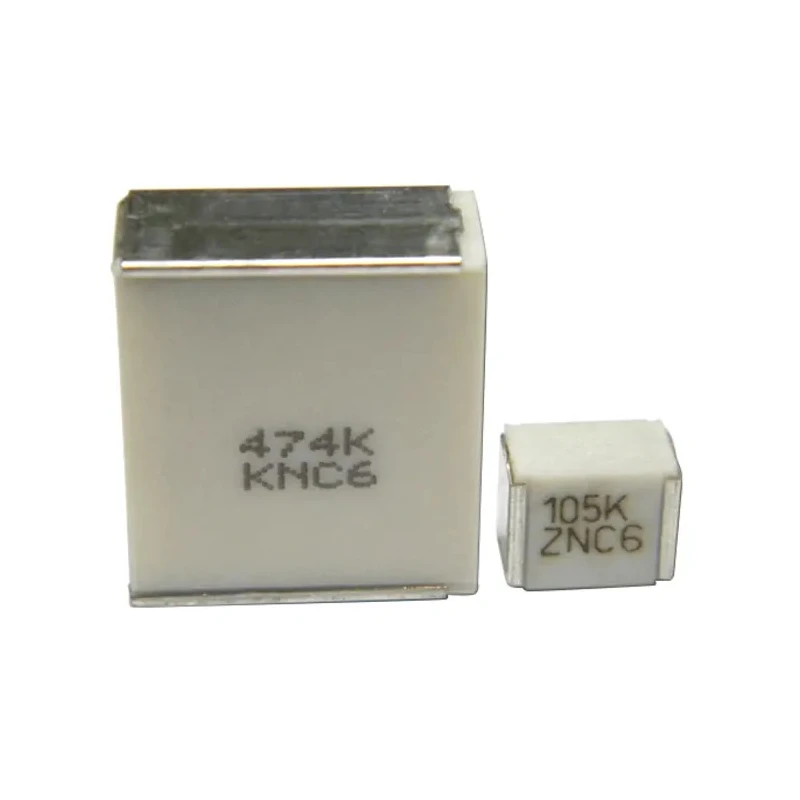

KEMET Film Capacitor 3.3nF ±10% 1000 V DC 250 V AC Surface Mount LDEQD1330KA5N00
Specifications
| Country of Origin | Italy |
|---|---|
| Capacitance Range | 0.001 - 4.7 μF |
| Brand | KEMET |
| Height | 2.6mm |
| Length | 6mm |
| Model | LDEQD1330KA5N00 |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Surface |
| Series | LDE |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 3.3nF |
| Minimum Operating Temperature | -55°C |
| Climatic category | 55/125/56 |
| Terminal type | Surface Mount |
| Dissipation Factor | 0.8% |
| Standards/Approvals | RoHS |
| Package/Case | 2220 |
| Rated AC Voltage | 250V ac |
| Rated DC Voltage | 1000V dc |
| Automotive Standard | AEC-Q200 |
| Capacitance tolerance | ±10%, ±20%, ±5% on request |
Key Features
- Capacitance of 3.3 nanofarads with ±10% tolerance ensures stable performance.
- Rated DC voltage of 1000 V and AC voltage of 250 V for high-voltage applications.
- Surface mount package type (2220 case) suitable for automated PCB assembly.
- Operating temperature range from -55°C to 125°C for reliable use in harsh environments.
- Low dissipation factor of 0.8% which minimizes energy loss during operation.
- Terminal type designed for surface mount technology ensuring compact design.
- Certified AEC-Q200 automotive standard suitable for automotive electronics.
- RoHS compliant with lead-free terminations for environmental safety.
Product Description
KEMET LDEQD1330KA5N00 is a polyethylene naphthalate (PEN) film capacitor designed for surface mounting on printed circuit boards. This component features a capacitance of 3.3nF with a tolerance of ±10%, suitable for precise filtering, bypassing, coupling, and timing applications.
This film capacitor is rated for a DC voltage of 1000 V and an AC voltage of 250 V, allowing safe operation under high voltage conditions. Its low dissipation factor of 0.8% ensures minimal energy loss, improving overall circuit efficiency.
Engineered to meet the AEC-Q200 automotive standard, it is reliable for use in automotive electronic systems. The capacitor operates over a broad temperature range from -55°C to 125°C, maintaining performance in extreme industrial and automotive environments.
The compact 2220 case size (6mm length x 5mm width x 2.6mm height) and surface mount terminal design enable automated PCB assembly and space-saving solutions. The device is RoHS compliant with lead-free terminations supporting environmental standards.
Packaged in tape and reel format, this capacitor is optimized for assembly line processing, making it ideal for high volume manufacturing needs in electronics, automotive, power supply, and industrial control applications.
Capacitance of 3.3 nanofarads with ±10% tolerance ensures stable performance. Rated DC voltage of 1000 V and AC voltage of 250 V for high-voltage applications. Surface mount package type (2220 case) suitable for automated PCB assembly.
Operating temperature range from -55°C to 125°C for reliable use in harsh environments. Low dissipation factor of 0.8% which minimizes energy loss during operation. Terminal type designed for surface mount technology ensuring compact design.
Certified AEC-Q200 automotive standard suitable for automotive electronics. RoHS compliant with lead-free terminations for environmental safety. Compact dimensions: length 6mm, width 5mm, height 2.6mm. Packaged in tape & reel format optimized for high volume production.
This KEMET Film Capacitor supports a wide array of industrial applications, including power electronics, automotive controls, and communication equipment. Its robust design and compliance with automotive standards ensure dependable performance in demanding environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 3.3 nanofarads with a tolerance of ±10%.
It is rated for a DC voltage of 1000 V and an AC voltage of 250 V, making it suitable for high-voltage applications.
The capacitor operates within a temperature range of -55°C to 125°C, allowing reliable use in harsh environments.
It has a low dissipation factor of 0.8%, which helps minimize energy loss during operation.
This unit comes in a surface mount package type (2220 case), which is suitable for automated PCB assembly.
The dimensions of this model are 6mm in length, 5mm in width, and 2.6mm in height.
Yes, it is certified to the AEC-Q200 automotive standard and is RoHS compliant with lead-free terminations.
It features a surface mount terminal type, designed for compact design and easy installation on PCBs.
It is packaged in tape and reel format, optimized for high volume production and assembly line processing.
This capacitor supports a wide array of applications, including power electronics, automotive controls, and communication equipment.
The climatic category for this model is 55/125/56, indicating its performance under various environmental conditions.
The capacitor has a standard tolerance of ±10%, with options for ±20% and ±5% available upon request.
