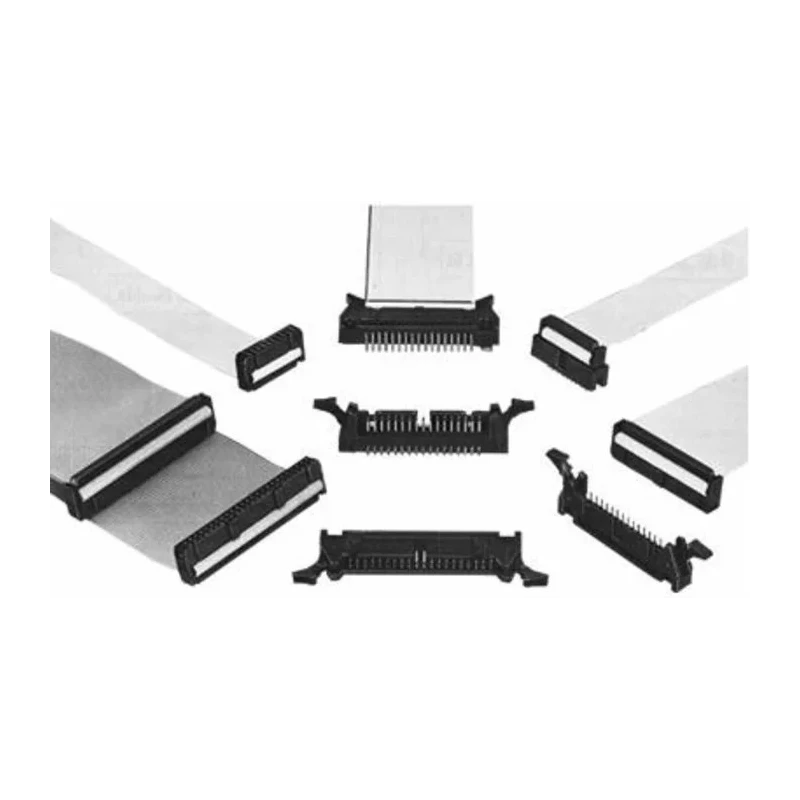

Hirose 40-Way IDC Connector Male Through Hole Right Angle 650V AC Gold Plated Contacts HIF3BA-40PA-2.54WB
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 650V ac |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 1A |
| Model | HIF3BA-40PA-2.54WB |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | HIF3B |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Supports a current rating of 1A for reliable electrical performance.
- Features a 2.54mm pitch suitable for precise PCB connections.
- Shrouded design enhances connector protection and prevents mis-insertion.
- Right angle orientation allows compact PCB layouts and efficient cable routing.
- Constructed with brass contacts and polybutylene terephthalate housing for durability.
- Rated for voltage up to 650V AC to support demanding applications.
- Suitable for termination through soldering and compatible with UL2651 AWG#28 flat cables.
- Operates in temperature range from -55°C to 85°C ensuring performance under harsh conditions.
Product Description
Hirose HIF3BA-40PA-2.54WB is a 40-way IDC (Insulation Displacement Connector) male connector engineered for through hole mounting on PCBs. Featuring two rows of contacts with a 2.54mm pitch, this connector supports a current rating of 1 ampere and voltage rating of 650V AC, making it ideal for medium power electronic assemblies. It incorporates gold-plated brass contacts that ensure low contact resistance and corrosion resistance, improving signal integrity and durability over time.
The connector’s shrouded housing, made from polybutylene terephthalate, provides enhanced mechanical protection and mis-insertion prevention, contributing to robust and reliable operation in industrial and commercial electronic equipment. Its right angle orientation facilitates compact PCB designs by optimizing wiring paths and space utilization.
Designed for solder termination and compatible with UL2651 AWG#28 ribbon flat cables, the Hirose HIF3BA-40PA-2.54WB operates reliably across a wide temperature range from -55°C to 85°C, accommodating varied environmental conditions encountered in industrial, telecommunications, and instrumentation applications.
Supports 1 A current rating for dependable power handling. Compact 2-row, 40-pin layout with 2.54mm pitch for precise connections. Gold-plated brass contacts improve conductivity and resistance to wear. Shrouded design prevents misalignments and mechanical damage.
Durable polybutylene terephthalate housing ensures long-term reliability. Rated for up to 650V AC for enhanced safety and performance. Right angle mount type optimizes PCB layout and cable management. Compatible with UL2651 AWG#28 flat ribbon cable types for versatile use.
Wide operating temperature range from -55°C to 85°C suits harsh environments.
This connector is widely used in industrial automation, communications equipment, control systems, and PCB assemblies that require high reliability and robust electrical performance. Its precise construction ensures ease of integration into custom electronic designs and repairs.
Explore the full range of IDC Connectors and related electronic components available to meet your engineering specifications and industrial needs with confidence at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1 ampere, ensuring reliable electrical performance for various applications.
It is rated for a maximum voltage of 650V AC, making it suitable for medium power electronic assemblies.
The Hirose HIF3BA-40PA-2.54WB features a contact pitch of 2.54mm, allowing for precise PCB connections.
This unit is designed for solder termination, compatible with UL2651 AWG#28 flat cables.
The connector is constructed with brass contacts and a polybutylene terephthalate housing, providing durability and mechanical protection.
It operates reliably within a temperature range from -55°C to 85°C, accommodating harsh environmental conditions.
The connector features a right angle orientation, which optimizes PCB layouts and cable management.
This model has a total of 40 contacts, arranged in two rows, facilitating efficient connections.
The HIF3BA-40PA-2.54WB features a shrouded design, enhancing connector protection and preventing mis-insertion.
The Hirose HIF3BA-40PA-2.54WB is manufactured in Malaysia.
This connector is part of the HIF3B series, which includes various IDC connectors designed for similar applications.
It is widely used in industrial automation, telecommunications equipment, control systems, and PCB assemblies requiring high reliability.
