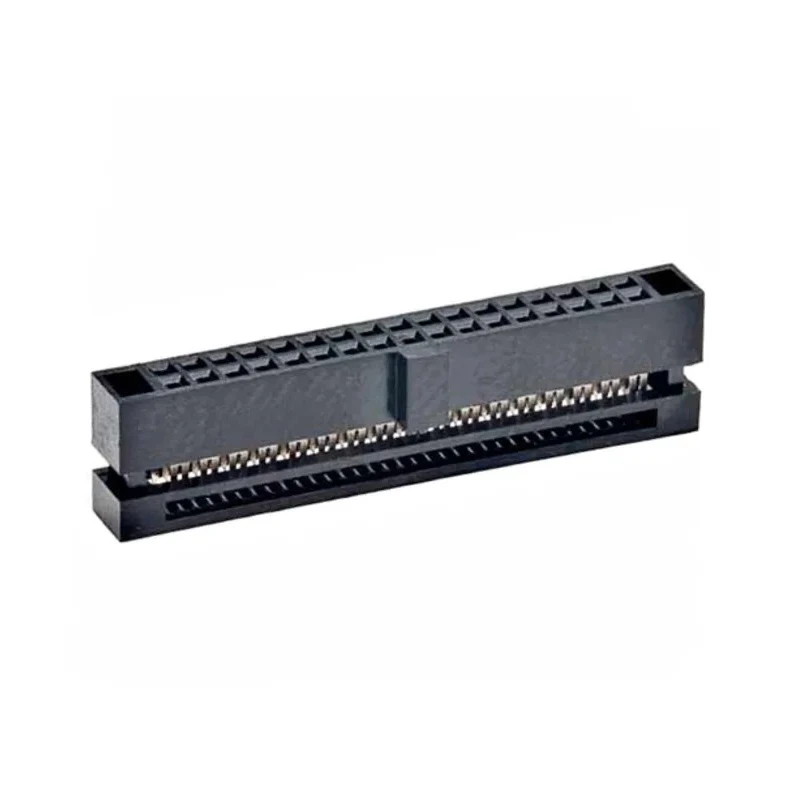

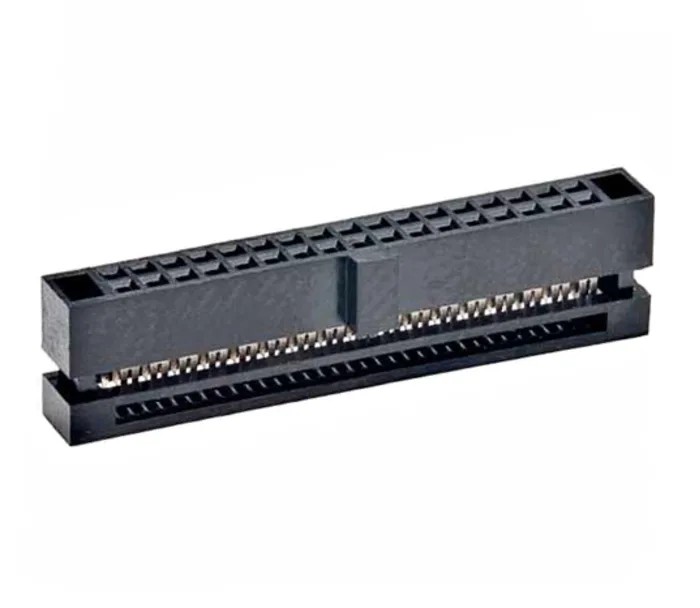

HARWIN 34-Way 2 Row Female IDC Connector for Cable 1kV ac, Gold & Tin Plating M50-3301742

Free Delivery in India | Lowest Global Shipping Charges

HARWIN 34-Way 2 Row Female IDC Connector for Cable 1kV ac, Gold & Tin Plating M50-3301742

Name: HARWIN 34-Way 2 Row Female IDC Connector for Cable 1kV ac, Gold & Tin Plating M50-3301742
Brand: HARWIN
SKU: 148228
Price: 4.13 USD
Availability: InStock



Category IDC Connector Brand HARWIN Condition New

Specifications

Country of Origin	China
Voltage	1kV ac
Brand	HARWIN
Orientation	Straight
Current	1A
Model	M50-3301742
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Series	Archer M50
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold, Tin over Nickel
Number of Contacts	34
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Shrouded
RS PRO 34-Way IDC Connector Female for Cable, 2 RowBrand	RS PRO

Key Features

Features 34 contacts arranged in 2 rows for reliable connection.
Compatible with 0.635mm pitch, 30AWG ribbon cable.
Shrouded female connector with crimp termination type.
Constructed with phosphor bronze contacts and polybutylene terephthalate housing.
Operates within temperature range from -40°C up to 105°C.
Gold contact plating enhances corrosion resistance and electrical conductivity.
Provides straight orientation and cable mount type for easy installation.
Suitable for industrial, electronic, and power connector applications.

Product Description

HARWIN M50-3301742 is a 34-way female IDC (Insulation Displacement Connector) designed for cable applications. It features a double row of contacts (17+17) optimized for 0.635mm pitch, 30AWG ribbon cables, providing secure and reliable electrical connections. Rated for 1kV AC voltage and 1A current, this connector utilizes a crimp termination method and a shrouded housing for protection.

Manufactured with phosphor bronze contacts and a polybutylene terephthalate housing, the connector combines durability with excellent electrical characteristics. The contact plating includes gold on the contact area and tin over nickel on the termination, ensuring corrosion resistance and signal integrity over time. Operating temperature ranges from -40°C to 105°C allow usage in diverse environmental conditions.

The straight orientation and cable mount type facilitate straightforward assembly in electronic and industrial equipment. This model is ideal for applications requiring dependable ribbon cable connections, including telecommunications, industrial controls, and instrumentation.

Features 34 contacts arranged in 2 rows for reliable connection. Compatible with 0.635mm pitch, 30AWG ribbon cable. Shrouded female connector with crimp termination type. Constructed with phosphor bronze contacts and polybutylene terephthalate housing.

Operates within temperature range from -40°C up to 105°C. Gold contact plating enhances corrosion resistance and electrical conductivity. Provides straight orientation and cable mount type for easy installation. Suitable for industrial, electronic, and power connector applications.

Country of origin is China. Product condition is new. This connector belongs to the Archer M50 series by HARWIN, a trusted brand in electronics connectors. Browse more IDC Connectors and related components at EnvMart for comprehensive solutions.
