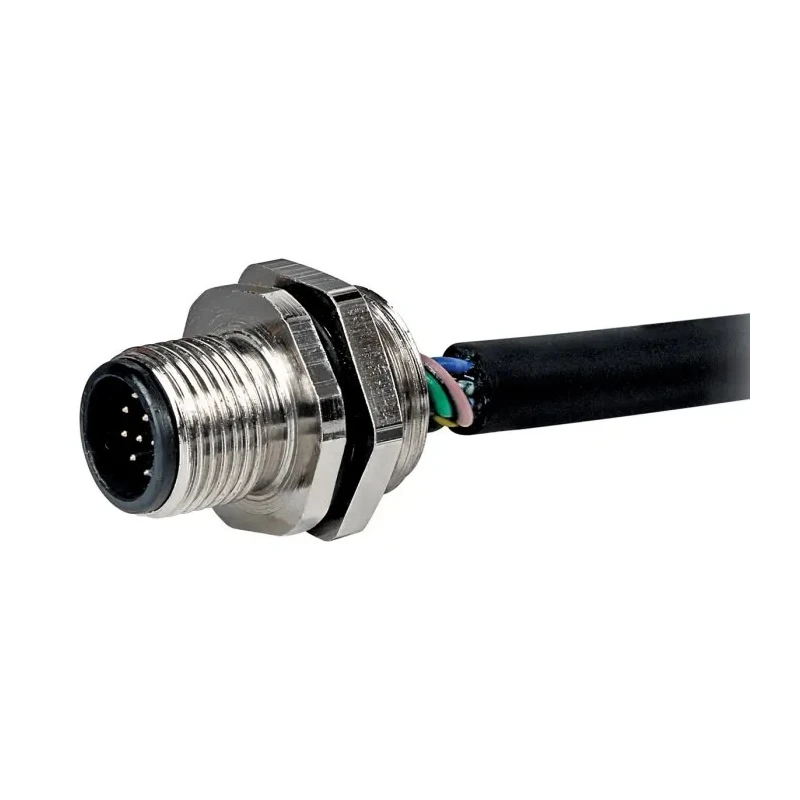

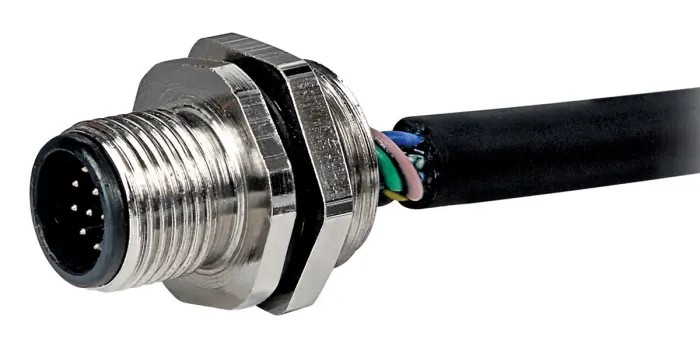

RS PRO Circular Connector 12 Contacts Panel Mount M12 Plug Male IP67 30V 1.5A 144-7613

RS PRO 144-7613 is a premium circular connector designed for industrial use, featuring 12 contacts and a panel mount style ensuring easy and secure installation. The M12 size plug with male contacts provides a reliable interface rated at 30 volts and 1.5 amps current capacity, ideal for connecting sensors, actuators, and other automation devices.

The connector body incorporates a nylon 66 contact carrier combined with robust CuZn contact material for excellent electrical conductivity and mechanical strength. An IP67 ingress protection rating guarantees resistance against dust and water jets, making it suitable for rugged industrial and factory automation environments.

Equipped with a neoprene O-ring and PG9 clamp nut, the connector achieves a tight seal enhancing durability in harsh conditions. The straight orientation plug type is designed to prevent miss-mating and ensure stable connectivity.

Operating within a temperature range from -25°C to 75°C, this circular connector accommodates a wide variety of industrial and laboratory applications, including instrumentation, process control, robotics, and assembly line machinery.

The RS PRO 144-7613 comes pre-terminated with partially stripped wires, significantly reducing installation time and allowing easy integration into any electrical or sensory automation system.

The connector features 12 contacts providing multiple connection points. Panel mount configuration ensures secure installation on control panels. Rated at 30V and 1.5A current capacity suitable for sensor and actuator connections.

Designed with a straight orientation and robust CuZn contact material. IP67 rating ensures protection against dust ingress and powerful water jets. Constructed with nylon 66 contact carrier and neoprene O-ring for enhanced durability.

Suitable for harsh industrial environments requiring rugged and waterproof connectors. Operating temperature range from -25°C to 75°C supports diverse conditions. Pre-terminated wires with partially stripped ends simplify integration into automation systems.

Ideal for instrumentation, process control, robotics, and factory automation uses. Explore the full RS PRO range in industrial Circular Connectors for reliable automation connectivity solutions.
