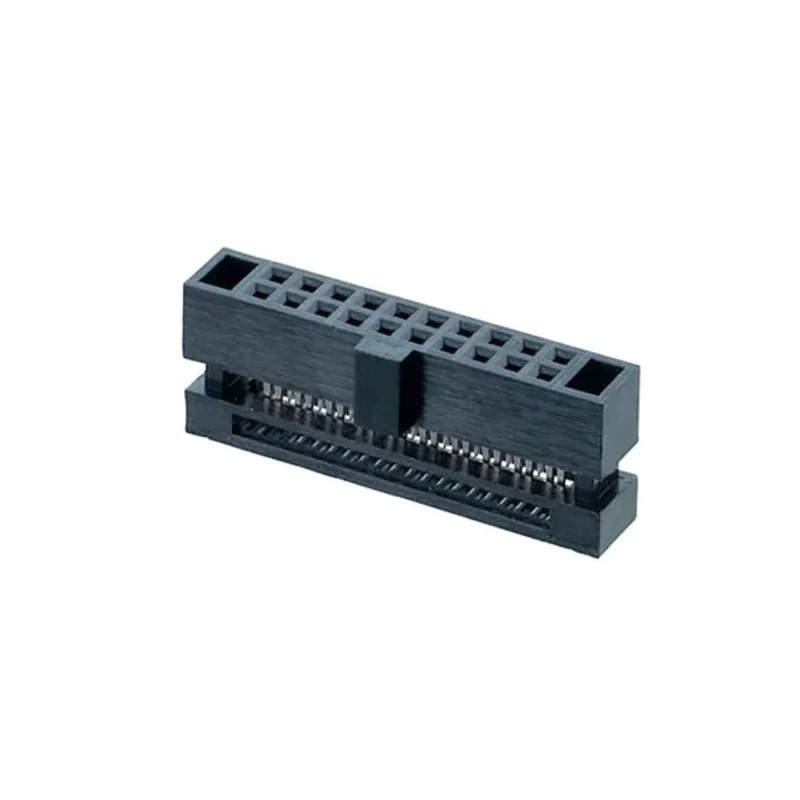

HARWIN 20-Way Female IDC Connector for Cable, 2 Row, 1A Current, 1.27mm Pitch, Shrouded, Crimp Termination M50-3301042

Free Delivery in India | Lowest Global Shipping Charges

HARWIN 20-Way Female IDC Connector for Cable, 2 Row, 1A Current, 1.27mm Pitch, Shrouded, Crimp Termination M50-3301042

Name: HARWIN 20-Way Female IDC Connector for Cable, 2 Row, 1A Current, 1.27mm Pitch, Shrouded, Crimp Termination M50-3301042
Brand: HARWIN
SKU: 148225
Price: 3.31 USD
Availability: InStock



Category IDC Connector Brand HARWIN Condition New

Specifications

Country of Origin	China
Voltage	1kV ac
Brand	HARWIN
Orientation	Straight
Current	1A
Model	M50-3301042
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Series	Archer M50
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold, Tin over Nickel
Number of Contacts	20
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Shrouded

Key Features

Features 20 contacts arranged in 2 rows for compact connectivity.
Supports a maximum current rating of 1A ensuring efficient signal transmission.
Gold and tin over nickel contact plating improves conductivity and corrosion resistance.
Operates reliably between -40°C and 105°C for diverse environments.
Constructed with phosphor bronze contacts and polybutylene terephthalate housing for durability.
Designed for straight orientation mounting on cables with crimp termination type.
Complies with environmental standards but no explicit certifications listed.
Originates from China ensuring manufacturing quality consistent with brand standards.

Product Description

HARWIN M50-3301042 is a 20-Way Female IDC Connector featuring a double row configuration, designed for cable mounting applications. It supports a 1A current rating and a voltage of 1kV AC, suitable for use in electronic components and power connectors.

The connector has a 1.27mm pitch and is shrouded to provide protection and polarization, ensuring correct mating with corresponding connectors. The contacts are plated with gold and tin over nickel to guarantee high conductivity and resistance against oxidation, while phosphor bronze contact material ensures durability and reliability under operational stress.

This connector supports operation in temperatures ranging from -40°C to 105°C, making it suitable for industrial, electronic assembly, telecommunications, and instrumentation applications. Its straight orientation and crimp termination simplify installation and maintain stable connections.

The housing is made of polybutylene terephthalate, contributing to mechanical strength and environmental resistance. The product is ideally used in electronic devices requiring reliable wire-to-board connections.

20 contacts arranged in 2 rows for efficient connection density. Gold and tin plating over nickel enhances connectivity performance. Suitable operating temperature range from -40°C to 105°C. Rated for 1A current and 1kV AC voltage.

Shrouded design ensures polarization and protection. Crimp termination type for secure cable attachment. Phosphor bronze contacts with durable housing materials.

This HARWIN connector series, Archer M50, is a trusted choice for manufacturing, electronics assembly, industrial, and laboratory applications requiring robust and reliable electrical connections. Explore more connectors in the EnvMart Electronics Components category for expanded solutions.
