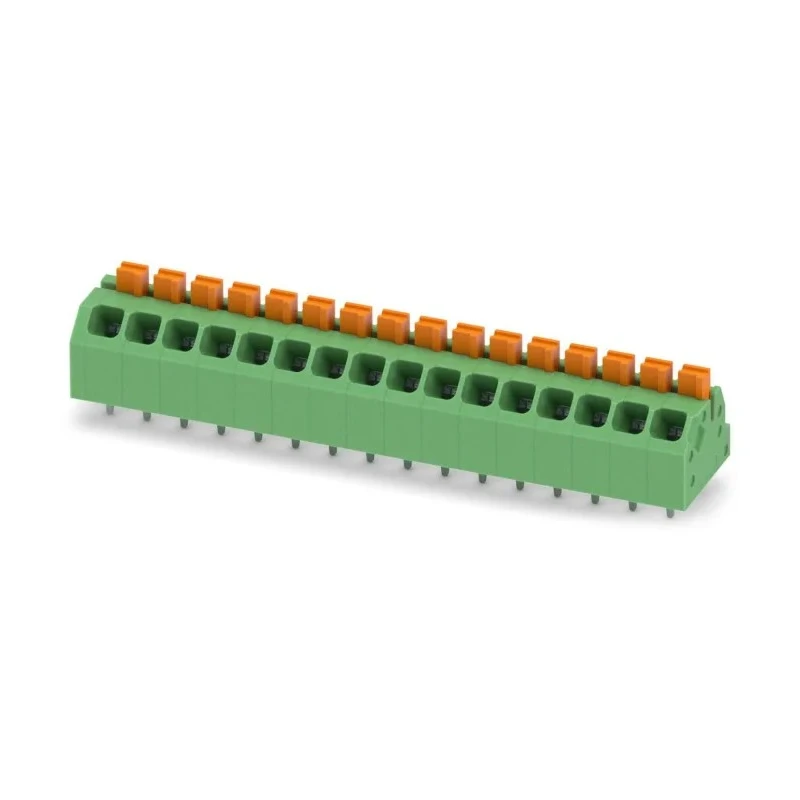

Phoenix Contact 16 Contact Angled Wave Soldering Mount PCB Terminal Block 3.5 mm Pitch 160 V 16A 1862262
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 160V |
| Brand | Phoenix Contact |
| Orientation | Angled |
| Current | 16A |
| Model | 1862262 |
| Mount Type | Wave Soldering Mount |
| Housing Material | Polyamide |
| Series | SPTAF 1/16-3.5-EL |
| Number of Rows | 2 |
| Pitch | 3.5mm |
| Standards/Approvals | EU RoHS, cULus Recognised |
| Number of Contacts | 16 |
| PCB Terminal block, nominal current | 16 A, nom. voltage: 160 V, pitch: 3.5 mm, number of positions: 16, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green |
Key Features
- Supports nominal current of 16 A for robust power handling.
- Features angled wave soldering mount suitable for space-saving PCB design.
- Made with durable green polyamide housing for electrical insulation.
- Includes push-in spring connection with finger-operated release button for tool-free wiring.
- Integrated testing option allows quick and convenient circuit checks.
- Compliant with EU RoHS and cULus standards ensuring environmental and safety adherence.
- Designed and manufactured in Germany ensuring high quality and reliability.
- Conductor to PCB connection direction is 45° for compact installation.
Product Description
Phoenix Contact 1862262 PCB Terminal Block is a professionally engineered angled wave soldering mount connector designed for electronic applications requiring reliable and compact PCB connections. It is rated for a nominal current of 16 A and supports a nominal voltage of 160 V with a precise 3.5 mm pitch across its 16 contact positions.
The terminal block housing is constructed of high-quality polyamide in a green color, offering excellent electrical insulation and mechanical robustness. Featuring a push-in spring connection method, it enables time-saving and tool-free wire connections, with a finger-operated release button for convenient disconnections.
This product is compliant with EU RoHS and cULus certification standards, confirming its suitability for industrial and commercial electronic assemblies, and ensuring safety and environmental regulatory compliance.
The angled 45° conductor to PCB connection orientation optimizes space on densely populated circuit boards. The wave soldering mount design supports automated PCB assembly processes, enhancing manufacturing efficiency.
Integrated with a test option, the terminal block allows quick and reliable testing of electrical circuits during assembly or maintenance. The compact design offers a small component footprint suitable for applications where space is at a premium.
Supports nominal current of 16 A for robust power handling. Angled wave soldering mount for compact installation. Constructed from durable polyamide housing material. Push-in spring connection for tool-free wiring. Finger-operated release button enhances usability.
Integrated test option for convenient circuit testing. EU RoHS and cULus approved for safety and compliance. Manufactured in Germany for high reliability standards.
This terminal block is ideal for use in industrial electronics, power supplies, control systems, and other electronic assemblies requiring compact, reliable PCB interconnections. It fits naturally within the Electronics & Electricals category, under PCB Terminal Blocks at EnvMart where buyers can explore compatible components and related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a nominal current of 16 A, making it suitable for robust power handling applications.
It is rated for a nominal voltage of 160 V, ensuring compatibility with various electronic applications.
The contact pitch is 3.5 mm, which is standard for many PCB applications.
It features a push-in spring connection method, allowing for tool-free wiring and easy disconnection with a finger-operated release button.
This terminal block uses a wave soldering mount, which is suitable for automated PCB assembly processes.
The conductor to PCB connection is angled at 45°, optimizing space on densely populated circuit boards.
The housing is constructed from durable green polyamide, providing excellent electrical insulation and mechanical robustness.
It is compliant with EU RoHS and cULus standards, ensuring safety and environmental adherence.
It is manufactured in Germany, ensuring high quality and reliability standards.
This model features 16 contact positions, allowing for multiple connections on a single block.
It is ideal for use in industrial electronics, power supplies, control systems, and other electronic assemblies requiring compact PCB interconnections.
This model is part of the SPTAF 1/16-3.5-EL series, which is designed for specific electronic applications.
