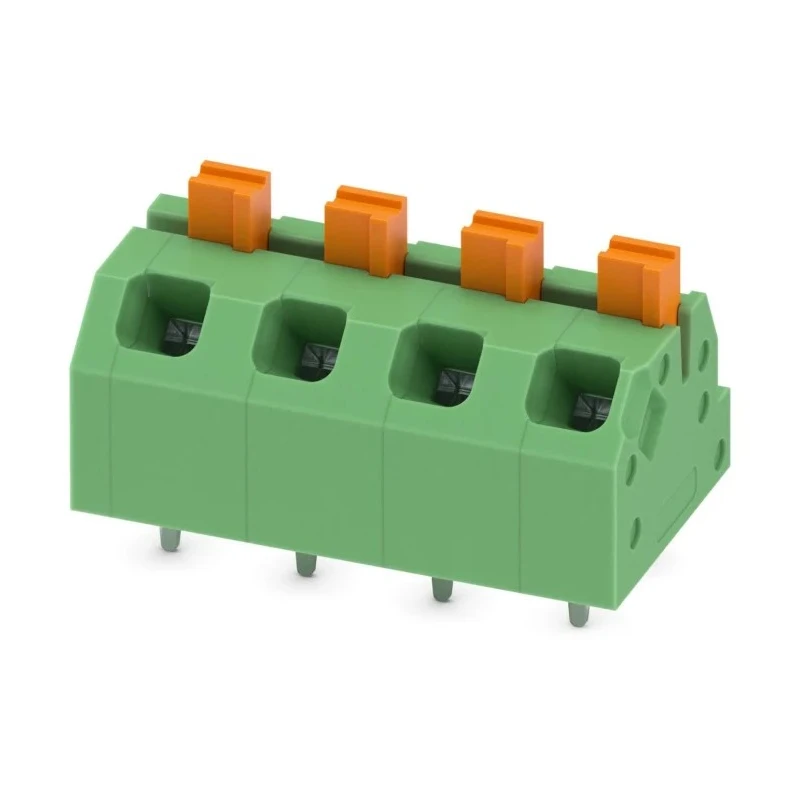

Phoenix Contact Angled Wave Soldering Mount PCB Terminal Block, 4 Contacts, 5 mm Pitch, 2 Row 1862437
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Orientation | Angled |
| Current | 16A |
| Model | 1862437 |
| Mount Type | Wave Soldering Mount |
| Housing Material | Polyamide |
| Series | SPTAF 1/ 4-5.0-EL |
| Number of Rows | 2 |
| Pitch | 5mm |
| Standards/Approvals | cULus Recognised, EU RoHS |
| Number of Contacts | 4 |
| PCB Terminal block, nominal current | 16 A, nom. voltage: 320 V, pitch: 5 mm, number of positions: 4, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green |
Key Features
- Features 4 contact points with a 5 mm pitch spacing.
- Constructed with durable polyamide housing material for long-term use.
- Supports a nominal current of 16 A and voltage rating of 320 V.
- Equipped with push-in spring connection method eliminating the need for tools.
- Offers angled conductor/PCB connection direction at 45 degrees for space optimization.
- Comes with finger-operated release buttons allowing convenient wire release.
- Includes integrated test options for quick and easy electrical testing.
- Certified with cULus Recognition and EU RoHS compliance ensuring quality and safety.
Product Description
Phoenix Contact 1862437 PCB terminal block is an angled wave soldering mount component designed for electronic applications requiring robust and compact PCB connections. This 4-contact terminal block features a 5 mm pitch and 2 rows, ideal for precise component placement on printed circuit boards.
The housing is made of polyamide, providing excellent durability and electrical insulation. It supports a nominal current of 16 A and a nominal voltage of 320 V, suitable for a wide range of electronic equipment.
Push-in spring connection technology enables tool-free installation and maintenance, saving time during assembly. The 45-degree angled connection direction optimizes space on densely populated PCBs.
Finger-operated release buttons facilitate fast and convenient wire removal, while an integrated test option allows easy verification of electrical connections without disassembly.
Mounting is secured by wave soldering, ensuring stable mechanical and electrical connections on the PCB. The product complies with cULus recognized standards and meets EU RoHS directive, affirming adherence to safety and environmental regulations.
Manufactured in Germany, this terminal block guarantees high-quality production standards suitable for industrial, electronics manufacturing, automation, and control system applications.
Features 4 contact points with a 5 mm pitch spacing. Constructed with durable polyamide housing for long-term operation. Supports nominal current of 16 A and voltage rating of 320 V. Employs push-in spring connection method for tool-free wiring.
45° angled conductor/PCB connection optimizes PCB space utilization. Finger-operated release buttons allow quick wire removal. Integrated test option facilitates easy electrical testing. Mounting by wave soldering ensures strong connection to PCB.
Certified cULus Recognised and EU RoHS compliant for safety and environment. Manufactured in Germany ensuring premium quality. Explore more PCB Terminal Block solutions and electronic components on EnvMart for various industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a nominal current of 16 A and a voltage rating of 320 V.
It features a pitch of 5 mm and has 4 contact points.
It employs a push-in spring connection method, allowing for tool-free wiring.
The mounting type is wave soldering, ensuring a stable connection to the PCB.
The housing is constructed from polyamide, providing durability and electrical insulation.
It has a 45-degree angled conductor/PCB connection direction, optimizing space utilization on PCBs.
Yes, it includes integrated test options for easy verification of electrical connections without disassembly.
It is certified with cULus Recognition and meets EU RoHS compliance for safety and environmental regulations.
It is manufactured in Germany, ensuring high production standards.
This model features 2 rows for contact placement.
It belongs to the SPTAF 1/ 4-5.0-EL series.
The terminal block is green in color.
