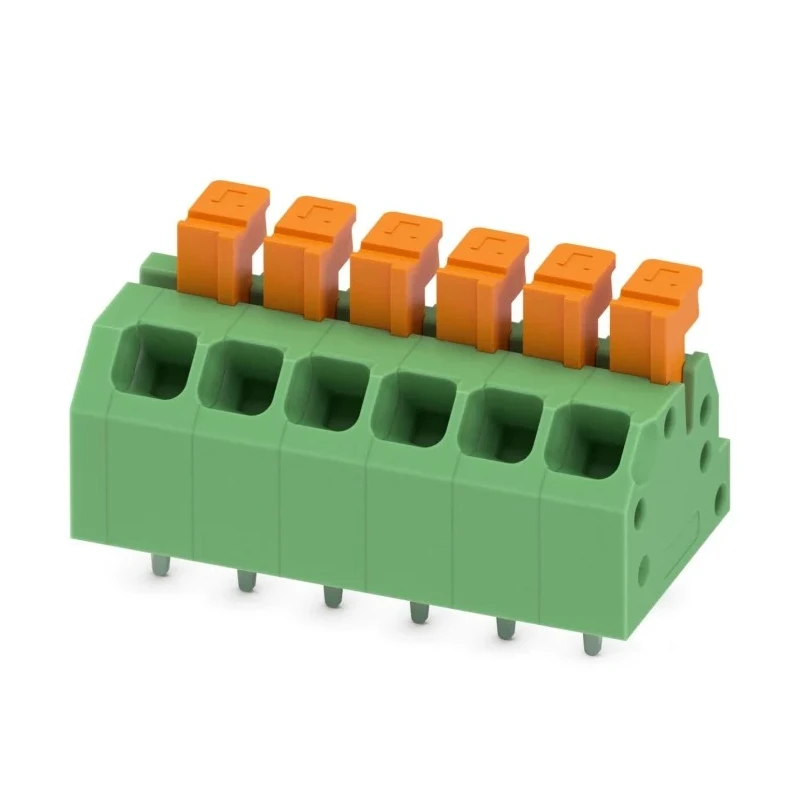

Phoenix Contact Angled PCB Terminal Block 6 Contact 3.5 mm Pitch 2 Row 160 V 13.5 A 1864325
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 160V |
| Brand | Phoenix Contact |
| Orientation | Angled |
| Current | 13.5A |
| Model | 1864325 |
| Housing Material | Polyamide |
| Series | SPTAF 1/ 6-3.5-LL |
| Number of Rows | 2 |
| Pitch | 3.5mm |
| Standards/Approvals | UL Recognised, EU RoHS, cULus Recognised |
| Number of Contacts | 6 |
| PCB Terminal block, nominal current | 13.5 A, nom. voltage: 160 V, pitch: 3.5 mm, number of positions: 6, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green |
Key Features
- Designed for nominal current of 13.5 A and maximum voltage of 160 V.
- Push-in spring connection method enables quick and tool-free wiring.
- Compact green polyamide housing suitable for space-constrained applications.
- 45° conductor to PCB connection orientation for angled wiring needs.
- Mounting via wave soldering ensures secure component placement on PCBs.
- UL Recognised, EU RoHS compliant, and cULus Recognised standards ensure quality and safety.
- Integrated test option facilitates convenient circuit testing.
- Finger-operated and fixable release button allows easy wire release and reconfiguration.
Product Description
Phoenix Contact 1864325 is an angled PCB terminal block designed for electrical and electronic component assemblies. This terminal block has 6 contacts arranged in 2 rows with a 3.5 mm pitch, providing reliable and space-saving interconnection solutions for printed circuit boards.
The device supports a nominal current of 13.5 A and a nominal voltage of 160 V, making it suitable for a variety of industrial and electronic applications requiring moderate power and voltage handling capabilities.
The housing is constructed from green polyamide material, offering durability and insulation in compact form factors. The angled design enables a 45° conductor to PCB connection direction, ideal for layouts needing an angled approach to wiring.
Connection is achieved using a push-in spring connection system which is time-saving and requires no additional tools, contributing to reduced assembly time. Mounting is accomplished by wave soldering, providing a robust mechanical and electrical connection to the PCB.
Nominal current rating of 13.5 amperes ensures efficient current carrying capacity. Voltage rating of 160 volts provides safety margin for typical applications. Polyamide housing material offers excellent insulation and mechanical strength.
Two-row configuration with six contacts allows efficient PCB wiring in compact spaces. Push-in spring connection enables quick, tool-free wiring and secure contact retention. Angled conductor to PCB orientation facilitates flexible PCB design with 45° wiring.
UL Recognised and RoHS compliant components assure adherence to industry standards. Integrated test points enable convenient electrical testing without wire removal. Finger-operated release button provides easy wire release for maintenance or redesign.
Widely used in electronics manufacturing, industrial control systems, and power distribution boards, this terminal block as part of the SPTAF 1/ 6-3.5-LL series delivers reliable and efficient connections under demanding environments.
Originating from Germany, Phoenix Contact is a globally trusted brand known for quality electrical connectivity solutions suited for laboratory, industrial automation, and electrical engineering applications.
Explore the complete range of PCB Terminal Blocks at EnvMart for professional-grade electronic assembly components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block has a nominal current rating of 13.5 A and a nominal voltage rating of 160 V.
The contacts are arranged in a 2-row configuration with a pitch of 3.5 mm, totaling 6 contacts.
It utilizes a push-in spring connection method, allowing for quick and tool-free wiring.
Mounting is accomplished through wave soldering, ensuring a secure connection to the PCB.
The housing is constructed from green polyamide, which provides insulation and mechanical strength.
The conductor connects to the PCB at a 45° angle, facilitating angled wiring needs.
It is UL Recognised, cULus Recognised, and complies with EU RoHS standards.
Yes, it includes integrated test points for convenient electrical testing without wire removal.
This terminal block originates from Germany.
It belongs to the SPTAF 1/ 6-3.5-LL series.
The finger-operated and fixable release button allows for easy wire release and reconfiguration.
It is widely used in electronics manufacturing, industrial control systems, and power distribution boards.
