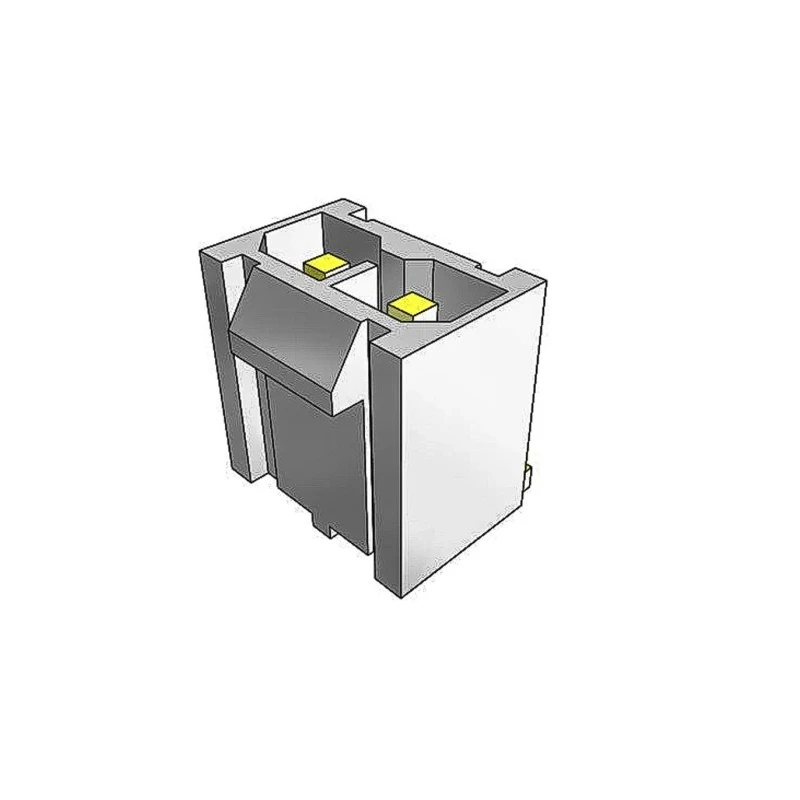

Samtec ISDF Female Crimp Connector Housing 1.27 mm Pitch 10 Way 2 Row Straight ISDF-05-D-M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Length | 10.03mm |
| Model | ISDF-05-D-M |
| Width | 6.35mm |
| Mount Type | Cable |
| Housing Material | Liquid Crystal Polymer |
| Series | ISDF |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| For Use With | FFC Connectors, IDC Connectors, TFM Connectors |
| Number of Contacts | 10 |
| Connector Gender | Female |
Key Features
- This crimp connector housing is designed for reliable electrical connections.
- The housing features a 1.27 mm pitch suitable for fine pitch applications.
- It supports 10 contacts arranged in 2 rows for compact connectivity.
- Constructed from Liquid Crystal Polymer for high durability and stability.
- Compatible with FFC, IDC, and TFM connectors.
- Features a straight orientation for ease of cable mounting.
- Series ISDF ensures compatible mating with corresponding connector elements.
- Polarized system supports 28 and 30 AWG discrete wires with secure mechanical locking.
Product Description
Samtec ISDF-05-D-M Female Crimp Connector Housing is a precision-engineered electrical connector housing designed to provide reliable and secure wire connections. Featuring a pitch of 1.27 mm, this crimp connector housing supports 10 contacts arranged in a 2-row straight configuration, perfect for compact electronic assemblies demanding durability and precision.
The housing is molded from Liquid Crystal Polymer, offering outstanding mechanical strength, thermal stability, and resilience suitable for harsh industrial environments. Its straight orientation and cable mount type facilitate easy integration with flat flexible cables (FFC), insulated displacement connectors (IDC), and TFM connectors, providing flexibility across a wide range of wiring applications.
With dimensions of 10.03 mm in length and 6.35 mm in width, the connector housing maintains a compact form factor that suits space-constrained PCB layouts. The ISDF series is notable for its polarized single and double row systems, assuring proper mating and preventing incorrect insertion. This housing is rated for 28 and 30 AWG discrete wires, making it ideal for high-density wiring harnesses.
Commonly used in electronic components, power systems, and industrial equipment, the Samtec ISDF-05-D-M connector housing ensures robust connections essential for signal integrity and electrical performance. It is recognized for its quality and adherence to industrial standards, although no specific certifications are indicated.
This Connector Housing provides secure and reliable female crimp connections. Manufactured from durable Liquid Crystal Polymer for high performance. Designed for 10 contacts in a polarized 2-row straight configuration. Compatible with FFC, IDC, and TFM connector types.
Ideal for compact electronic and industrial wiring applications. Explore more high-quality electronic components and connectors at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this connector housing is 1.27 mm, making it suitable for fine pitch applications.
This model supports 10 contacts arranged in a 2-row configuration.
The housing is constructed from Liquid Crystal Polymer, which provides high durability and stability.
It is compatible with Flat Flexible Cables (FFC), Insulated Displacement Connectors (IDC), and TFM connectors.
The dimensions are 10.03 mm in length and 6.35 mm in width.
This connector housing features a straight orientation, facilitating easy cable mounting.
It is rated for 28 and 30 AWG discrete wires, ensuring secure connections.
This model belongs to the ISDF series, which features a polarized system for proper mating.
The mount type is cable, allowing for flexible integration in various applications.
The connector gender is female, designed for secure crimp connections.
The connector housing is manufactured in India.
It is commonly used in electronic components, power systems, and industrial equipment for robust connections.
