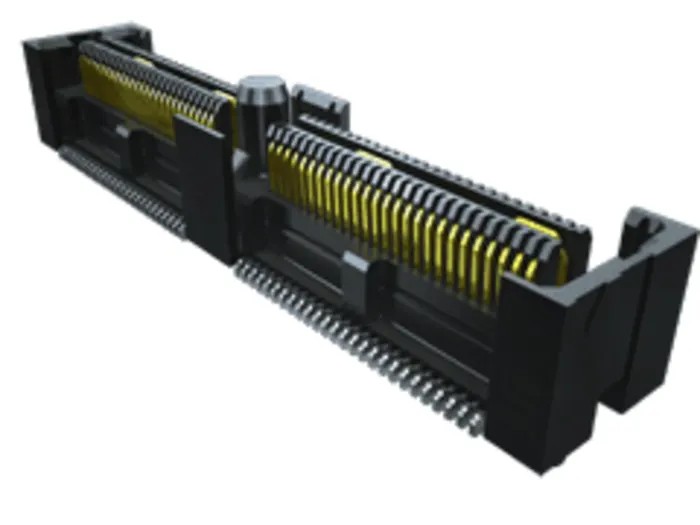

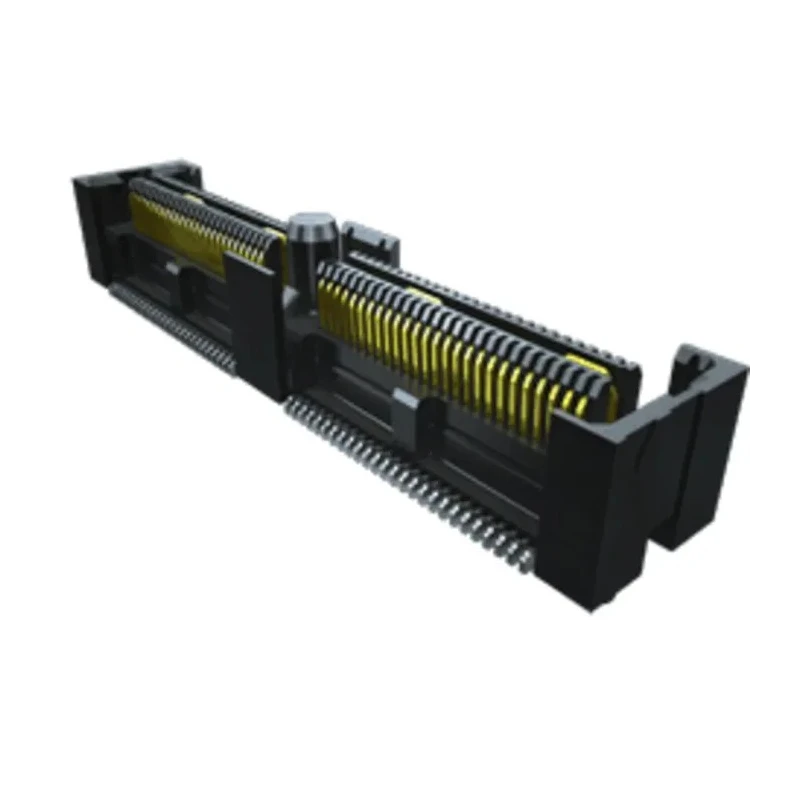

Samtec QFS Series Straight Surface PCB Socket 32-Contact 2 Row 0.635 mm Pitch Solder QFS-016-04.25-L-D-DP-A

Name: Samtec QFS Series Straight Surface PCB Socket 32-Contact 2 Row 0.635 mm Pitch Solder QFS-016-04.25-L-D-DP-A
Brand: Samtec
SKU: 147904
Price: 7.24 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	300V
Brand	Samtec
Orientation	Straight
Current	15.7A
Model	QFS-016-04.25-L-D-DP-A
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	QFS
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.635mm
Contact Plating	Gold
Number of Contacts	32
Connector System	Board-to-Board
Stacking Height	10mm
Row Pitch	6.48mm

Key Features

Designed for board-to-board connection with straight orientation.
Supports operating voltage up to 300V and current rating of 15.7A.
Constructed with liquid crystal polymer housing for durability.
Gold plated bronze contacts provide excellent conductivity and corrosion resistance.
Stacking height is 10mm with 6.48mm row pitch for compact PCB layouts.
Operates reliably in temperatures ranging from -55°C to 125°C.
Suitable for high-speed applications up to 9.5 GHz / 19 Gbps differential pair.
Ideal for industrial, electronic manufacturing, and board assembly uses.

Product Description

Samtec QFS-016-04.25-L-D-DP-A is a straight surface mounting PCB socket designed with 32 contacts arranged in 2 rows and a pitch of 0.635 mm to ensure precise board-to-board connections. The socket features a robust liquid crystal polymer housing providing high mechanical strength and excellent heat resistance, suitable for demanding electronic applications.

This socket is capable of handling operating voltages up to 300V and currents up to 15.7A, making it suitable for a wide range of electronic circuit requirements. The bronze contacts plated with gold ensure reliable electrical performance and durability against corrosion.

The design supports a stacking height of 10 mm and a row pitch of 6.48 mm, enabling compact and efficient PCB layouts. Operating temperature ranges from -55°C to 125°C, allowing for reliable performance under harsh environmental conditions in industrial and commercial applications.

With high-speed capabilities up to 9.5 GHz (19 Gbps differential pair), this socket supports advanced data communications and signal integrity, making it an excellent choice for telecommunications, computing, and consumer electronics industries.

Designed for board-to-board connection with straight orientation. Supports operating voltage up to 300V and current rating of 15.7A. Constructed with liquid crystal polymer housing for durability. Gold plated bronze contacts provide excellent conductivity and corrosion resistance.

Stacking height is 10mm with 6.48mm row pitch for compact PCB layouts. Operates reliably in temperatures ranging from -55°C to 125°C. Suitable for high-speed applications up to 9.5 GHz / 19 Gbps differential pair. Ideal for industrial, electronic manufacturing, and board assembly uses.

This Samtec QFS Series PCB Socket is a reliable component for electronics manufacturing, PCB assembly, prototyping, and repair. It fits applications requiring high-density interconnections and strict performance standards. Browse more PCB connectors and sockets in the EnvMart catalog for your electronic design needs.
