Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter SOP to DIP W9509RC

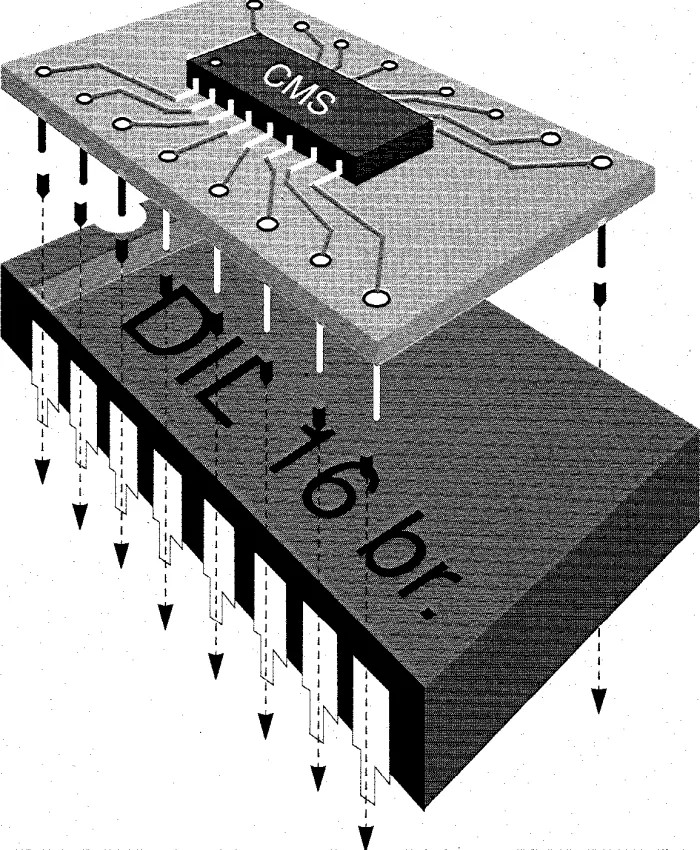

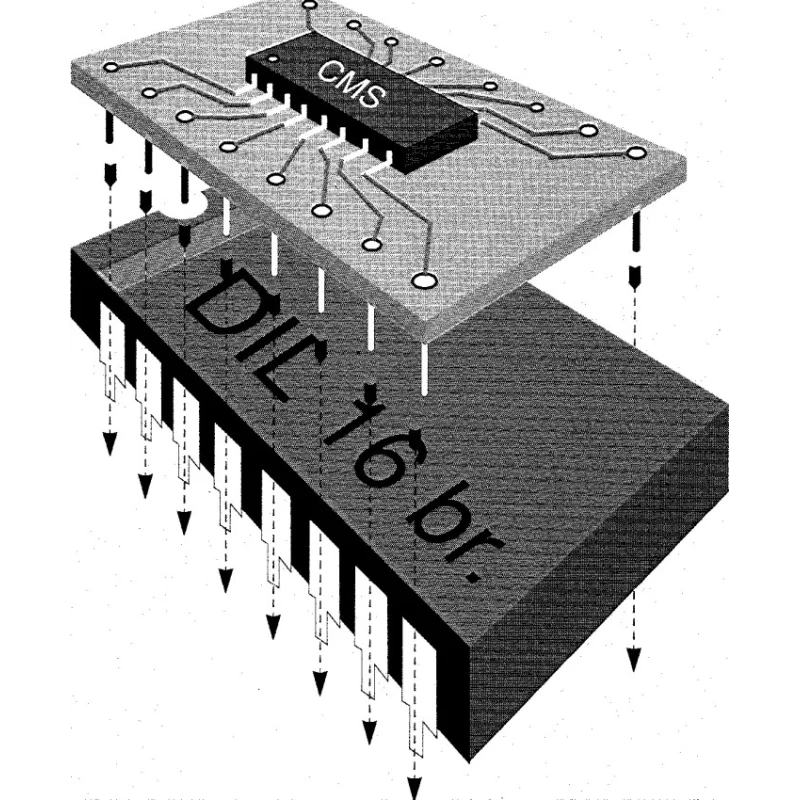

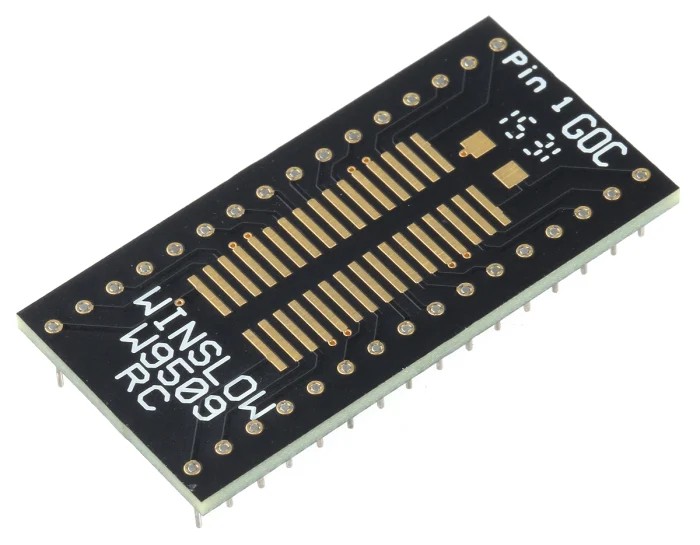

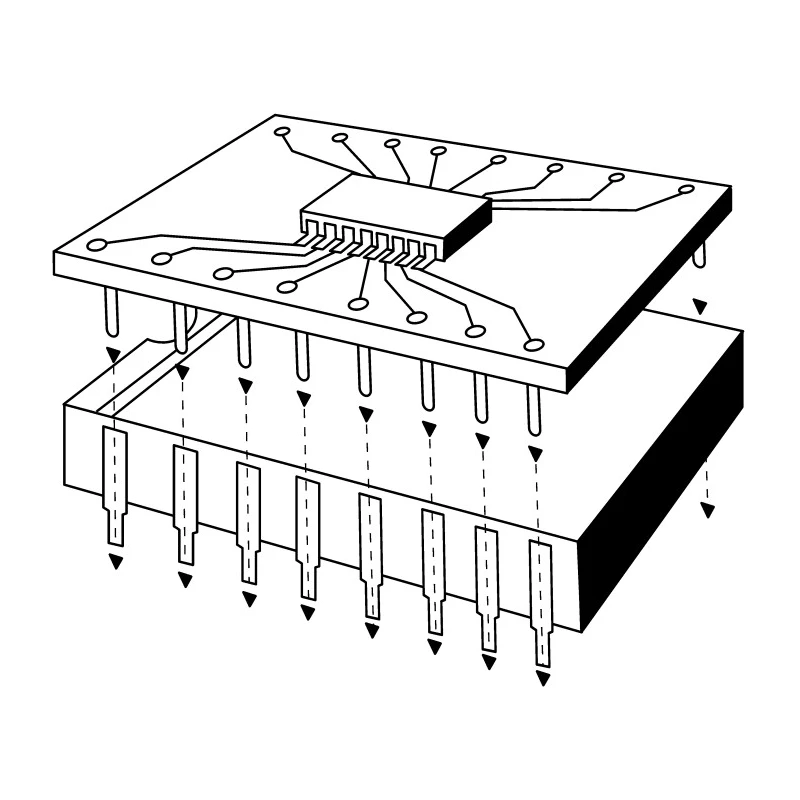

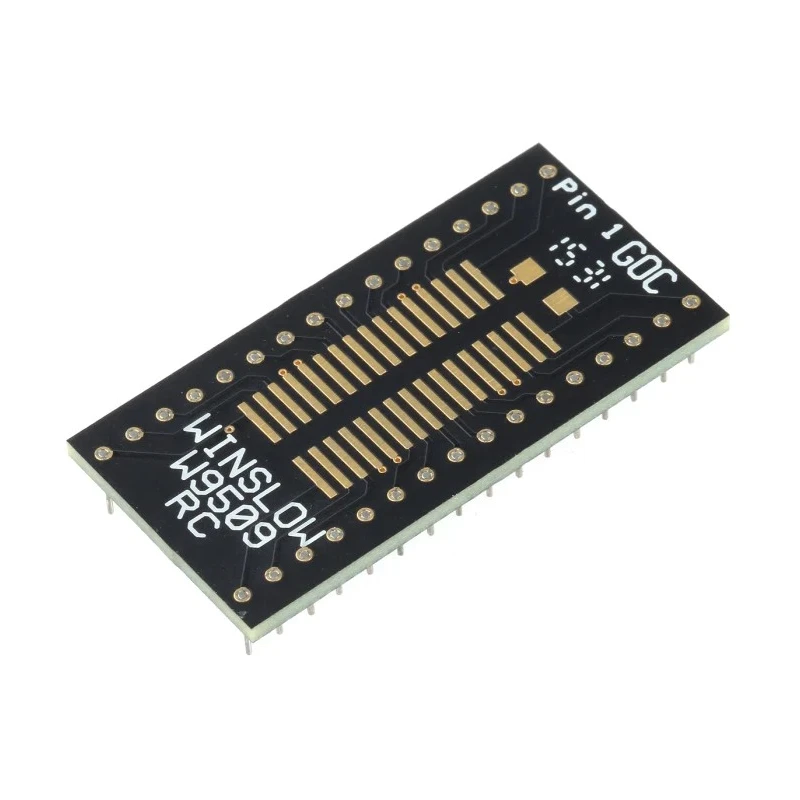

Winslow W9509RC is an IC socket adapter designed to convert Small Outline IC packages (SOIC) to Dual In-Line Package (DIP) formats. This model features a 2.54 mm pitch that is standard for DIP components and allows seamless adaptation between component types during PCB assembly.

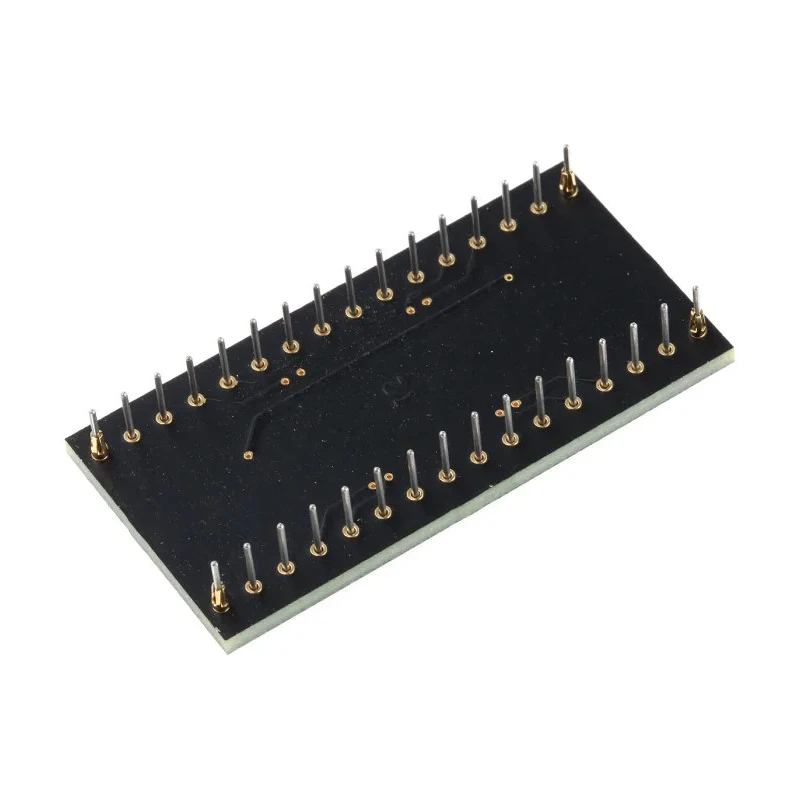

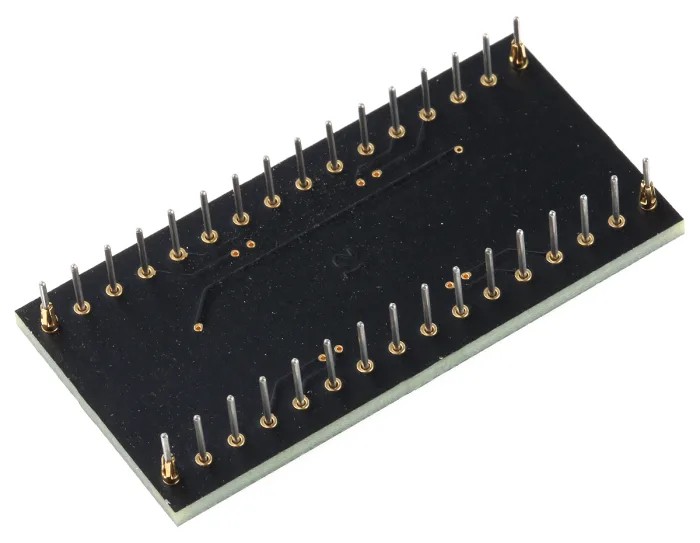

The adapter has 32 contacts on both the SOIC side (female) and DIP side (male), with contacts plated in gold over nickel to ensure excellent electrical conductivity and corrosion resistance. The contacts are made from brass, providing strength and durability, while the housing is crafted from high-quality FR4 epoxy fibreglass, a standard in PCB substrates that offers mechanical strength and thermal stability.

Its straight orientation and through-hole mount type facilitate easy and reliable installation on printed circuit boards. The product helps reduce engineering design costs and complexity by enabling the use of prototype boards for different IC package styles without redesigning PCB layouts.

This adapter is especially useful for industrial electronics manufacturing, laboratory prototype development, and educational electronics projects where flexibility in IC package compatibility is required.

This adapter converts SOIC packages to DIP format with 2.54 mm pitch. 32 contacts for both SOP female and DIP male connections. Gold over nickel contact plating for reliable conductivity. Contact material is brass with FR4 epoxy fibreglass housing.

Straight orientation with through-hole mount type. Facilitates cost-effective PCB design and prototyping. Manufactured in the United Kingdom. Browse EnvMart's extensive range of IC Socket Adapters and related electronic components to find the right solution for your project or industrial application.
