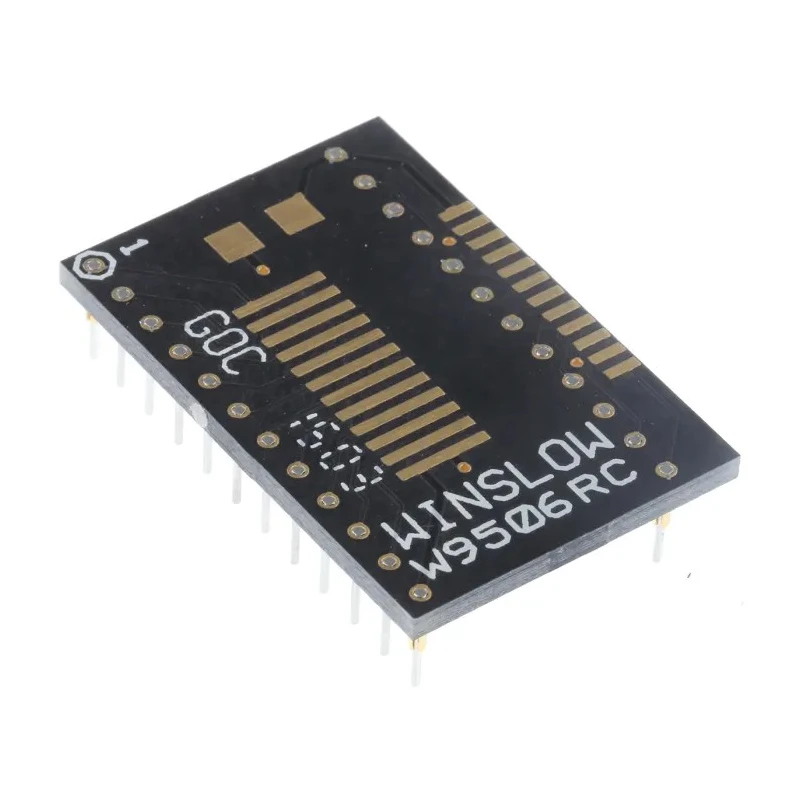

Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter SOP to DIP W9506RC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Winslow |
| Orientation | Straight |
| Model | W9506RC |
| Mount Type | Through Hole |
| Housing Material | FR4 |
| Contact Material | Brass |
| Series | SOP-DIP Iss5 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Connection Gender A | Female |
| Number of Contacts A | 24 |
| Connection Gender B | Male |
| PCB | Epoxy Fibreglass FR4 |
| Connection A | SOP |
| Connection B | DIP |
Key Features

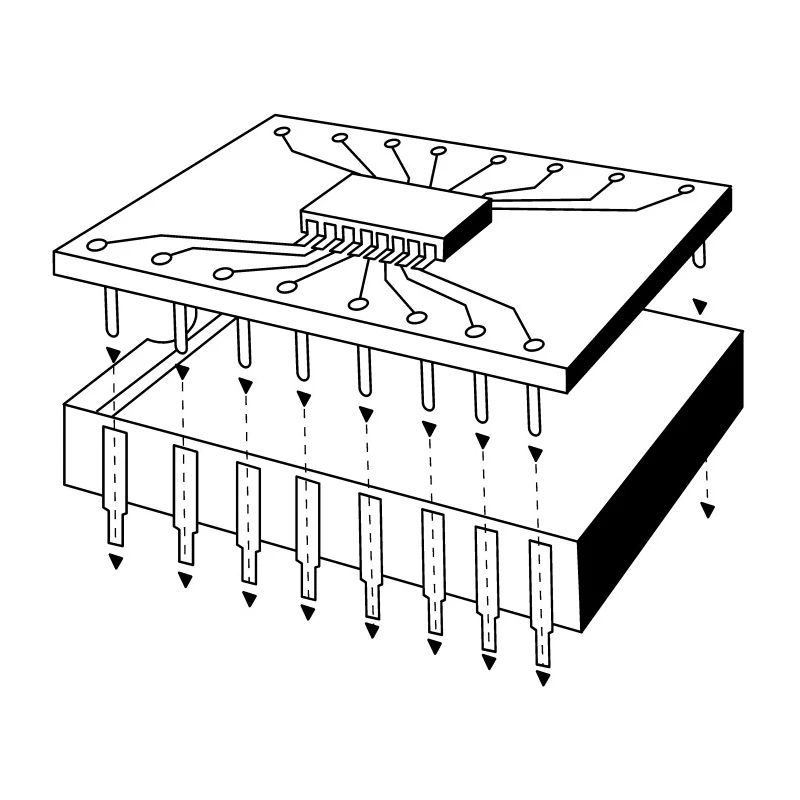

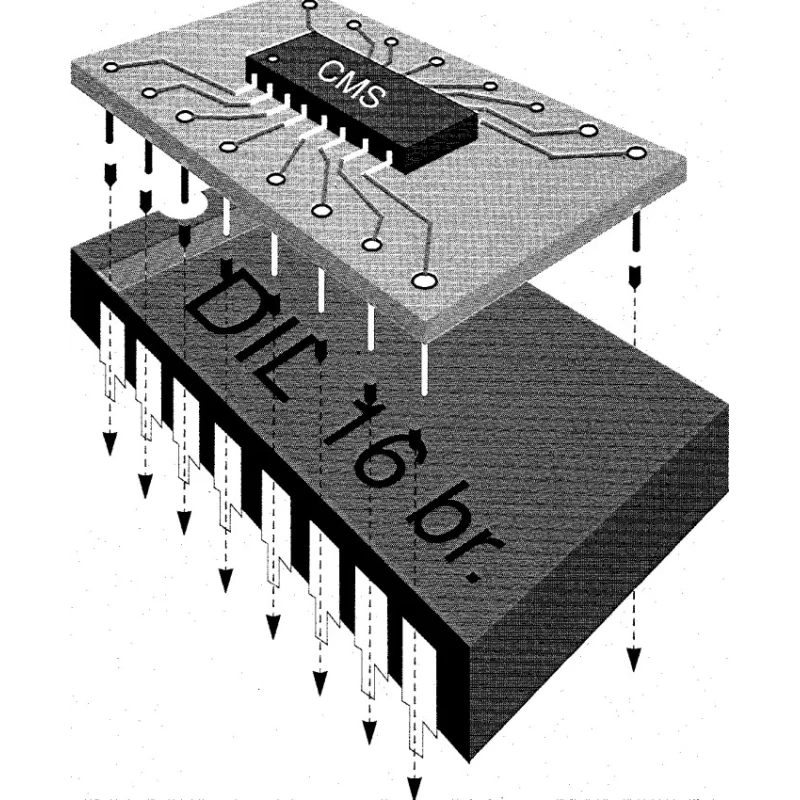

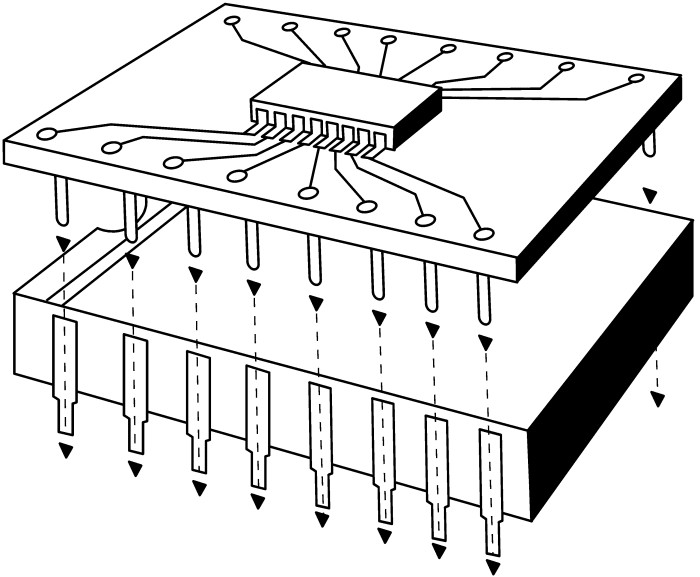

- The adapter converts Small Outline ICs (SOIC) to Dual In-line Package (DIP) format.
- Features 24 female contacts on the SOP side and 24 male contacts on the DIP side.
- Contact plating consists of gold over nickel ensuring reliable conductivity.
- Manufactured using brass contacts and an FR4 epoxy fibreglass housing for durability.
- The straight orientation and through hole mount type provide easy PCB integration.
- Ideal for prototyping and redesigning circuits without new PCB manufacturing.
- Widely used in electronics manufacturing, testing, and development applications.
- Made in the United Kingdom with high-quality industrial standards.
Product Description
Winslow W9506RC is a high-quality straight through hole mount IC socket adapter designed for converting Small Outline Package (SOP) integrated circuits to a Dual In-line Package (DIP) format with a 2.54 mm pitch.
This adapter has 24 female contacts on the SOP side and 24 male contacts on the DIP side, facilitating seamless interfacing between different package types on printed circuit boards (PCBs).
The contacts are plated with gold over nickel for excellent corrosion resistance and reliable electrical connectivity. Brass is used as the base contact material, while the housing is constructed from durable FR4 epoxy fibreglass ensuring mechanical stability and high insulation properties.
The straight orientation of the contacts combined with the through hole mount design makes it well suited for robust soldering on standard PCBs. It provides engineers and technicians with a flexible solution to adapt or test electronics without redesigning or fabricating new PCB layouts.
This adapter is commonly employed in electronics development, prototyping, manufacturing, and laboratory environments where package compatibility adjustments are frequently required. The precision 2.54 mm pitch accommodates industry-standard DIP socket spacing, ensuring wide usability.
The product is manufactured in the United Kingdom, conforming to stringent quality control and industrial standards, and is RoHS compliant. The adapter converts Small Outline ICs (SOIC) to DIP package format. Provides 24 female SOP contacts and 24 male DIP contacts.
Contact plating is gold over nickel for durability and conductivity. Housing made of FR4 epoxy fibreglass with brass contacts. Straight orientation and through hole mount style for easy PCB integration. Ideal for prototyping, testing, and electronics development.
Manufactured in the United Kingdom with high quality standards.
EnvMart offers a comprehensive selection of IC Socket Adapters and electronic components designed for industrial electronics, laboratory use, and manufacturing processes. Explore the extensive range to find compatible solutions for your project or production requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the Winslow W9506RC IC socket adapter is 2.54 mm.
This model features 24 female contacts on the SOP side and 24 male contacts on the DIP side.
The contacts are made of brass and are plated with gold over nickel, while the housing is constructed from FR4 epoxy fibreglass.
It uses a through hole mount type, which allows for easy integration onto printed circuit boards (PCBs).
The contacts of the Winslow W9506RC are oriented straight, facilitating straightforward PCB soldering.
This adapter is manufactured in the United Kingdom, adhering to high-quality industrial standards.
It is primarily used for converting Small Outline ICs (SOIC) to Dual In-line Package (DIP) format, making it ideal for prototyping and testing.
Yes, the Winslow W9506RC IC socket adapter is RoHS compliant.
The series designation of this adapter is SOP-DIP Iss5.
It is suitable for electronics development, prototyping, manufacturing, and laboratory applications where package compatibility adjustments are needed.
The connection gender for the SOP side is female, while the DIP side is male.
The contacts are plated with gold over nickel, providing excellent corrosion resistance and reliable electrical connectivity.
